Alternator Brush: Testing and Inspection
Alternator Brush Inspection:
1.
Remove the end cover, then take out the
brush holder by removing its two screws.
2.

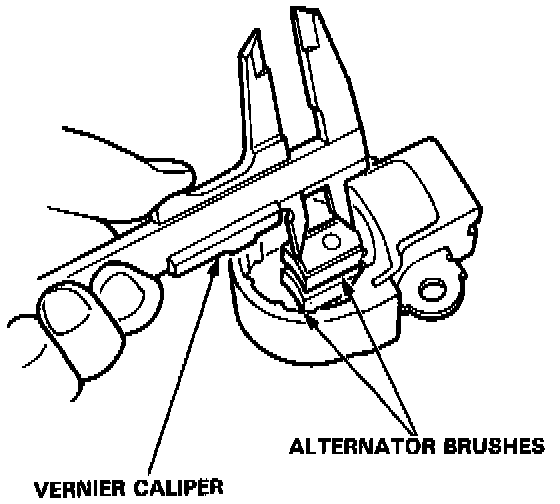

Measure the length of the brushes with a vernier caliper.
Alternator Brush Length: Standard: 10.5 mm (0.41 in)
Service Limit: 1.5 mm (0.06 in)
NOTE: If the brushes are less than the service limit, replace the
alternator brush assembly.
