Radiator: Service and Repair

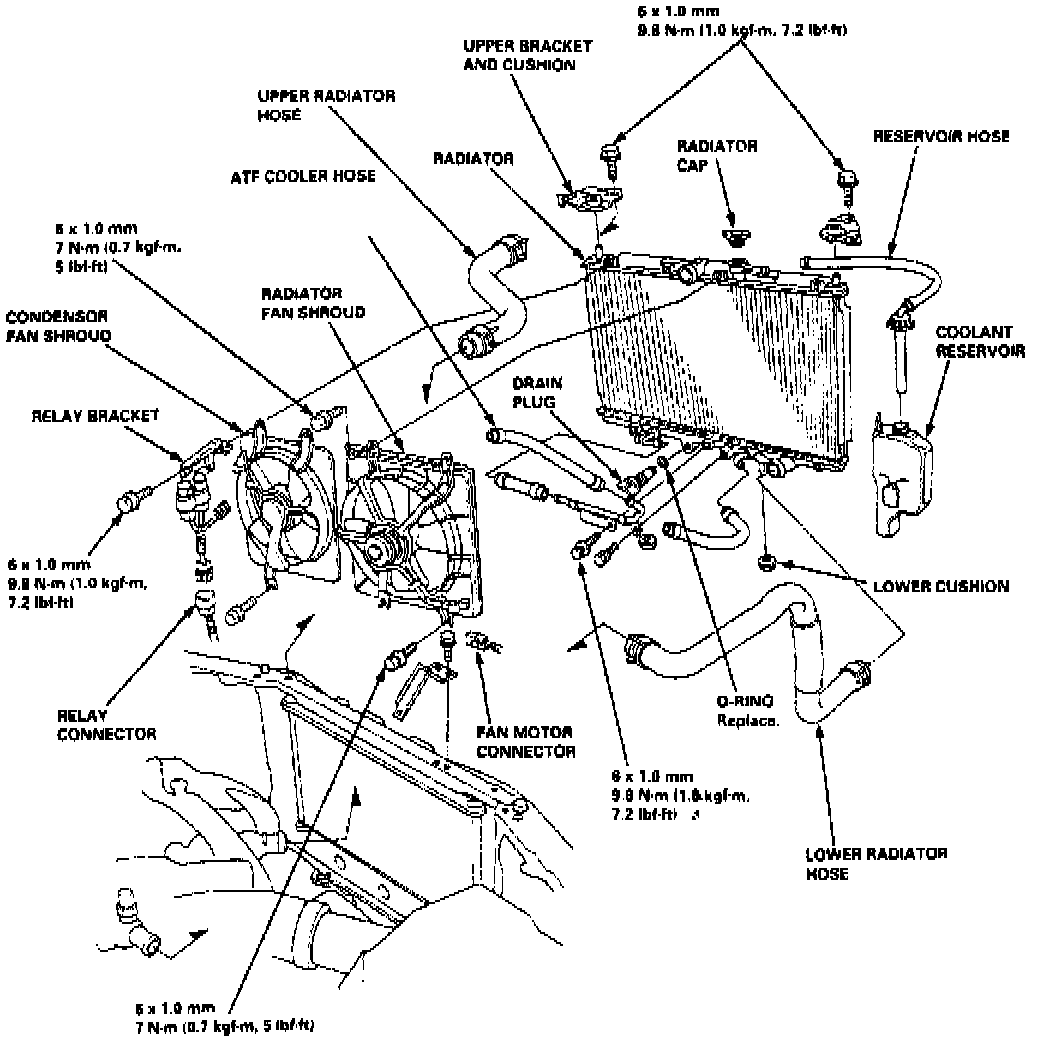

Fig. 77 Exploded View Of Radiator Assembly:
1.
Drain engine coolant, then
radiator hoses and ATF cooler hoses,
Fig. 77. 2.
Disconnect fan motor electrical connections, then remove radiator upper brackets.
3.
Pull up and remove radiator, then remove fan shroud assemblies and other parts as necessary.
4.
Reverse procedure to install.
