Blower Motor: Service and Repair

CAUTION:
- All SRS electrical wiring harnesses are covered with yellow insulation.
- Before you disconnect any part of the SRS wire harness, connect the short connectors.
- Replace the entire affected SRS harness assembly if it has an open circuit or damaged wiring.







BLOWER MOTOR REPLACEMENT

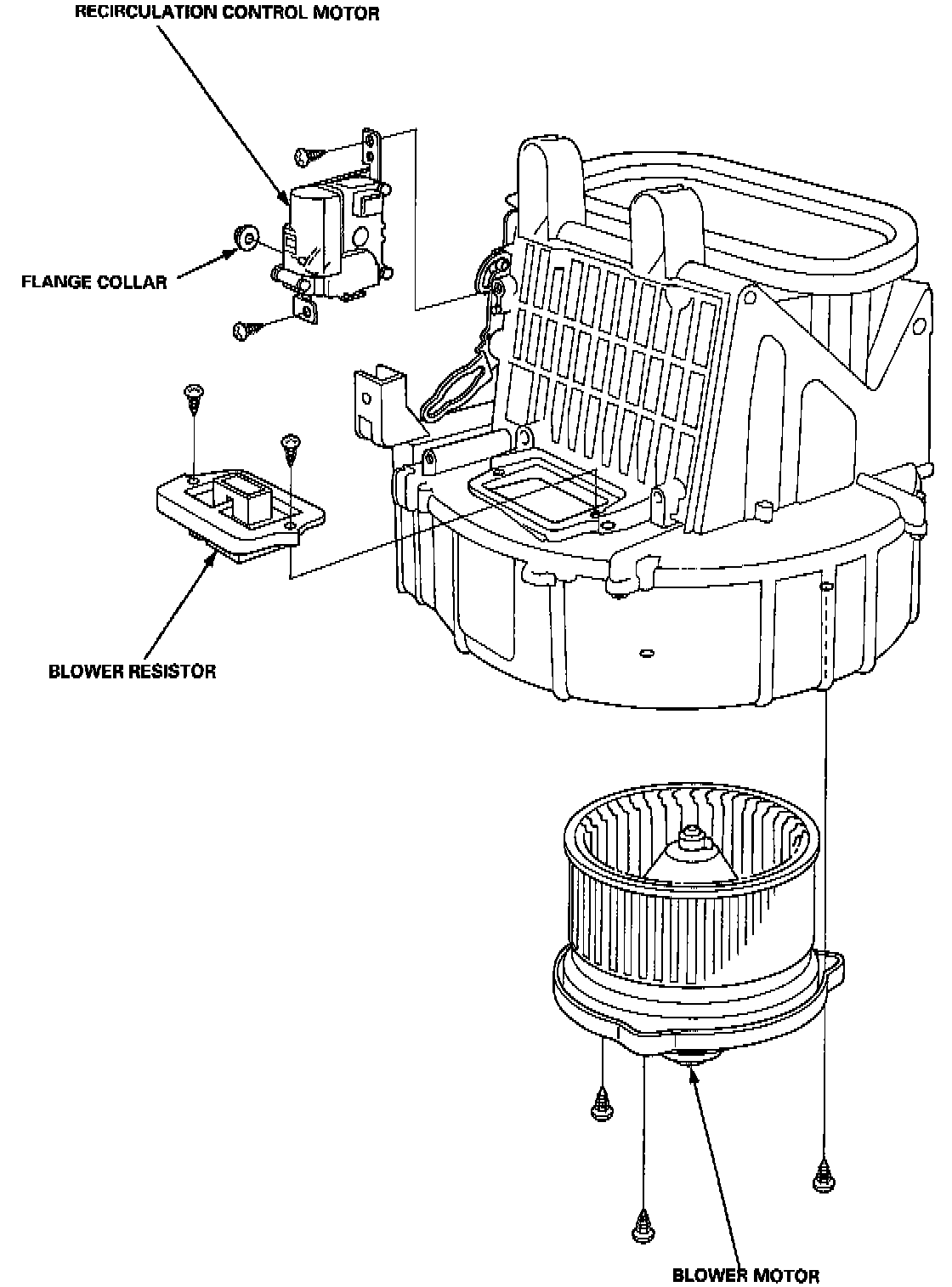

The blower motor, recirculation control motor and blower resistor can be replaced without removing the blower unit. Disconnect the connector from the blower motor, remove three mounting screws, remove blower motor. Reverse steps to install.
