Condenser Fan Diode: Testing and Inspection
NOTE: The diode is designed to pass current in one direction while blocking it in the opposite direction. Use an analog ohmmeter or a digital ohmmeter equipped with a diode tester.

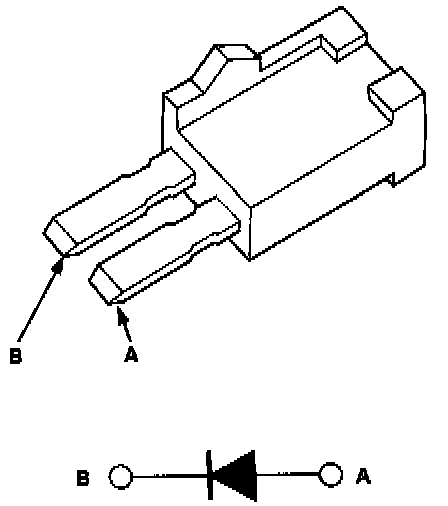

Check for current flow in both directions between the A and B terminals; there should be current flow in only one direction.
