Clutch Switch: Testing and Inspection
1.

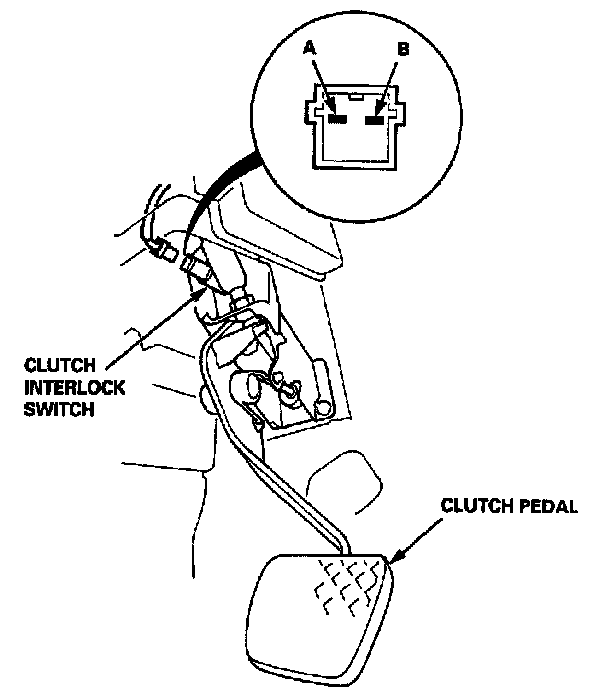

Remove the dashboard lower cover and knee bolster, then disconnect the 2-P connector from the clutch interlock switch.
2.

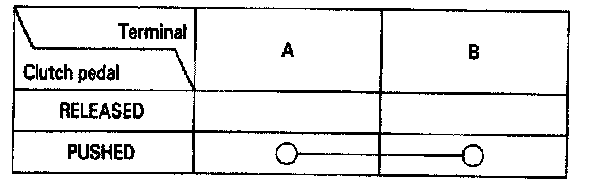

Check for continuity between the terminals according to the table.
3.
If necessary, replace the switch or adjust the switch position.
