Accumulator: Service and Repair

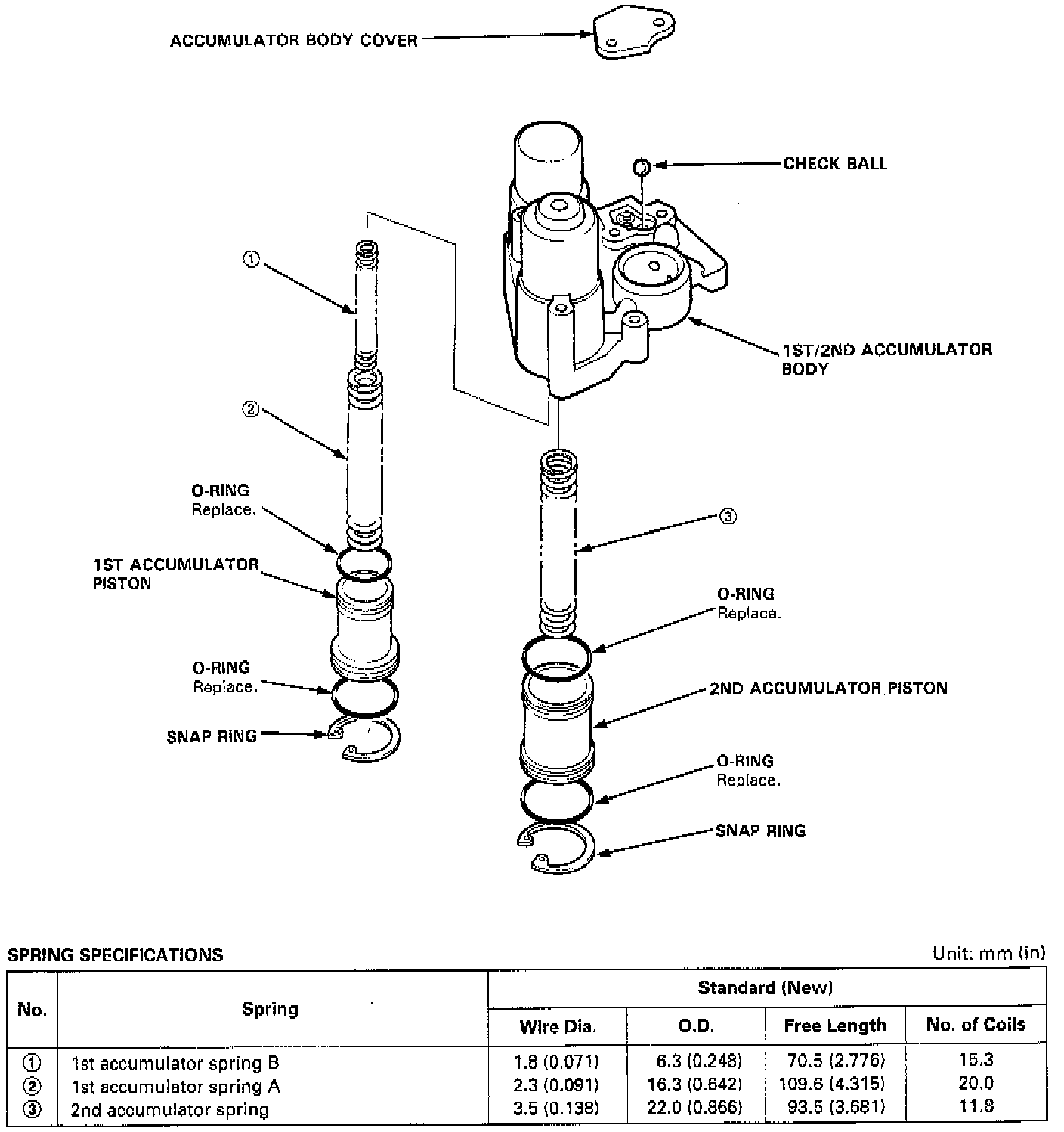

1ST/2ND ACCUMULATOR BODY NOTE: 1st/2nd accumulator body is part of valve body, see valve body for more information
Service and Repair NOTE: -
Clean all part thoroughly in solvent or carburetor cleaner, and dry them with compressed air. Blow out ail passages.
-
Coat all parts with ATF during assembly.
CAUTION: Do not use a magnet to remove the check ball; it may magnetize the ball.
