Fluid Line/Hose: Service and Repair

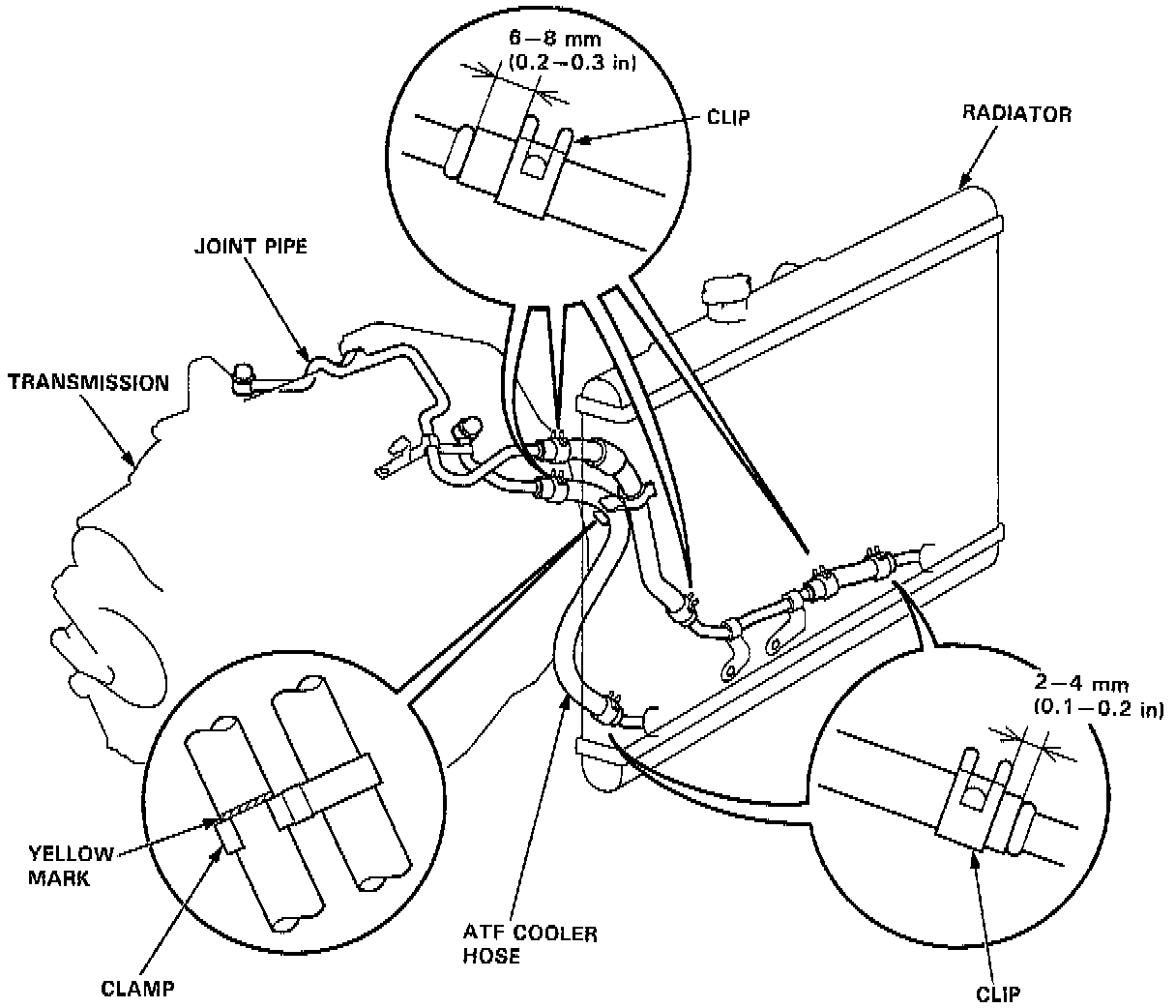

1. Connect the ATF cooler hoses to the joint pipes and ATF cooler, and secure them with the clips as shown.
2. Install the clamp on the yellow mark on the ATF cooler hose, then clamp the other hose as shown.
