EGR Valve Position Sensor: Locations

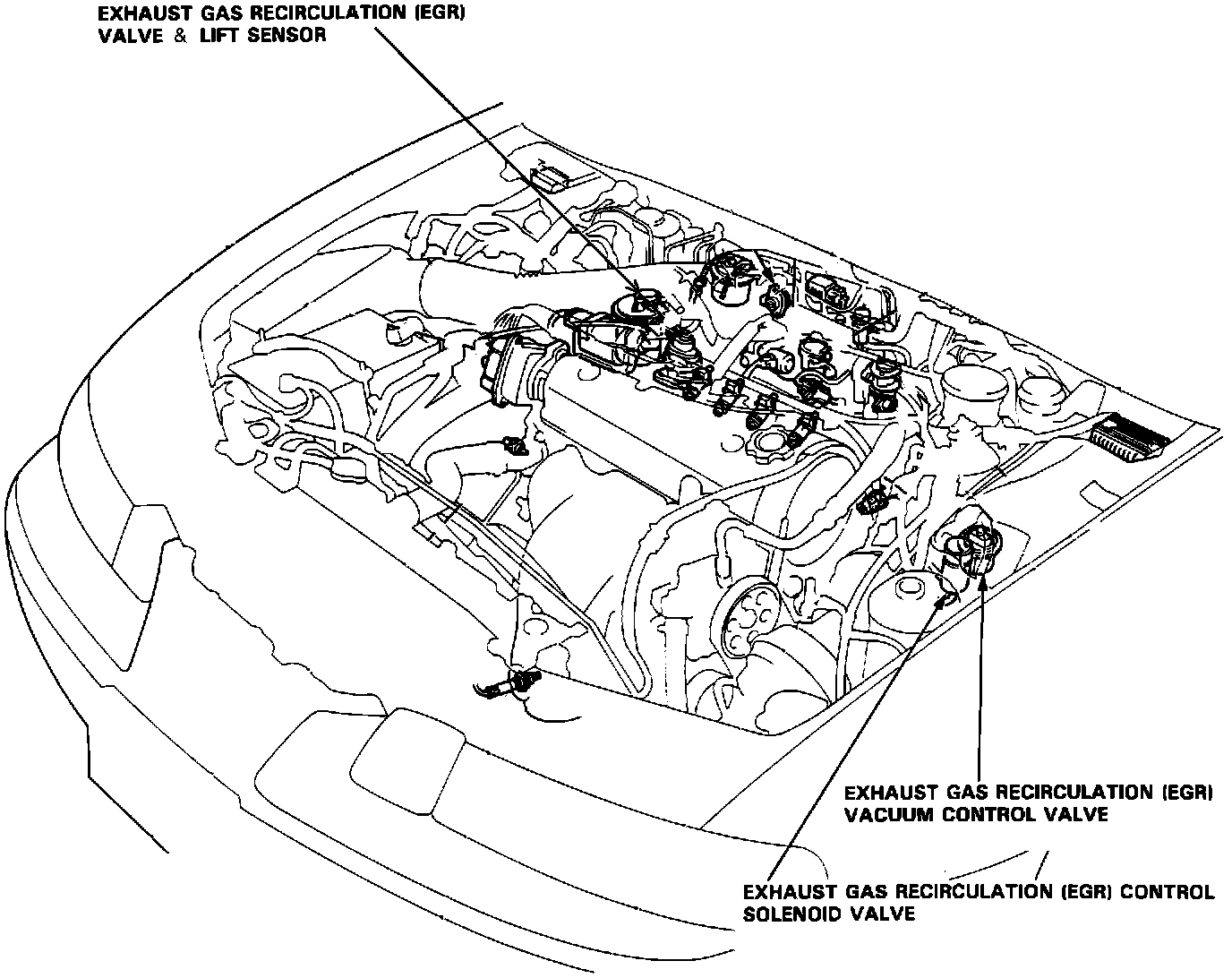

EGR System Component Locations:

The Exhaust Gas Recirculation (EGR) Lift Sensor is located on top of EGR Valve. The EGR Valve is located at the right corner of the intake manifold near the ignition distributor.
