Variable Valve Timing Pressure Switch: Testing and Inspection
INSPECTION 1.
Warm engine up to operating temperature (cooling fan comes on).
2.
Turn
ignition switch off.

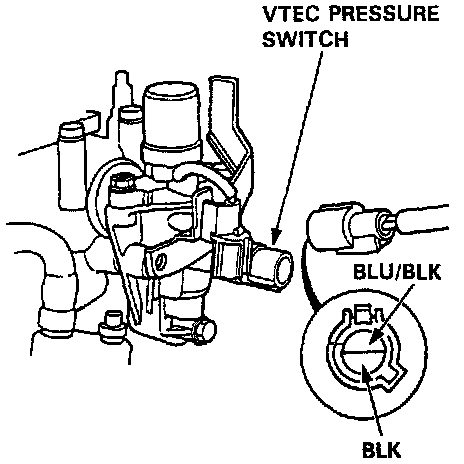

VTEC Pressure Switch Connector Terminal Identification.:
3.
Disconnect the two pin connector at the VTEC Pressure Switch. Check for continuity between the terminals on the SWITCH. If no continuity measured, replace switch.
