Component Tests and General Diagnostics
1.
Disconnect 14-P connector from control unit.

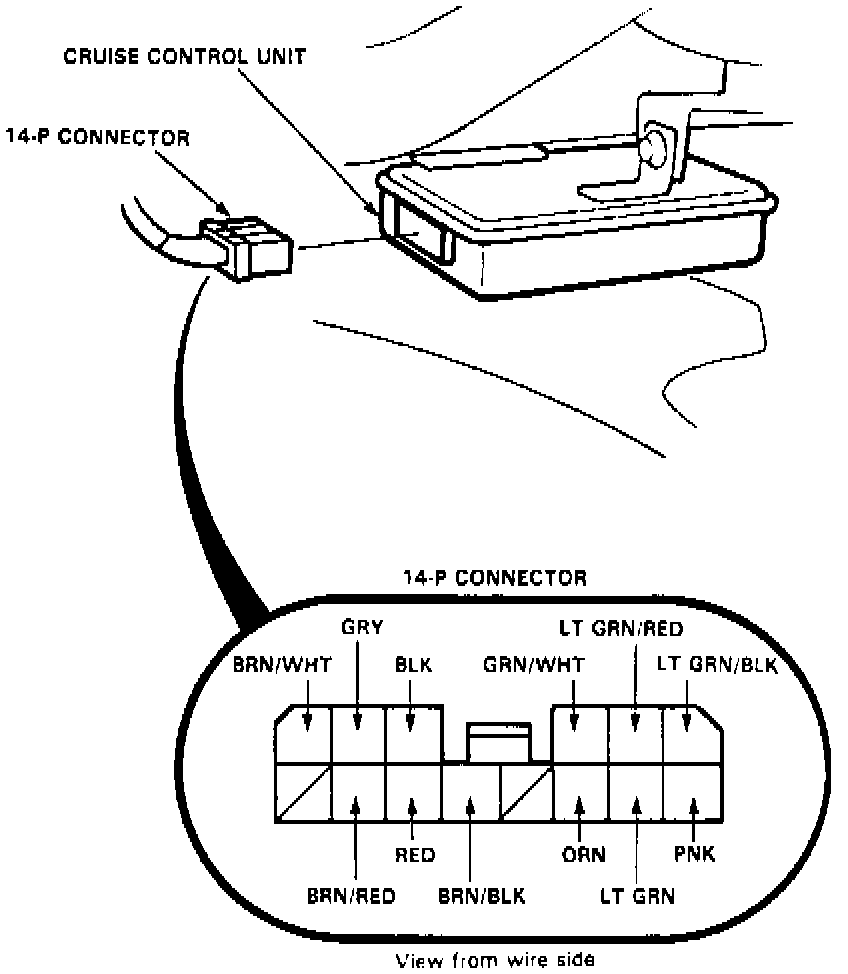

Fig. 18 Speed Control Unit Connector Pin Location:
Fig. 22 Speed Control Unit Input Test Chart:
2.
Perform tests at harness pin locations,
Figs. 18 and 22. 3.
Replace control unit if all input tests prove positive.
