Power Locks: Testing and Inspection

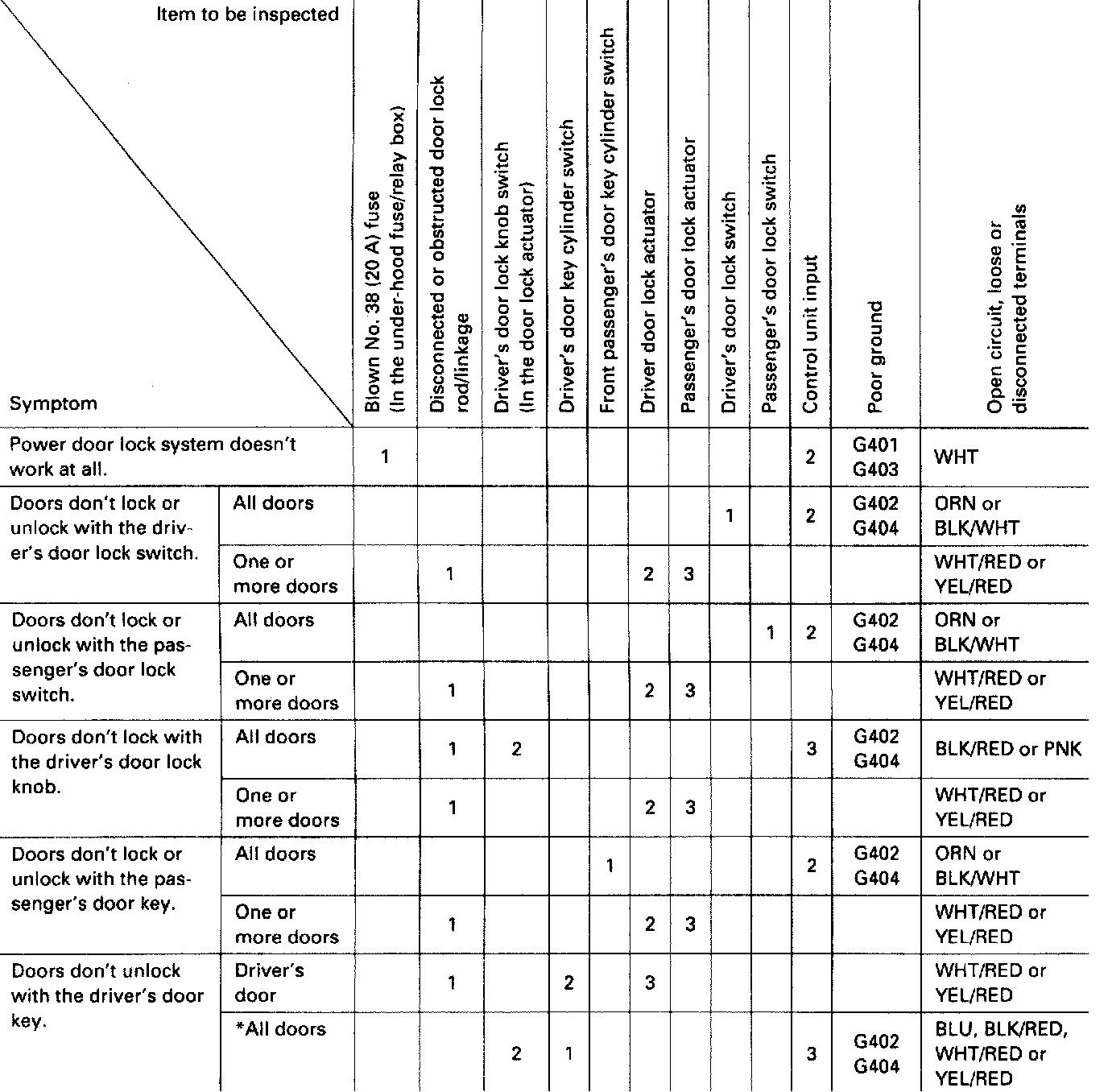

Troubleshooting (Coupe/Sedan/Wagon: Without Keyless Entry) NOTE:The numbers in the table show the troubleshooting sequence.
If the system is working normally, all doors will unlock when you hold the door
key in the unlock position (key cylinder switch and
door lock knob switch turned ON) for one second or more.
