Camshaft Position Sensor: Service and Repair
1.
Set the No. 1 piston at TDC.
2.
Remove the front upper cover.
3.
Remove the timing belt from the front camshaft pulley.
4.

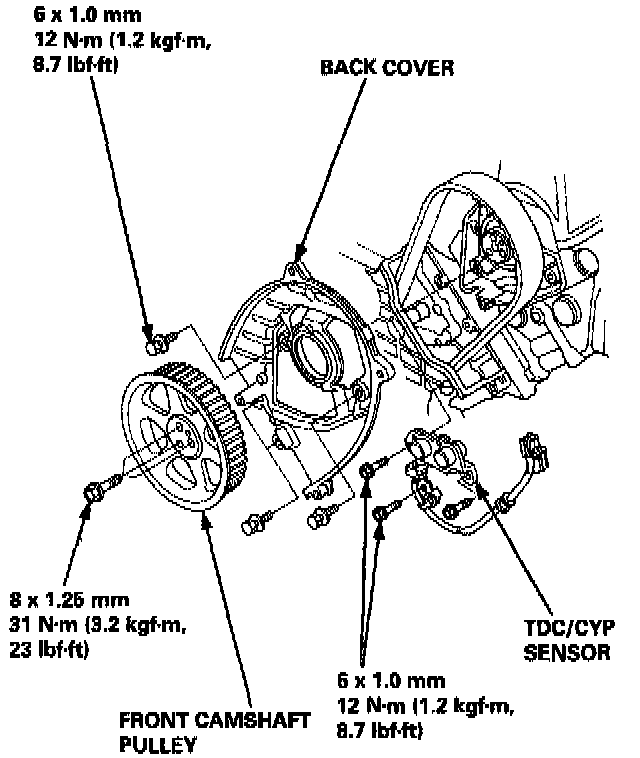

Remove the front camshaft pulley, back cover and TDC/
CYP sensor.
5.
Install the TDC/
CYP sensor in reverse order of removal.
