Manifold Pressure/Vacuum Sensor: Testing and Inspection

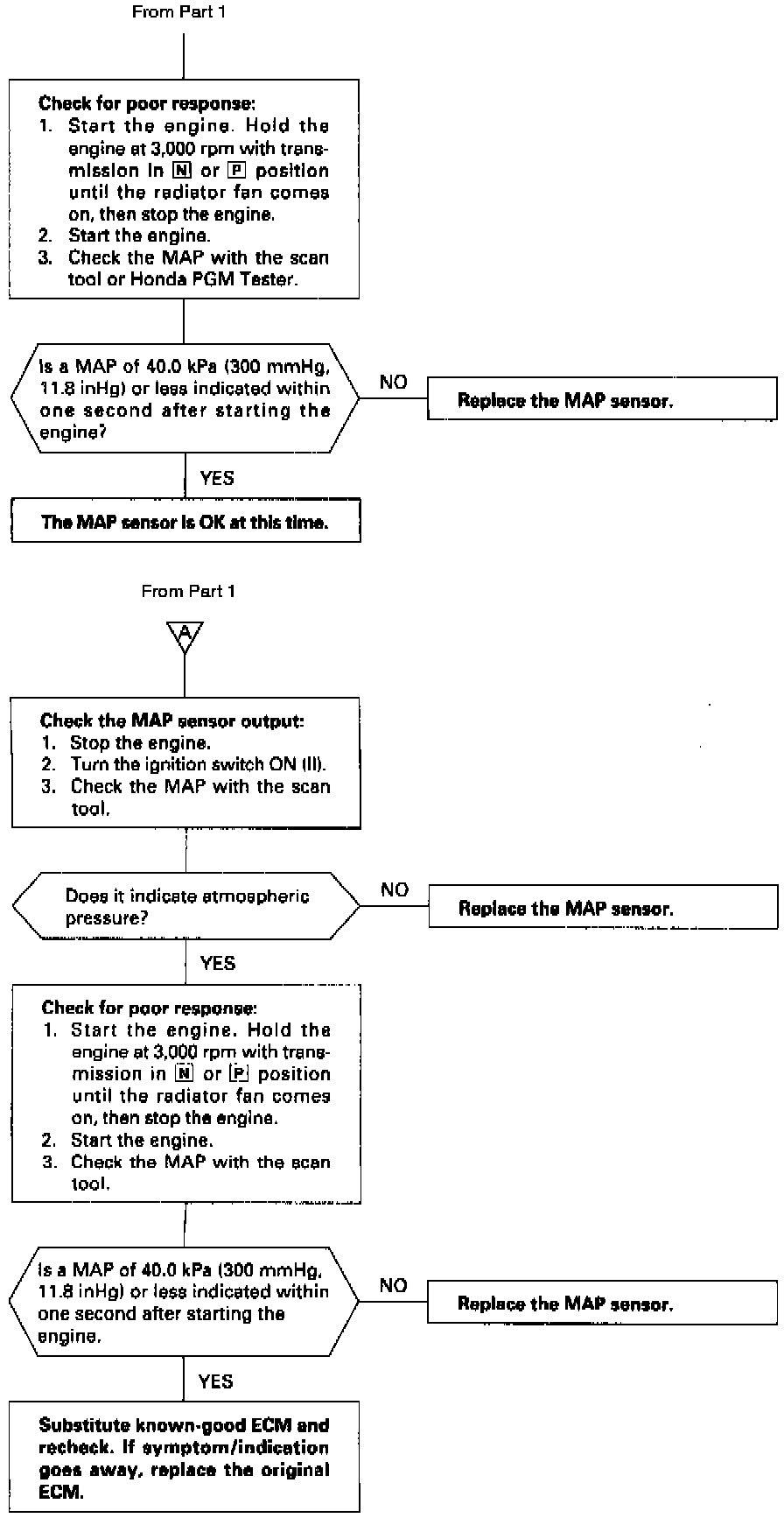

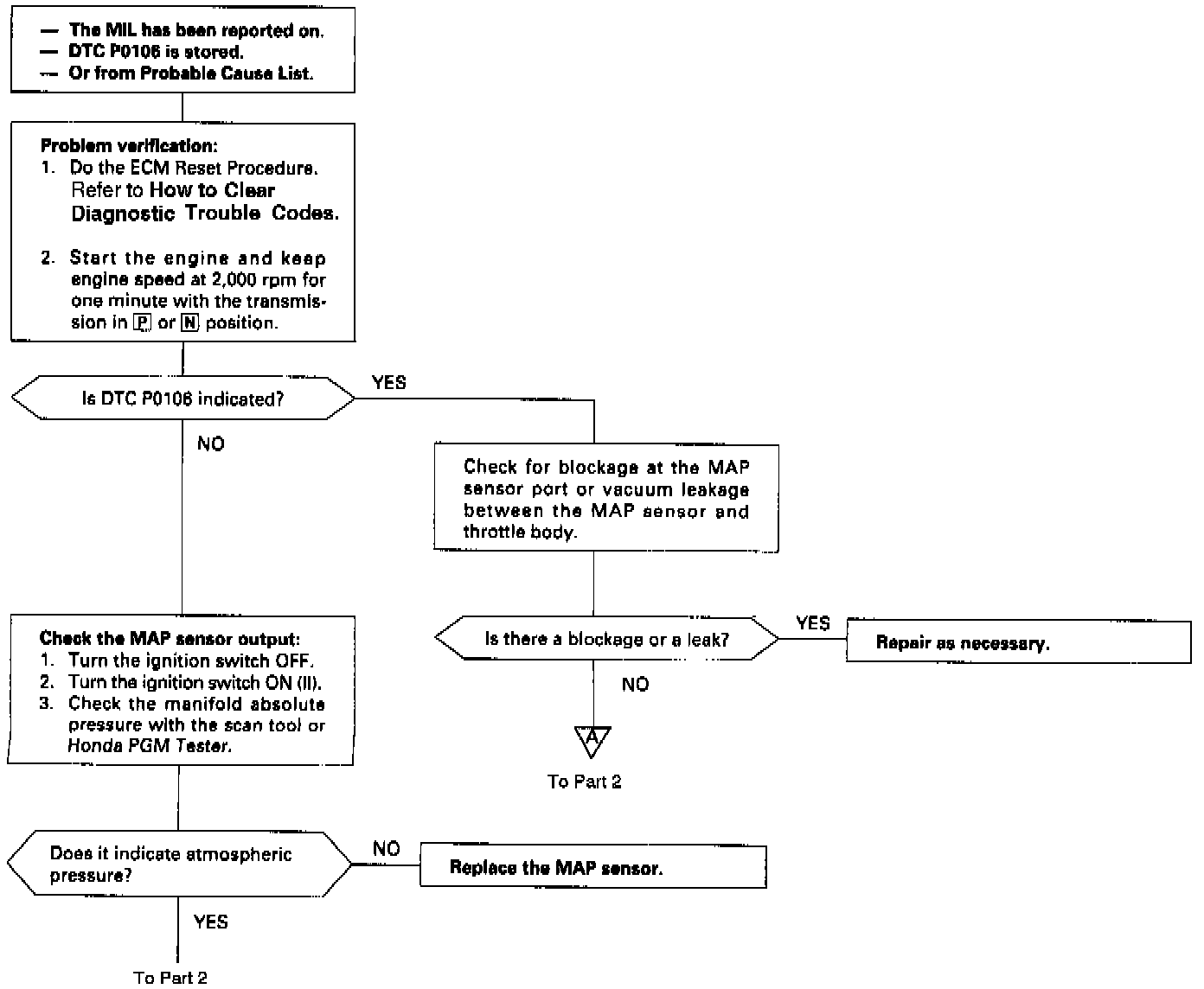

[P0106] The scan tool indicates Diagnostic Trouble Code (DTC) PO1O6: A Mechanical problem (vacuum leak) in the Manifold Absolute Pressure (MAP) Sensor system.

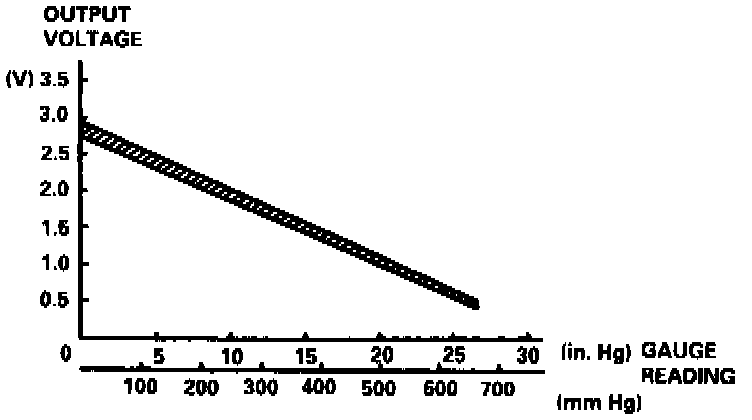

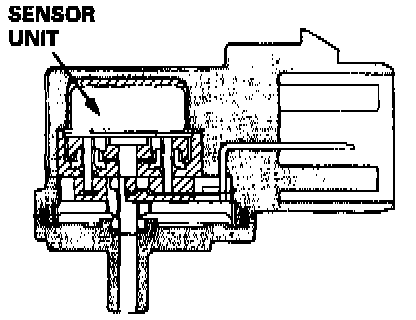

The MAP sensor converts manifold absolute pressure into electrical signals and inputs the ECM.

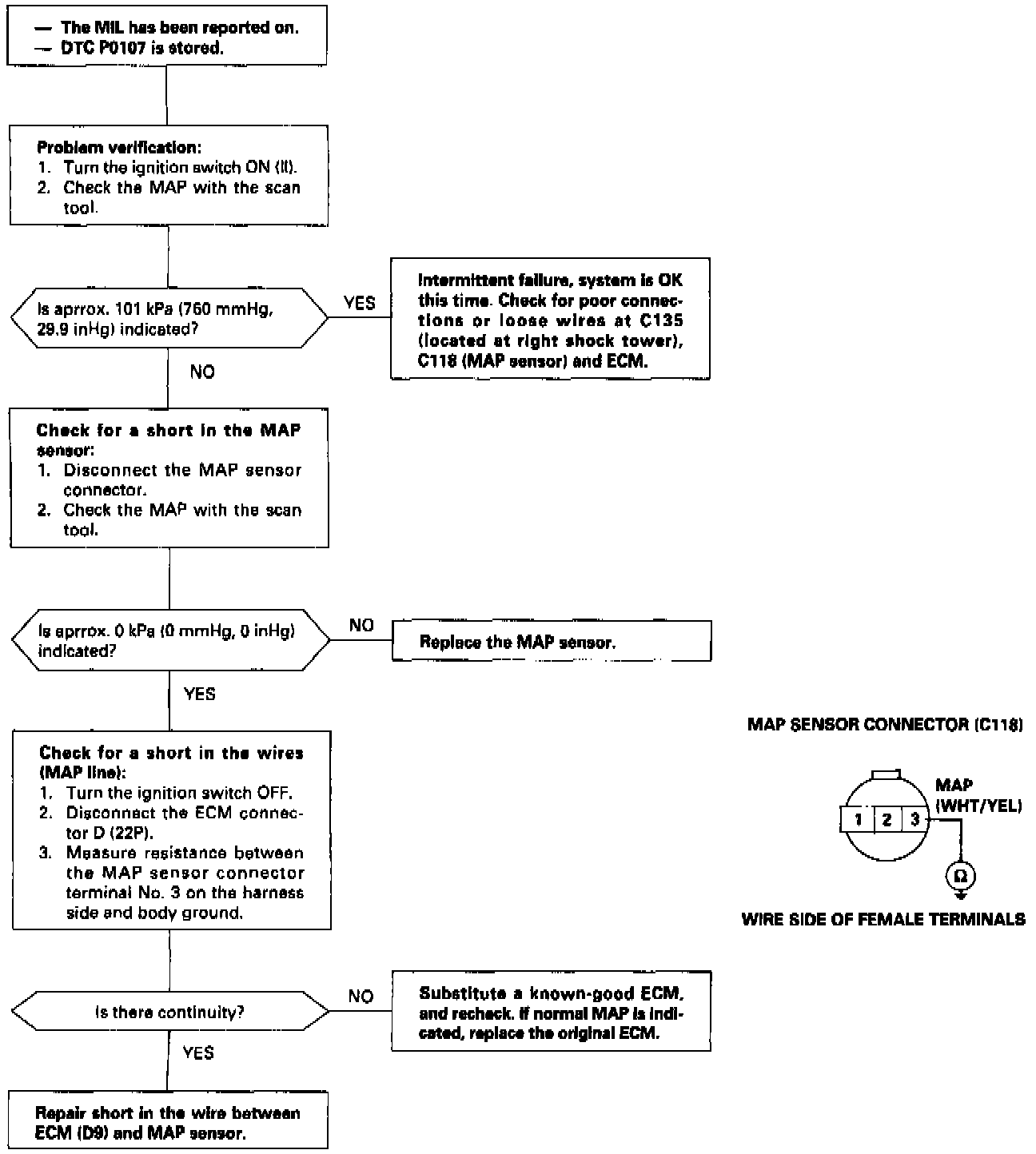

[P0107] The scan tool indicates Diagnostic Trouble Code (DTC) PO1O7: A low voltage (high vacuum) problem in the Manifold Absolute Pressure (MAP) sensor.

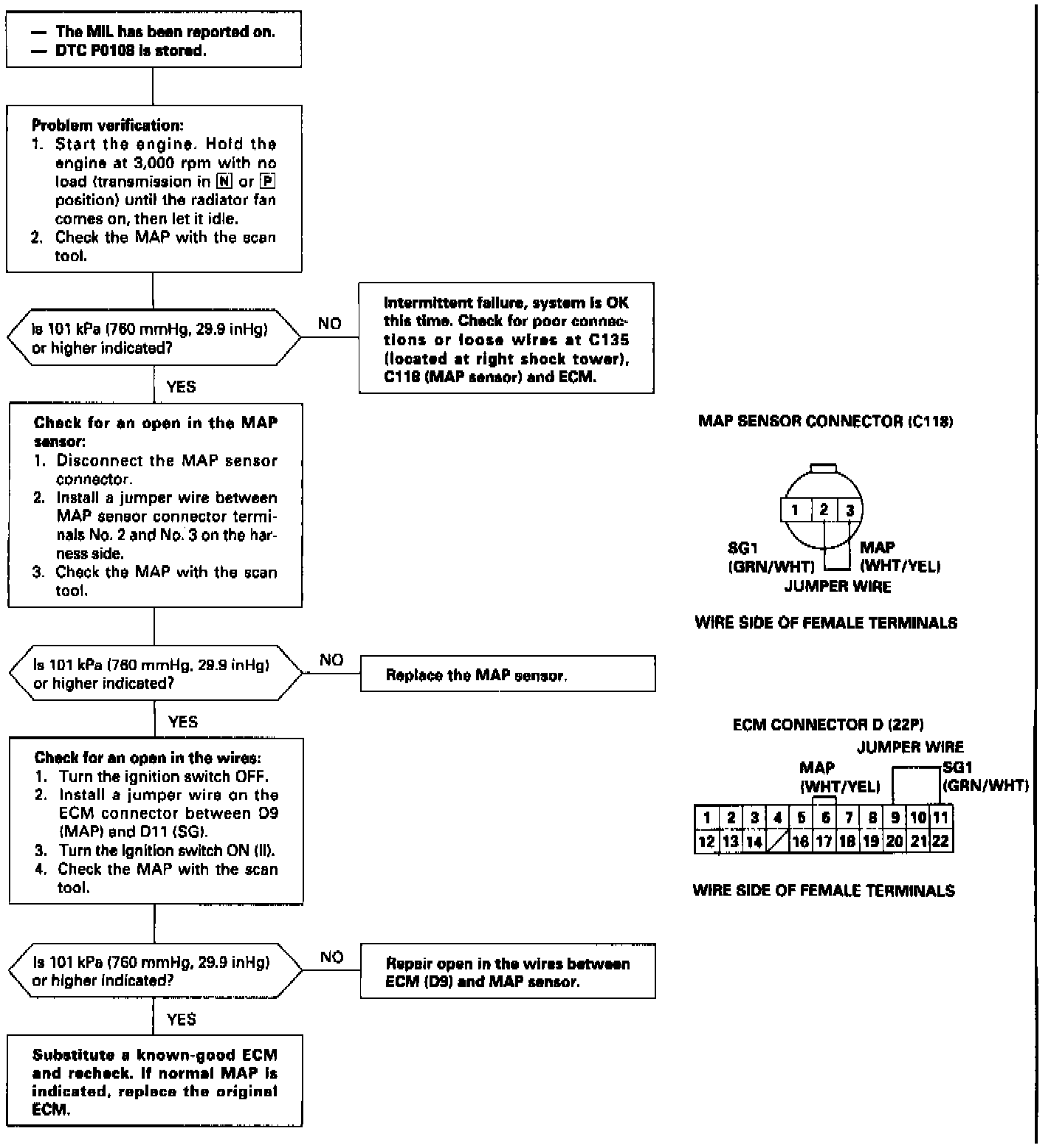

[PO1O8] The scan tool indicates Diagnostic Trouble Code (DTC) PO1O8: A high voltage (low vacuum) problem in the Manifold Absolute Pressure (MAP) sensor.
