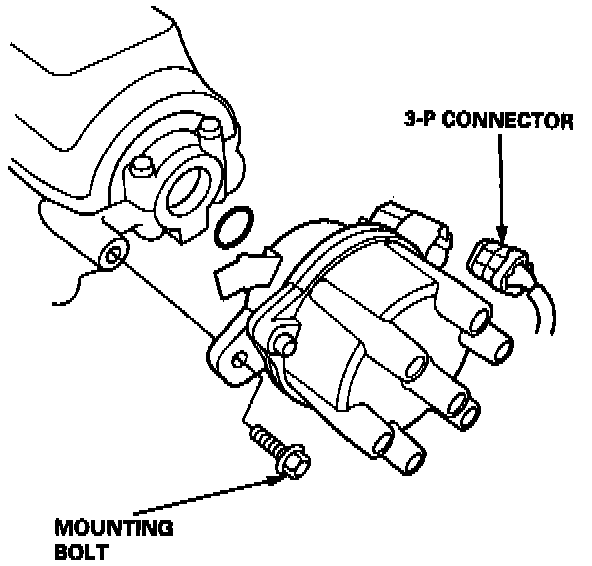

Removal
NOTE: Before you remove the
distributor, bring the No. 1 piston to compression stroke TDC.
1.
Disconnect the 3-P connector from the
distributor.
2.
Disconnect the ignition wires from the
distributor ignition cap.
3.
Remove the
distributor mounting bolt, then remove the distributor from the cylinder head.
