General Specifications

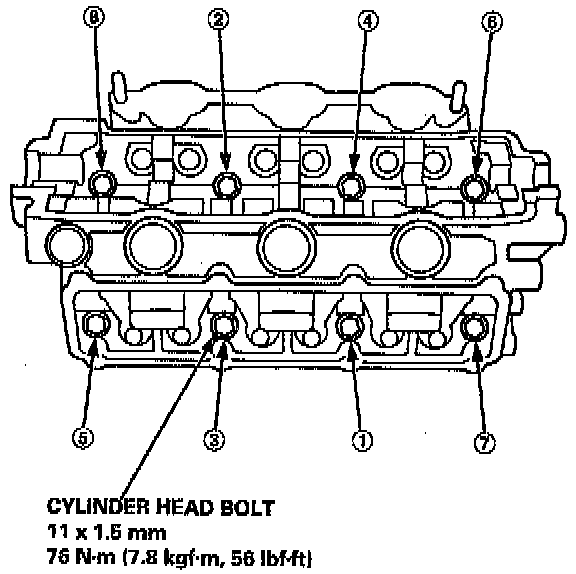

TIGHTENING SPECIFICATIONS Cylinder Head Bolts; Tighten In Sequence To:
76 Nm (56 ft. lbs.) Oil Plug Sealing Bolts:
39 Nm (29 ft. lbs.) Top Cover Mounting Bolts:
15 Nm (11 ft. lbs.)DIMENSIONS Standard Head Height (New):
132.93 - 133.07 mm (5.233 - 5239 inch) Warpage:
0.05 mm (0.002 inch)
