Conventional Brake System

Do not mix different brands of brake fluid, as they may not be compatible. Use only DOT 3 or 4 brake fluid. Ensure brake fluid level in reservoir is at MAX (upper) level line.

1. Have an assistant slowly pump brake pedal several times, then hold steady pressure.
2. Loosen brake bleed screw to allow air to escape from system, then tighten bleed screw securely.

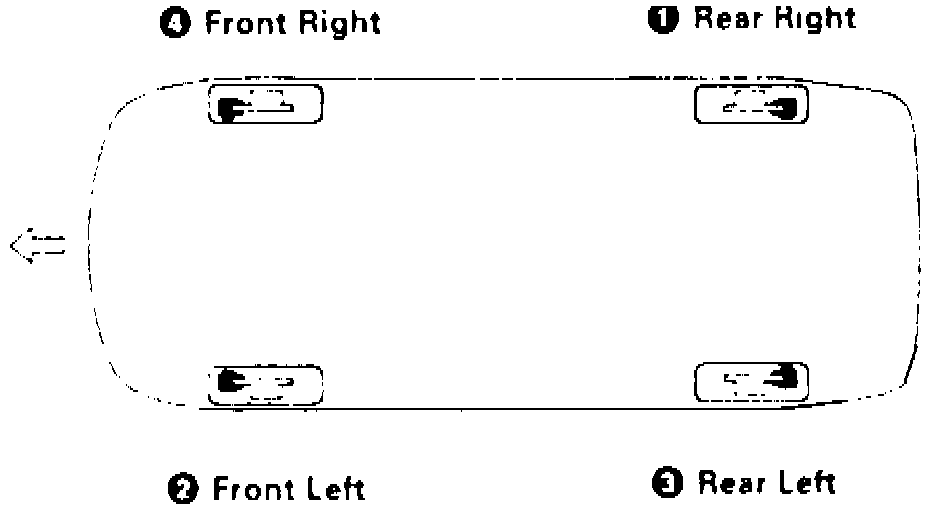

Fig. 2 Wheel Bleeding Sequence:





3. Repeat procedure for each wheel in sequence, Fig. 2, until air bubbles no longer appear in fluid. Master cylinder reservoir must be full when starting bleeding procedure and checked after bleeding each wheel.
4. Check brake performance by road testing vehicle.
