Idle Speed: Testing and Inspection
1.
1.
Start the Engine. Hold the Engine at 3,000 rpm with no load (Shift Lever in N or P position) until the Radiator Fan comes on, then let it idle.
2.

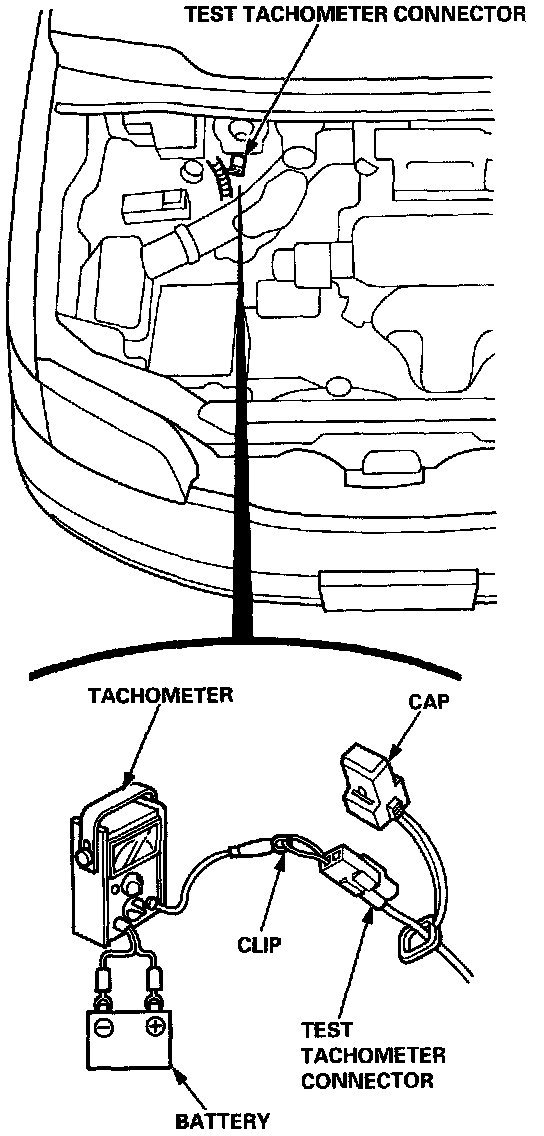

Connect a Tachometer to the Test Tachometer Connector.
Idle Speed: 700 ± 50 rpm with Shift Lever in N or P position 3.
Adjust the
idle speed if necessary.
