Wiring Precautions

- Never attempt to modify, splice or repair SRS wiring.

NOTE: SRS wiring can be identified by special yellow outer protective covering.





- Be sure to install the harness wires so that they are not pinched or interfering with other car parts.

- Make sure all SRS ground locations are clean and grounds are securely fastened for optimum metal-to-metal contact. Poor grounding can cause intermittent problems that are difficult to diagnose.

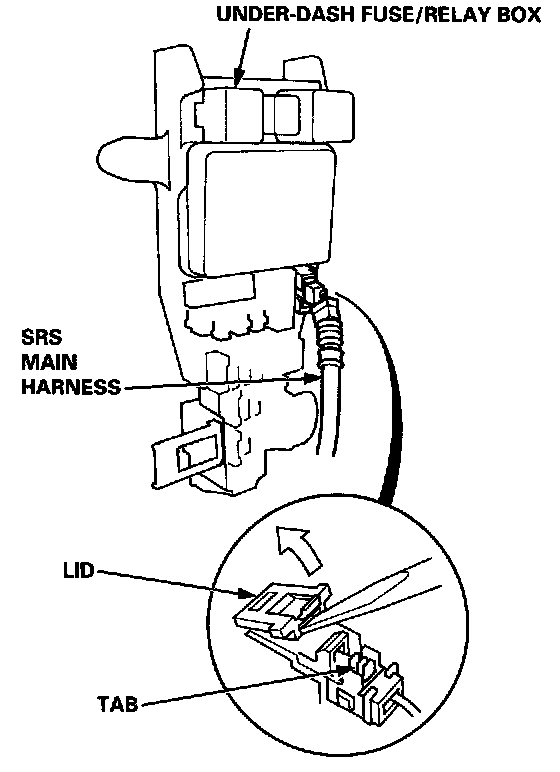

Disconnecting the SRS Connector at the Under-dash Fuse/Relay Box:

CAUTION: Avoid breaking the connector; it's double-locked.





1. First lift the connector lid with a thin screwdriver, then press the connector tab down, and pull the connector out.

2. To reinstall the connector, push it into position until it clicks, then close its lid.
