Toe-In
1.
Release parking brake.

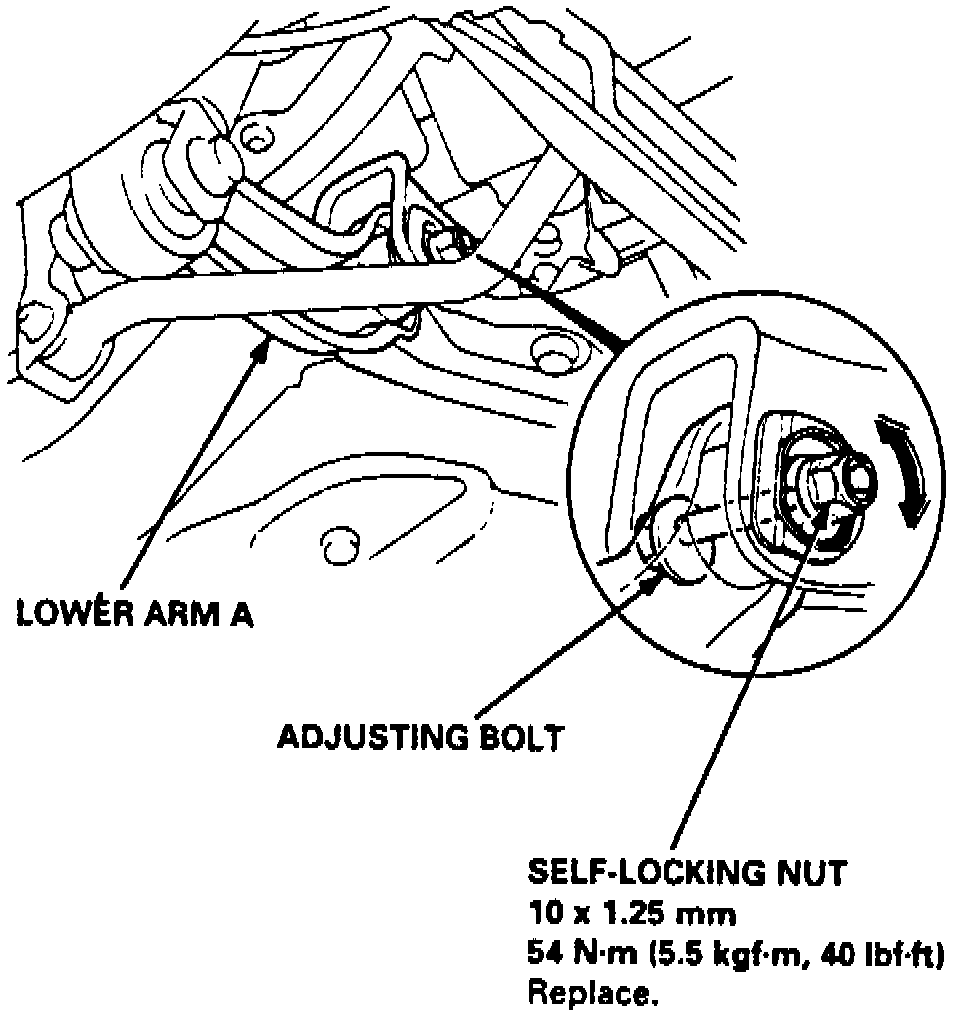

Fig. 3 Rear Toe-In Adjustment:
2.
Hold adjusting bolt on rear lower arm and loosen locknut,
Fig. 3. 3.
Rotate adjusting bolt to obtain specified toe-in.
4.
Install new locknut and torque nut to 40 ft. lbs. while holding adjusting bolt, then ensure toe-in is still within specifications.
