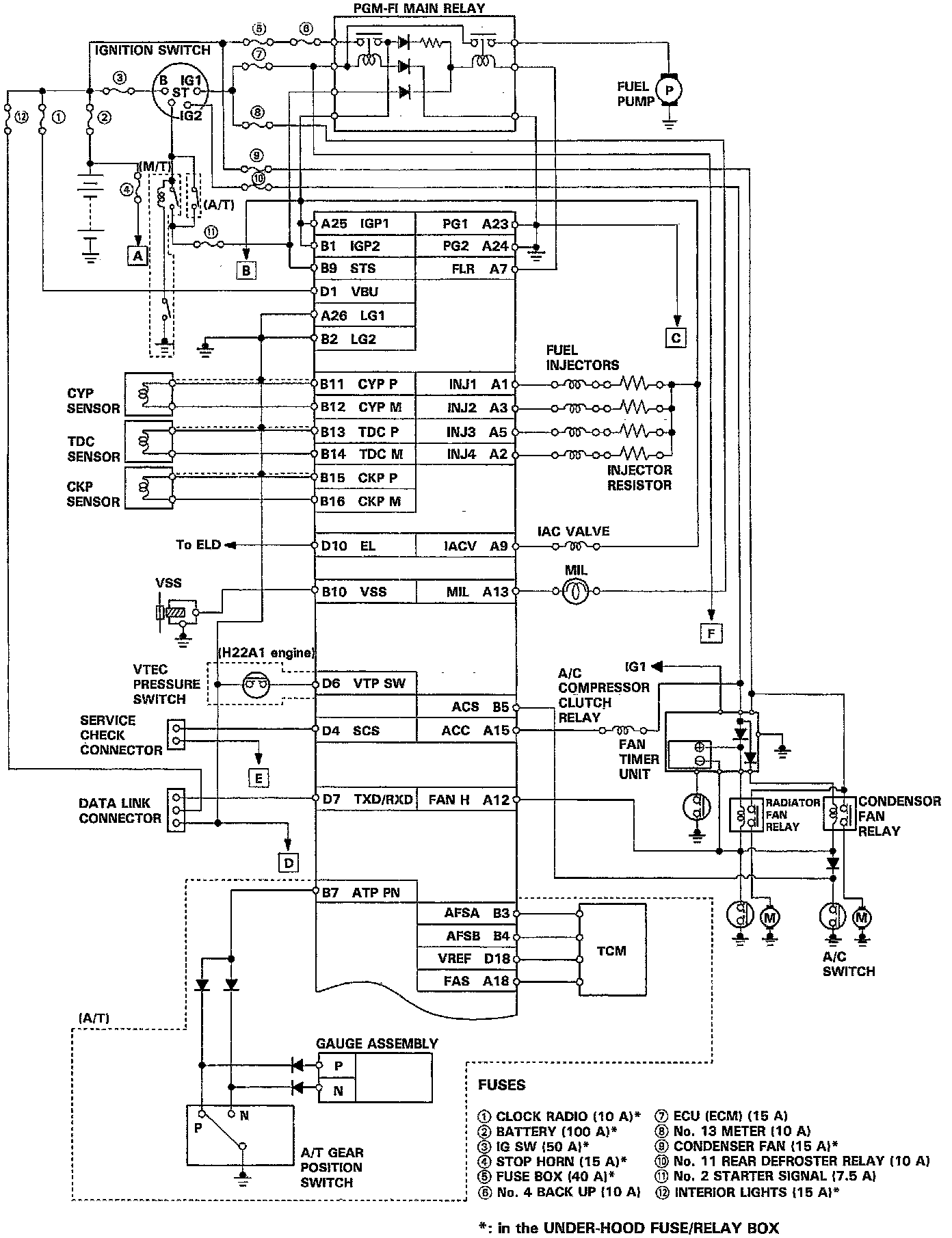

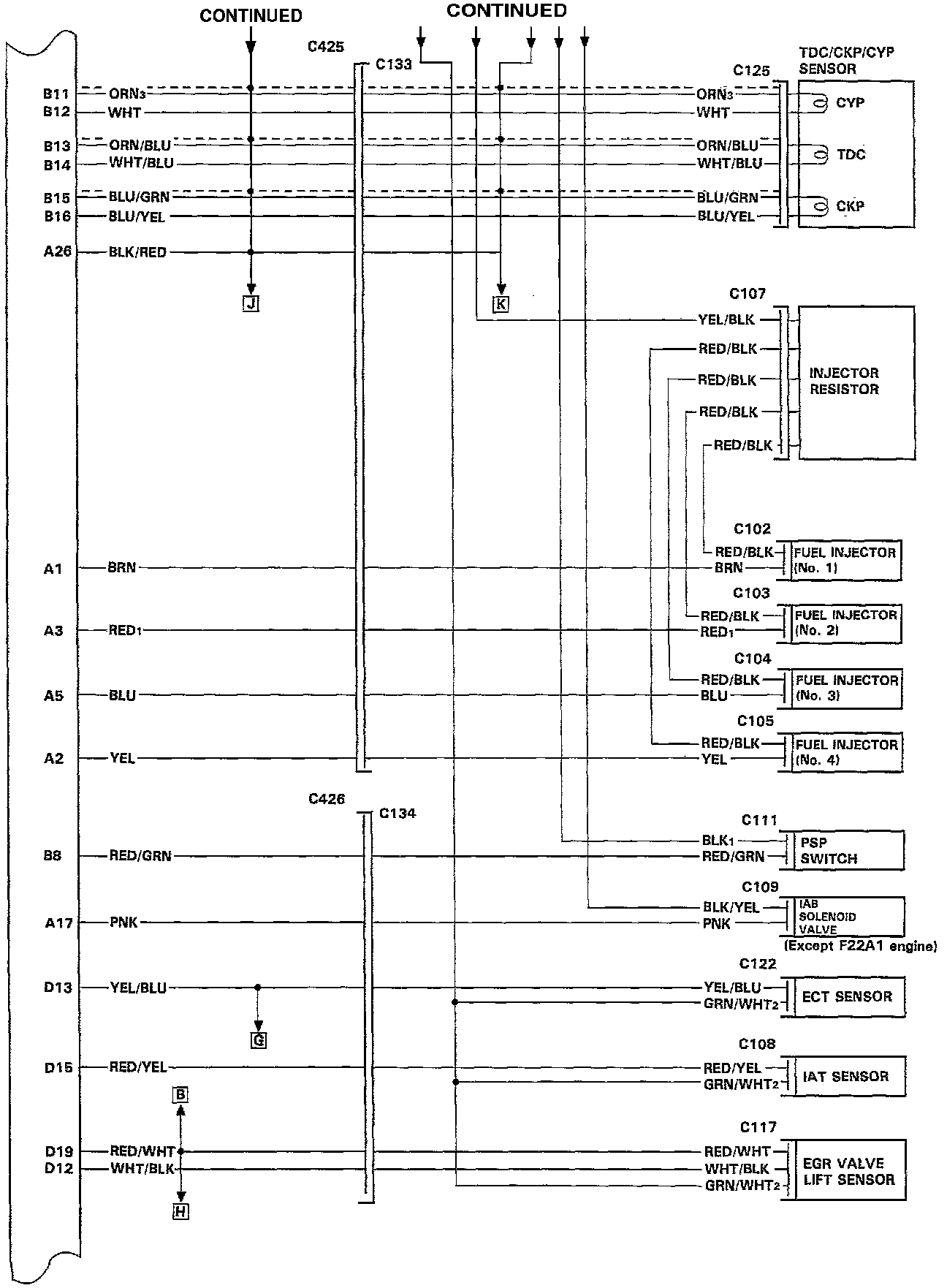

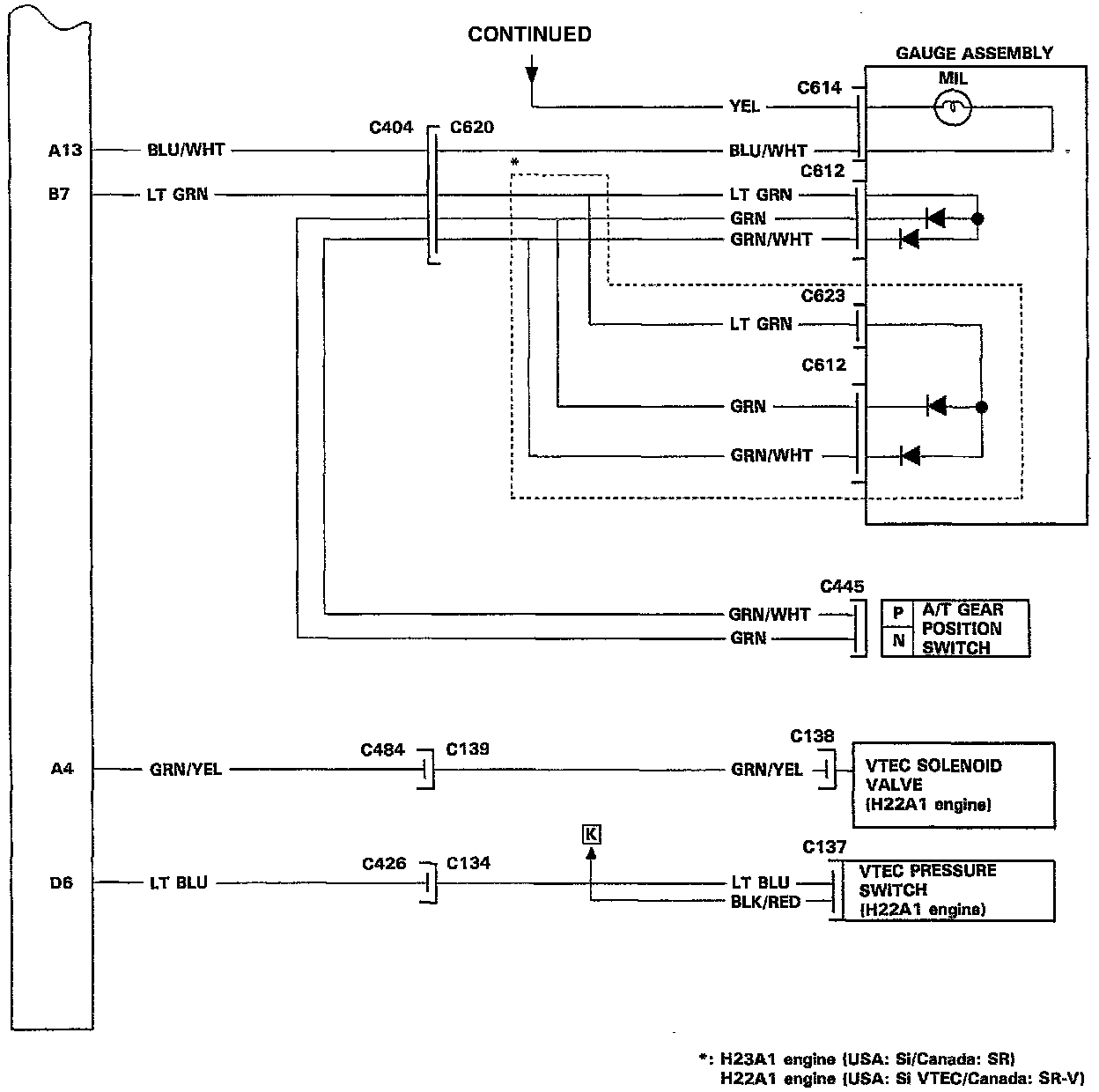

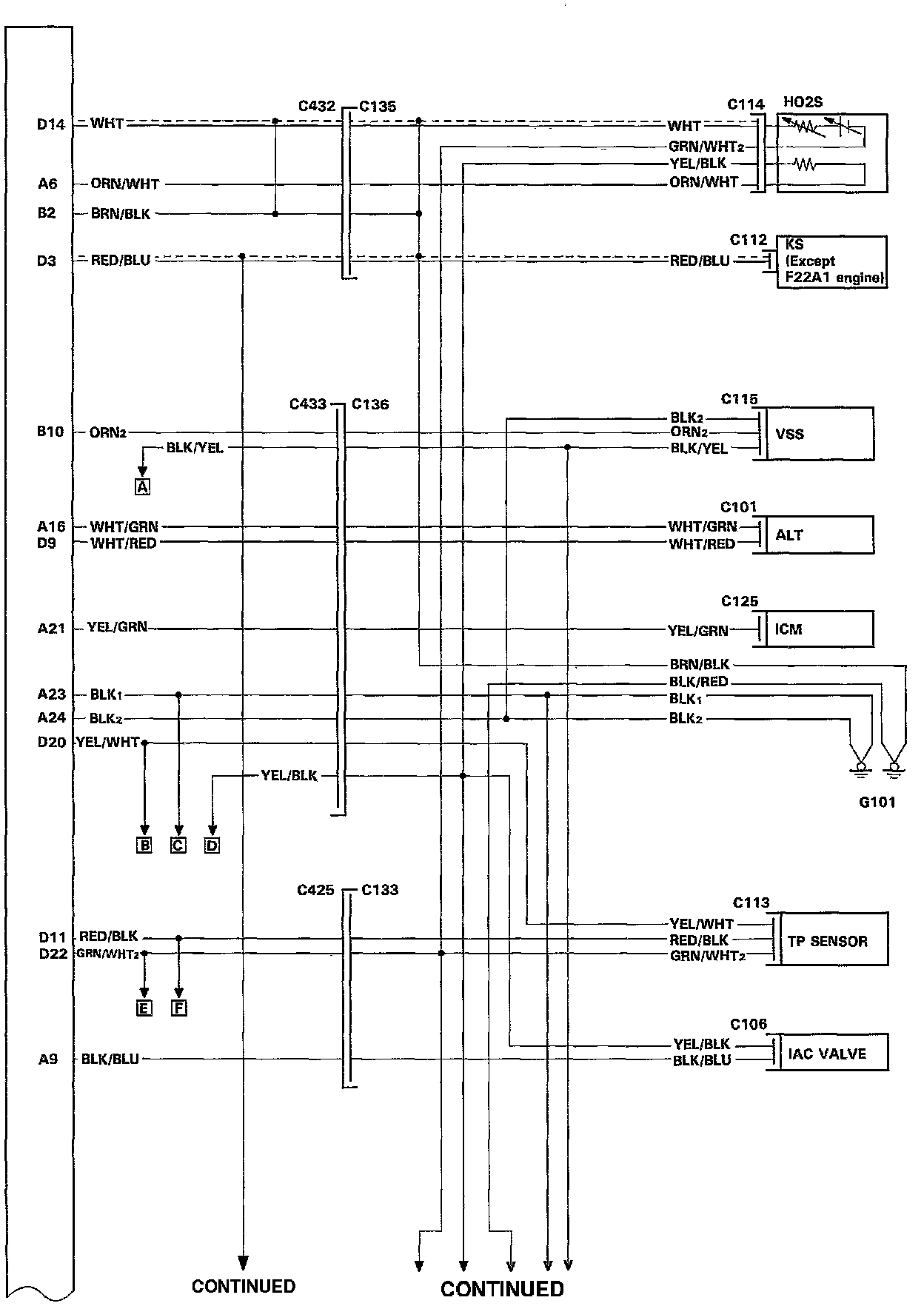

System Diagram

1. Clock Radio (10 A)*
2. Battery (100 A)*
3. IG SW (50 A)*
4. Stop Horn (15 A)*
5. Fuse Box (40 A)*
6. No. 4 Back Up (10 A)
7. ECU (ECM) (15 A)
8. No. 13 Meter (10 A)
9. Condenser Fan (15 A)*
10. No. 11 Rear Defroster Relay (10 A)
11. No. 2 Starter Signal (7.5 A)
12. Interior Lights (15 A)*

*In the Under-Hood Fuse/Relay Box

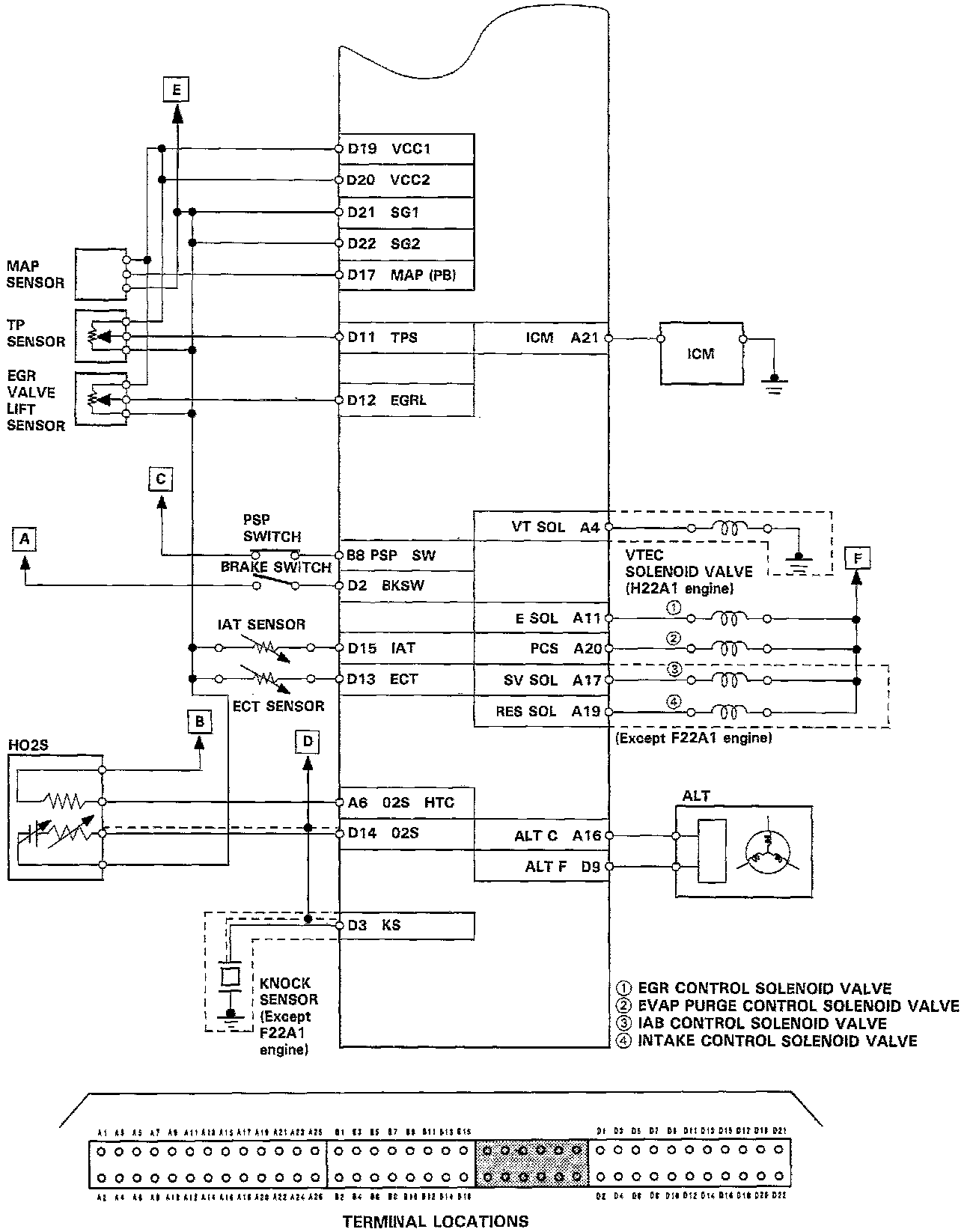

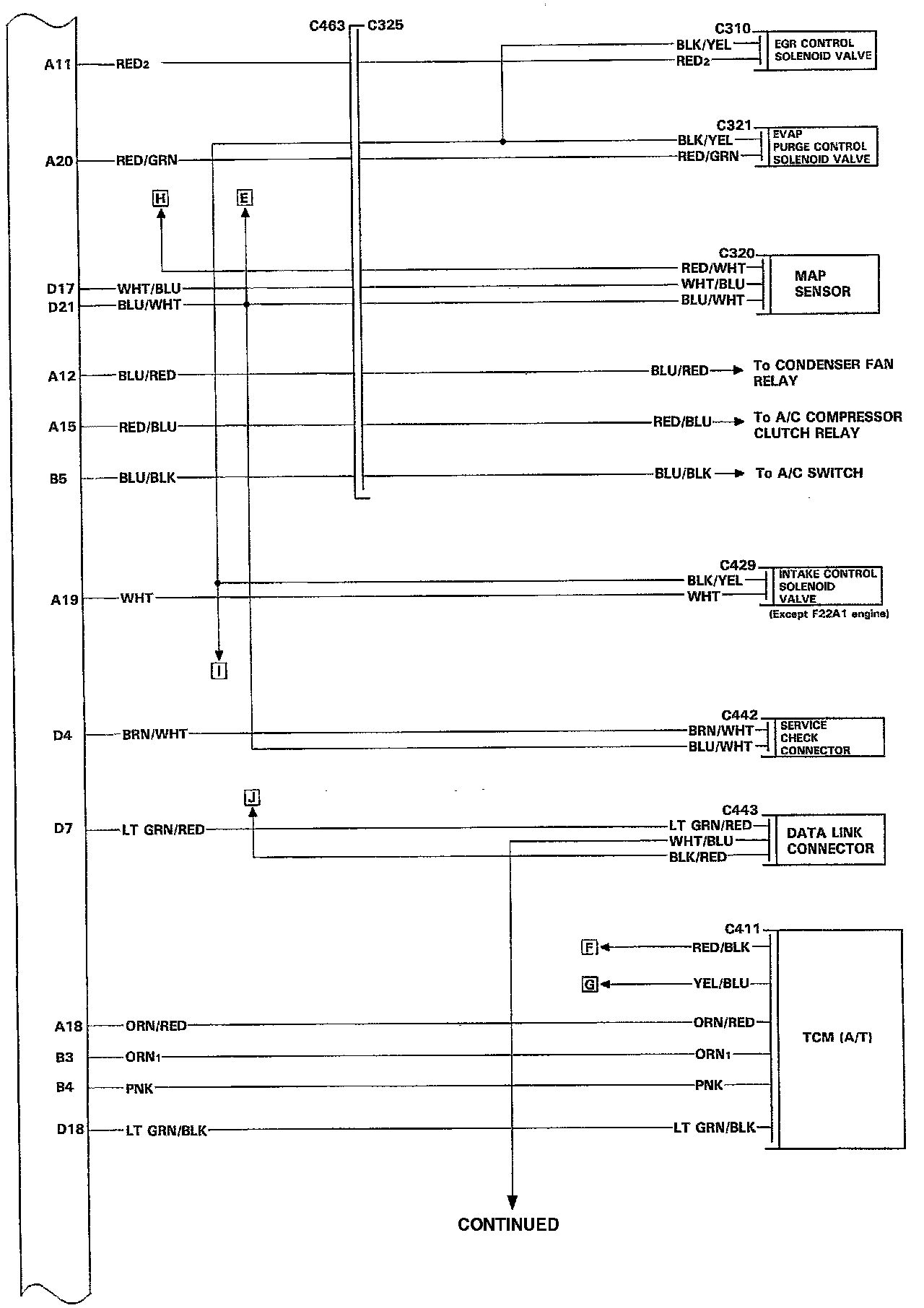

1. EGR Control Solenoid Valve
2. EVAP Purge Control Solenoid Valve
3. IAB Control Solenoid Valve
4. Intake Control Solenoid Valve

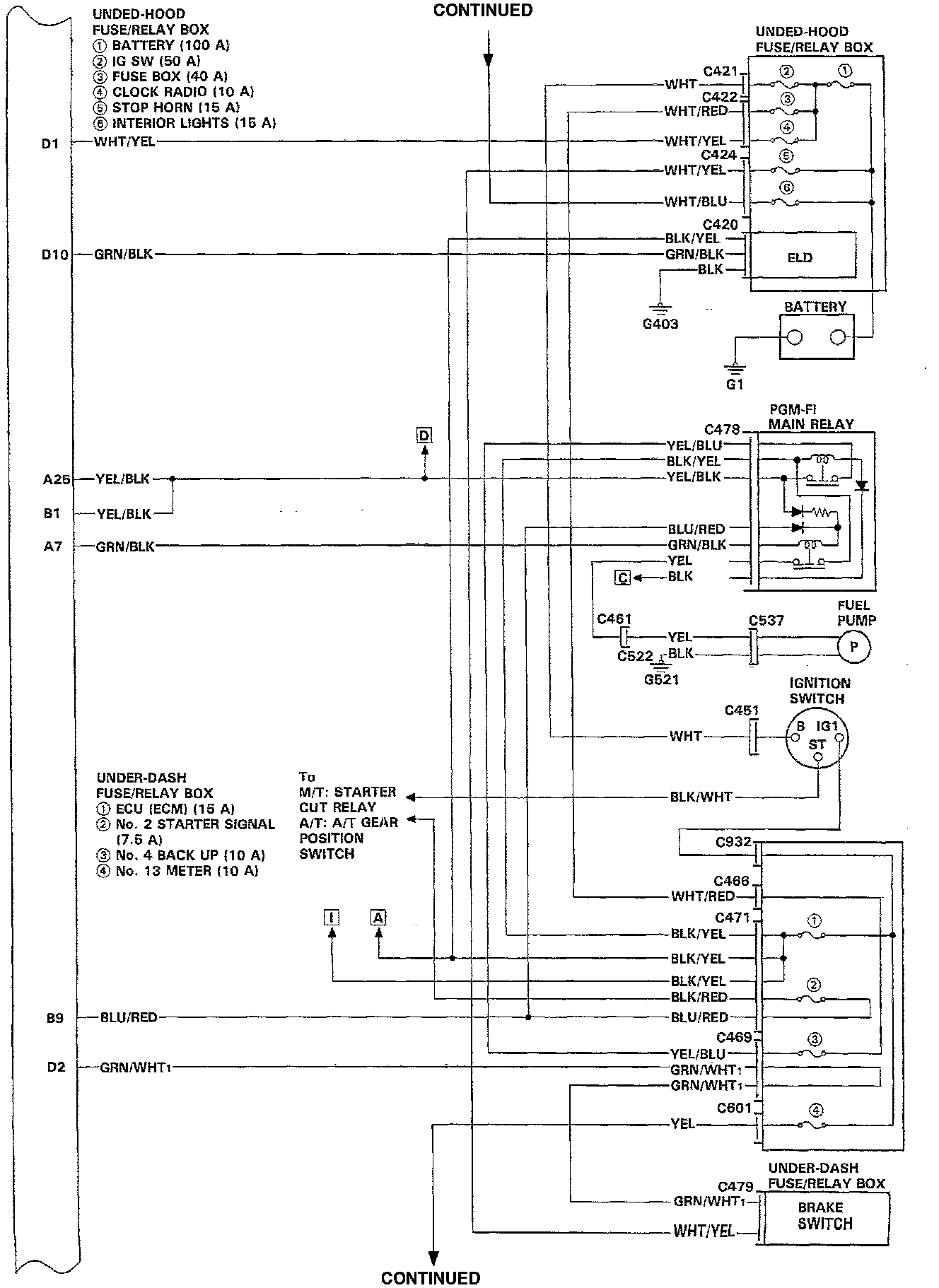

Under-Hood Fuse/Relay Box
1. Battery (100 A)
2. IG SW (50 A)
3. Fuse Box (40 A)
4. Clock Radio (10 A)
5. Stop Horn (15 A)
6. Interior Lights (15 A)

Under-Dash Fuse/Relay Box
1. ECU (ECM (15 A)
2. No. 2 Starter Signal (7.5 A)
3. No. 4 Back Up (10 A)
4. No. 13 Meter (10 A)
