Transmission Position Sensor/Switch: Testing and Inspection
1.

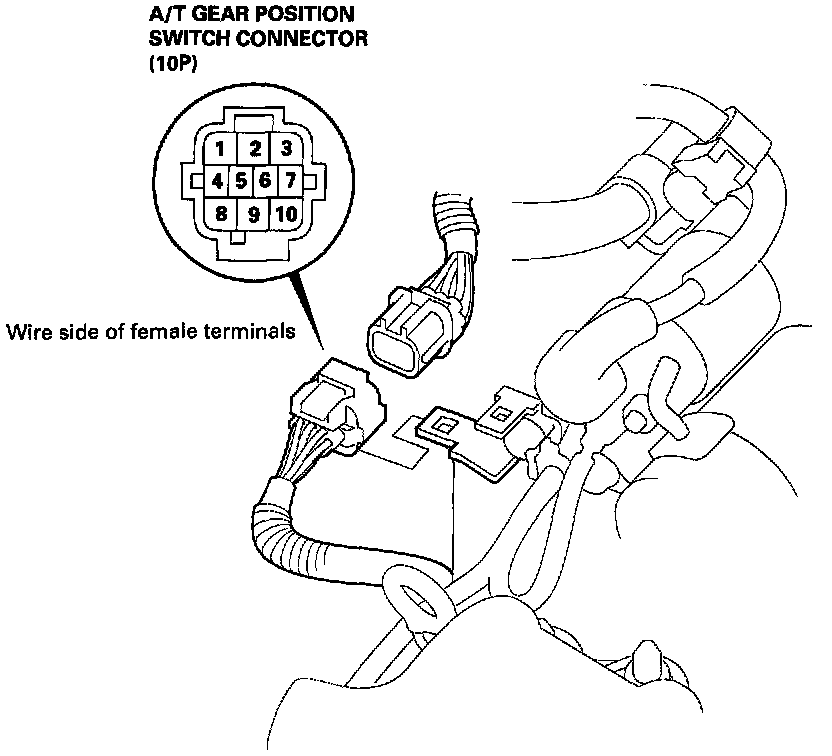

Remove the A/T gear position switch connector from the connector bracket, then disconnect the A/T gear position switch connector (10P).
2.
Check for continuity between the terminals in each switch position according to the table below.

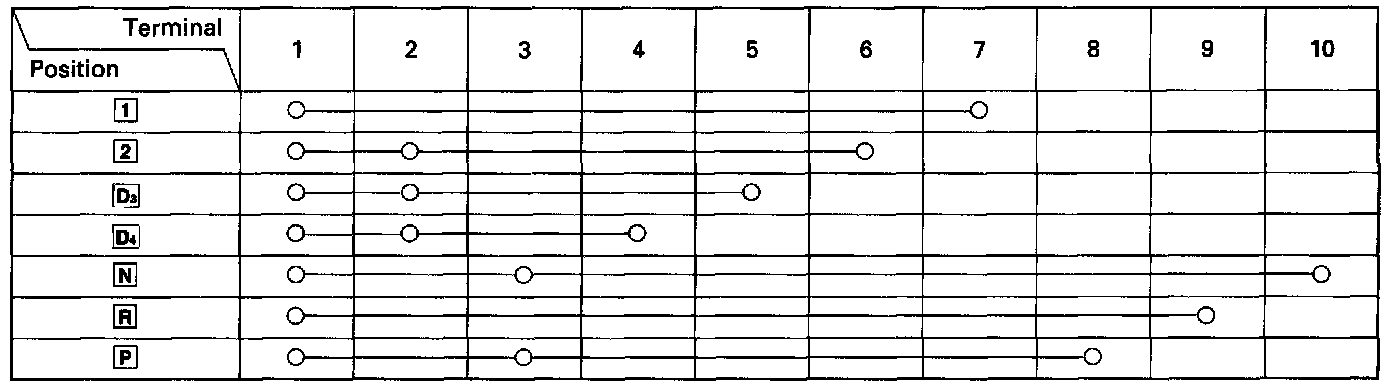

A/T Gear Position Switch Continuity Check NOTE: Terminal No. 3: Neutral position switch
