Left Side Cover

NOTE: Clean the disassembled parts with solvent, and dry them thoroughly with compressed air.

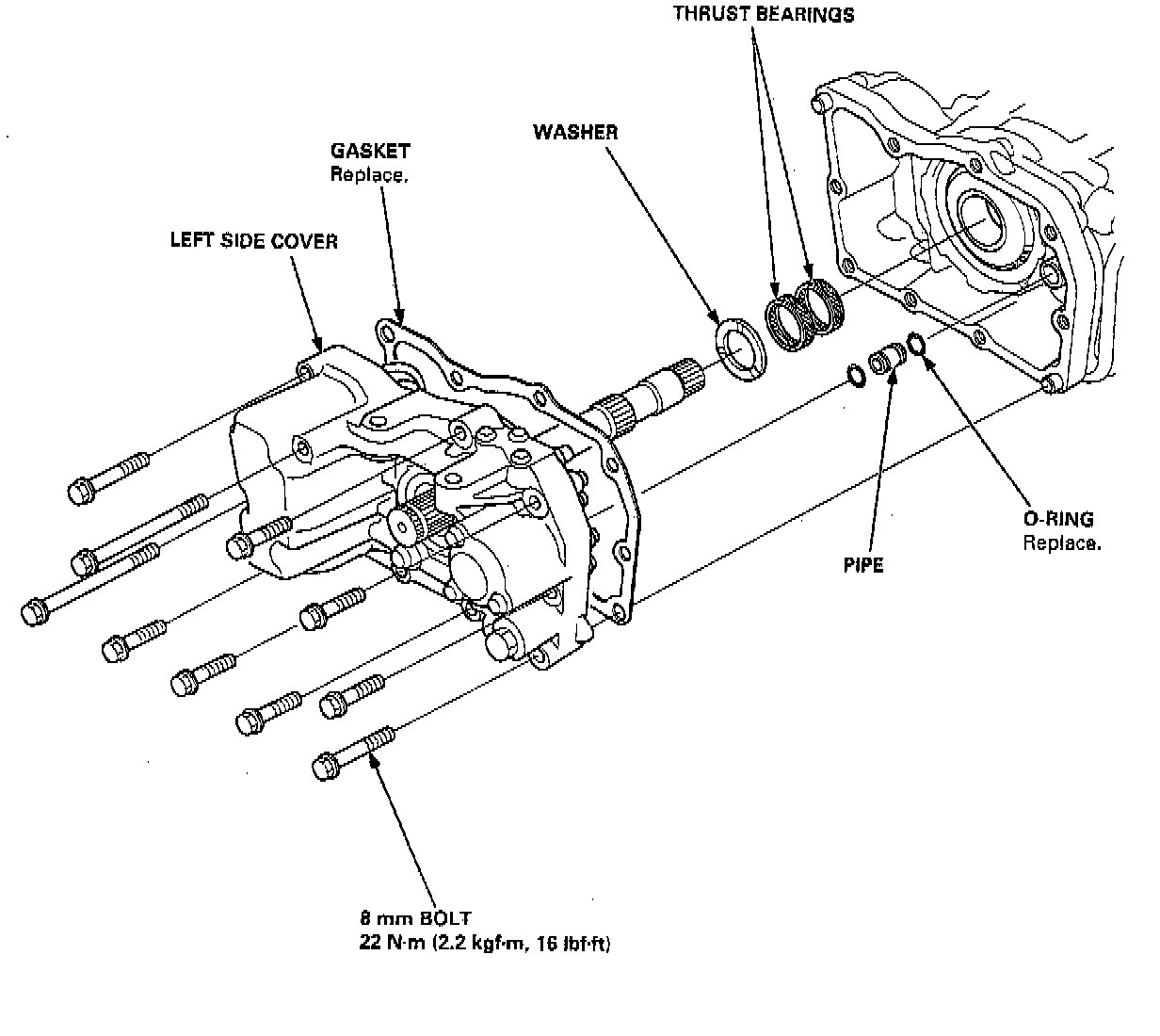

1. Remove the left side cover and gasket.
2. Remove the washer and thrust bearings.
3. Remove the pipe and O-rings.
4. Remove the oil pump gear cover.

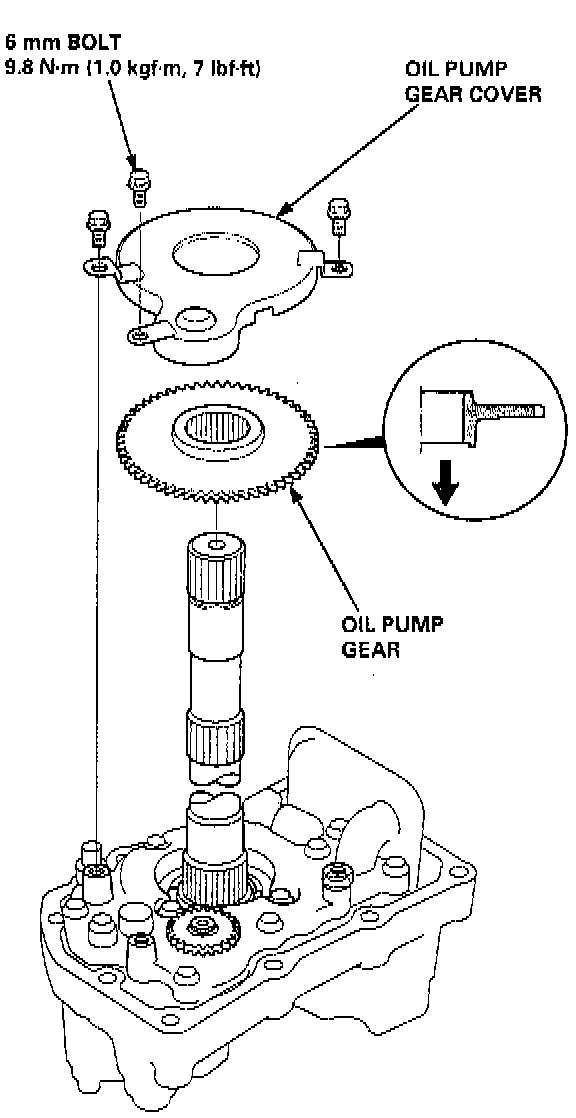

5. Remove the oil pump gear.

NOTE: When installing the oil pump gear, note the direction of the gear.

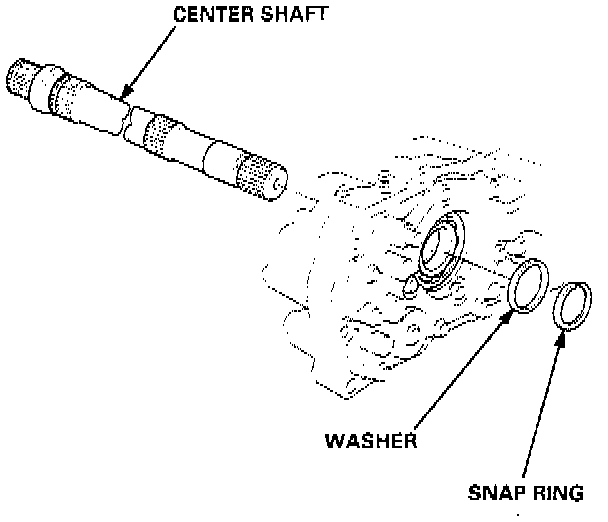

6. Remove the snap ring and washer, then remove the center shaft.

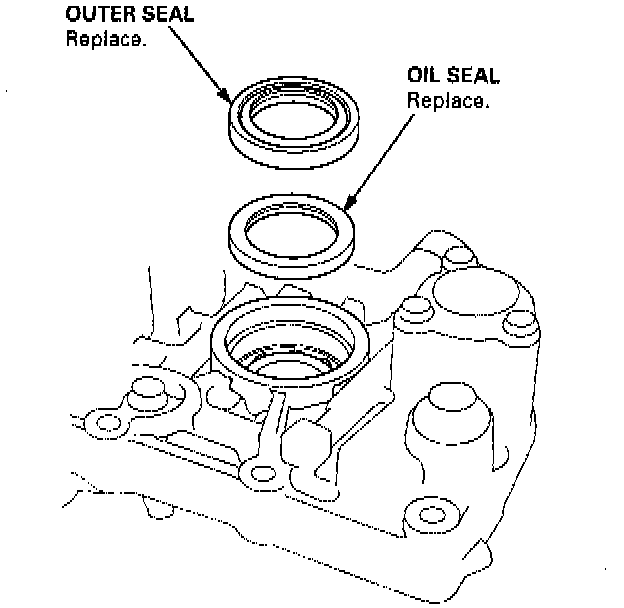

7. Remove the outer seal and oil seal.
8. Reassembly is in the reverse order of disassembly.

NOTE: Be careful to keep foreign material out of the ATTS unit during reassembly.
