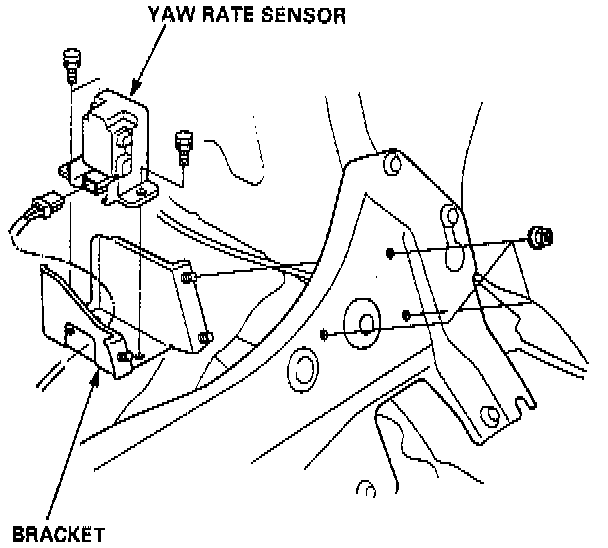

Yaw Rate Sensor
REPLACEMENT CAUTION: Be careful not to drop or bump the sensor, and don't remove or install it with an impact wrench; the sensor may be damaged.
1.
Remove the rear seat-back.
2.
Remove the bracket and yaw rate sensor.
3.
Install the yaw rate sensor in the reverse order of removal.
