Primary HO2S
Primary HO2S ReplacementSpecial Tools RequiredCommercially available O2 sensor wrench, Snap-on YA8875 or SP Tools 93750 or equivalent
1.

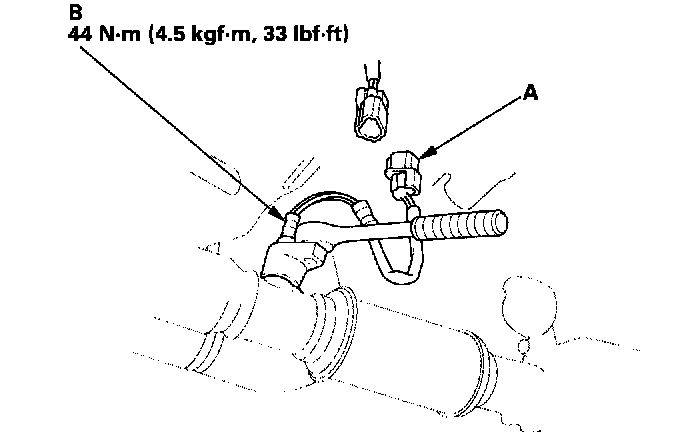

Disconnect the primary HO2S 4P connector (A), then remove the primary HO2S (B).
2.
Install the primary HO2S in reverse order of removal.
