Fan control circuit - Service Manual Update

99-059

July 27, 1999

Applies To:
1998 Odyssey - ALL

Service Manual Update: Fan Control Circuit

BACKGROUND

In section 22 of the 1998 Odyssey Service Manual, the fan control circuit diagram and the troubleshooting flowcharts show a fan control module. The 1995-97 Odyssey has a fan control module, nut the circuit was redesigned and the module was eliminated in the 1998 Odyssey. The service manual does not reflect this redesign; it shows the 1995-97 circuit and troubleshooting information.

The Fan Circuit Diagram on page 63 of the 1998 Odyssey Electrical Troubleshooting Manuals is correct.

CORRECTIVE ACTION

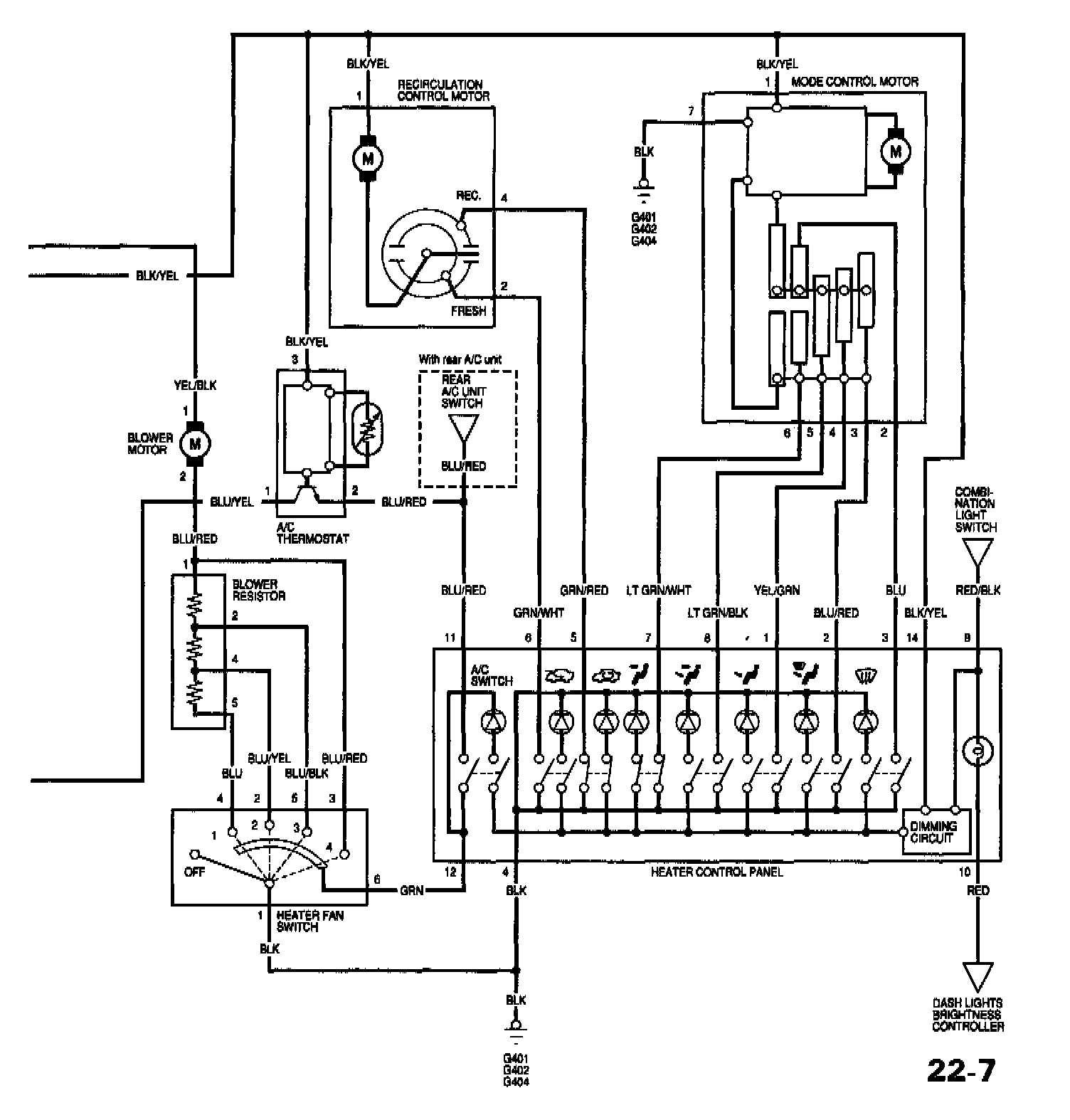

The corrected circuit diagram and troubleshooting flowchart pages follow. Mark an X through pages 22-6, 22-7, 22-21, 22-24, and 22-26 of your 1998 Odyssey Service Manual, and make a note on each page to refer to this service bulletin.

WARRANTY CLAIM INFORMATION

None; information only.

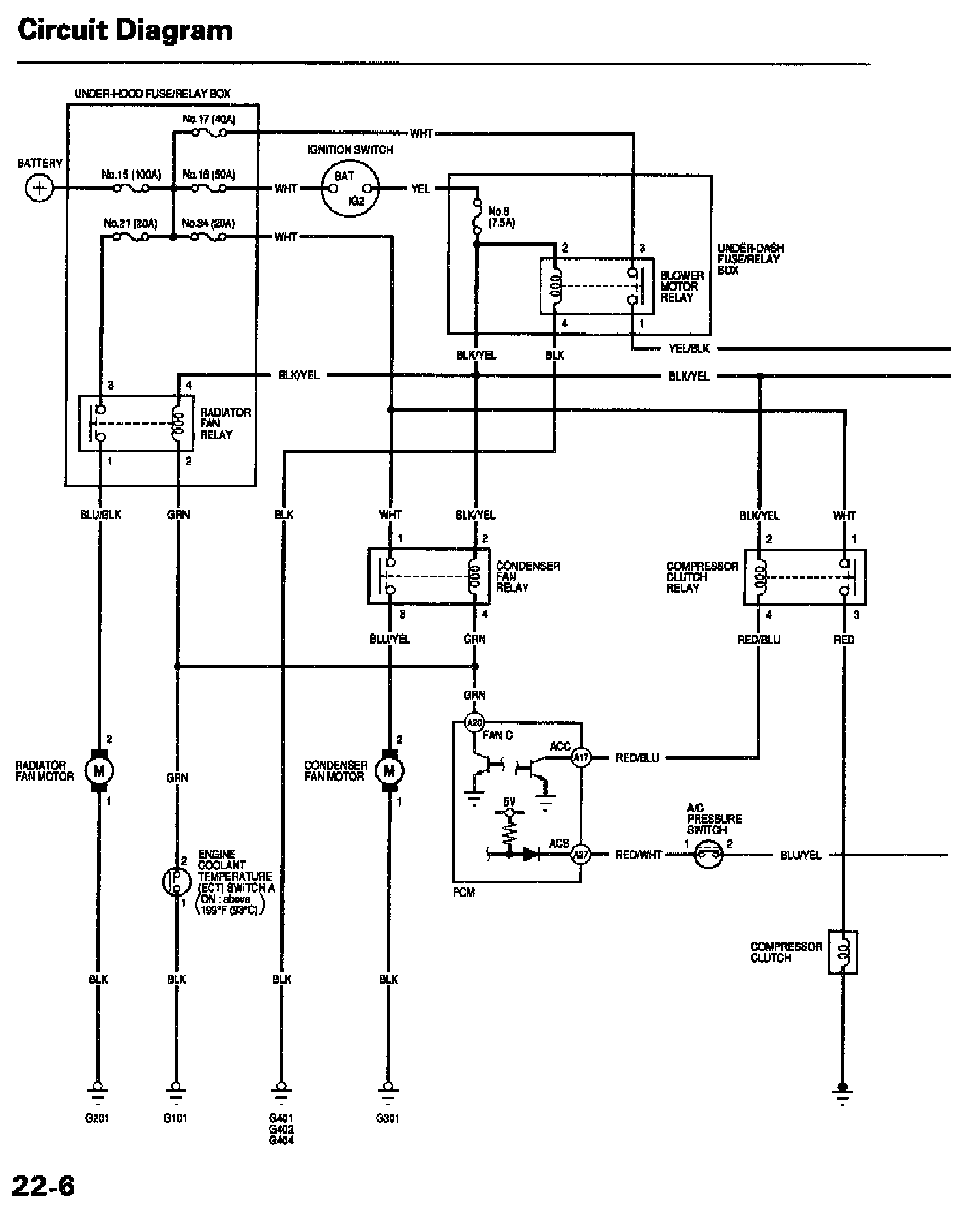

Circuit Diagram

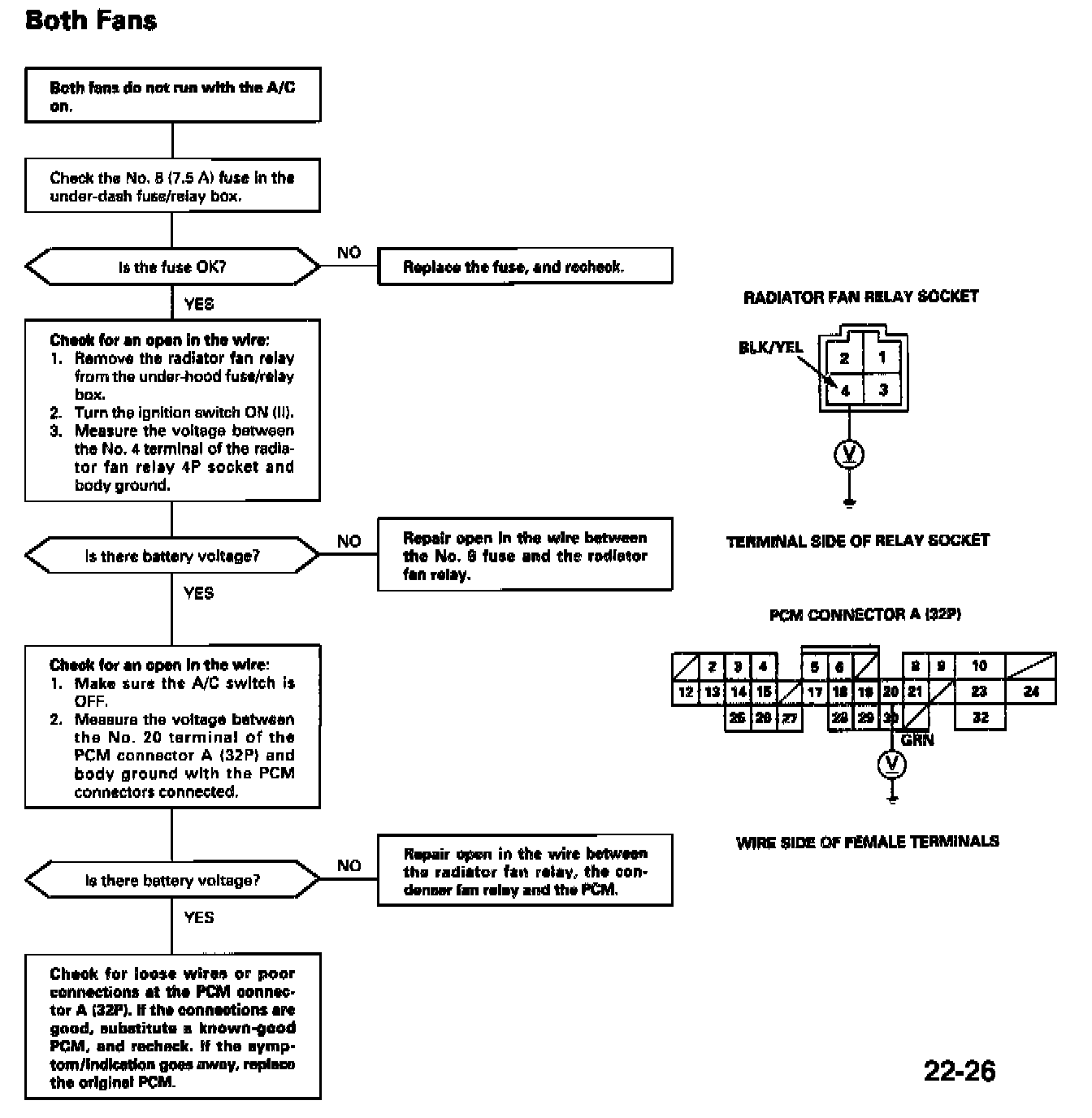

Troubleshooting
