Torque Specifications

Intake System:

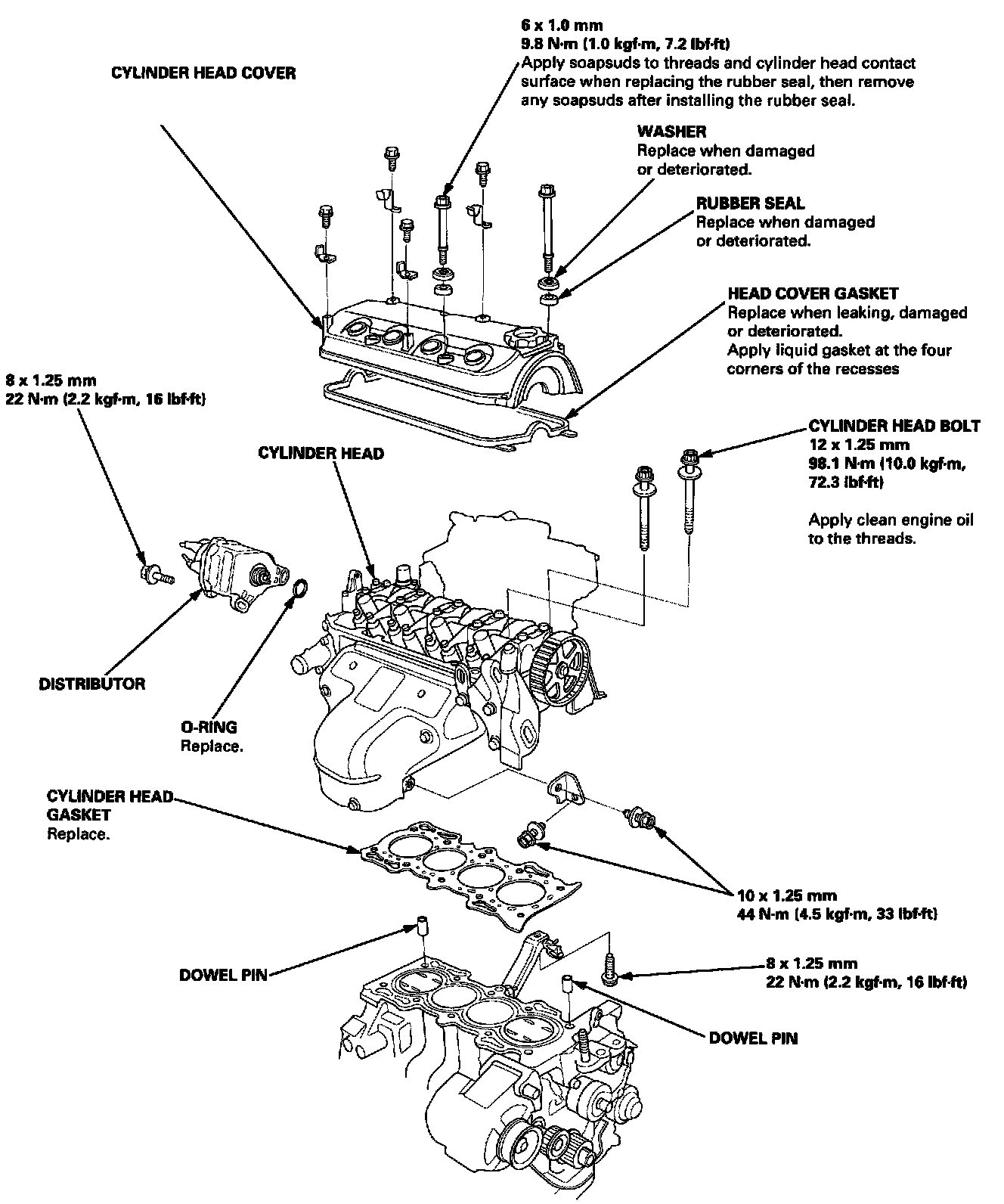

Cylinder Head:

Camshaft And Rocker Arm:

Torque Sequence:

Exhaust Manifold:

Timing Components:

Lower Block:

Balance Shafts:

Connecting Rods:

Drive Plate (A/T) Torque/Sequence:

TORQUE SPECIFICATIONS
Sealing Bolt 29 Nm (3.0 kgf.m, 22 ft. lbs.)
CKP/TDC Sensor 12 Nm (1.2 kgf.m, 8.7 ft. lbs.)
Rear Attaching Strap (Head) Bolts 22 Nm (2.2 kgf.m, 16 ft. lbs.)
Manifold To Block Bracket 44 Nm (4.5 kgf.m, 33 ft. lbs.)
Bearing Cap Bridge Bolts 69 Nm (7.0 kgf.m, 51 ft. lbs.)
