Problem Symptom Table

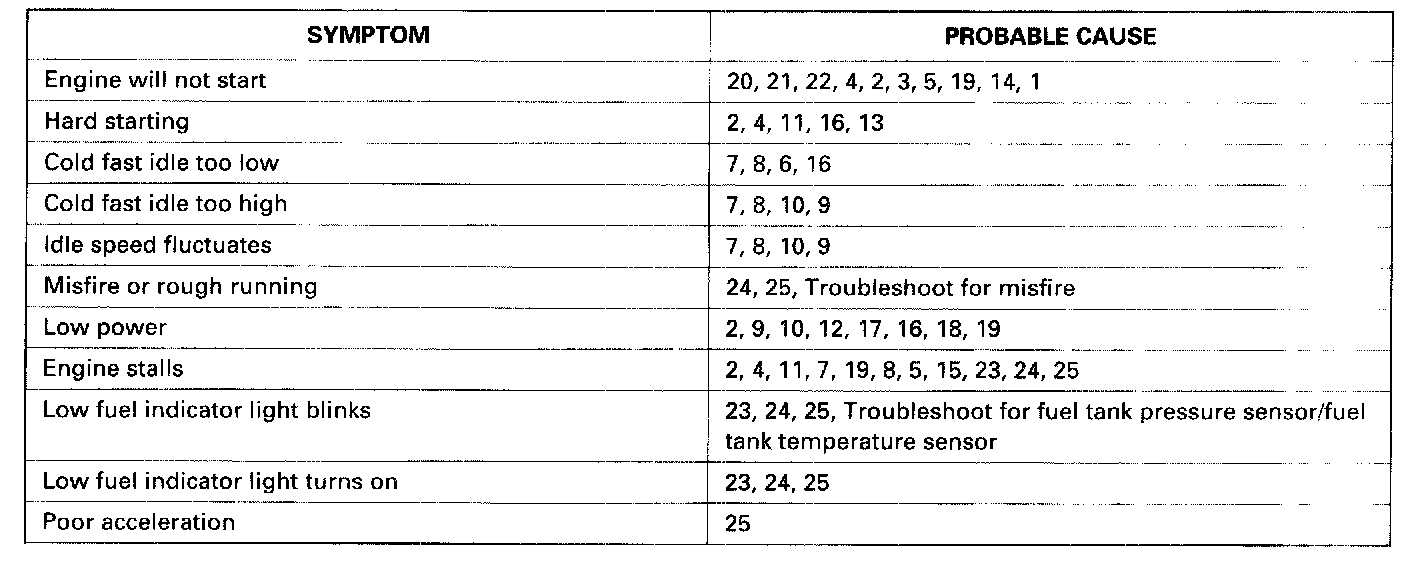

Symptom Chart

Listed above are symptoms and probable causes for problems that DO NOT cause the Malfunction indicator Lamp (MIL) to come on.

Troubleshoot each probable cause in the order listed (from left to right) until the symptom is eliminated.

The probable cause can be found below.

Other Probable Causes for an engine that will not start:
- Compression - Starting system
- Intake air leakage - Overheating
- Engine locked up - Battery
- Timing belt

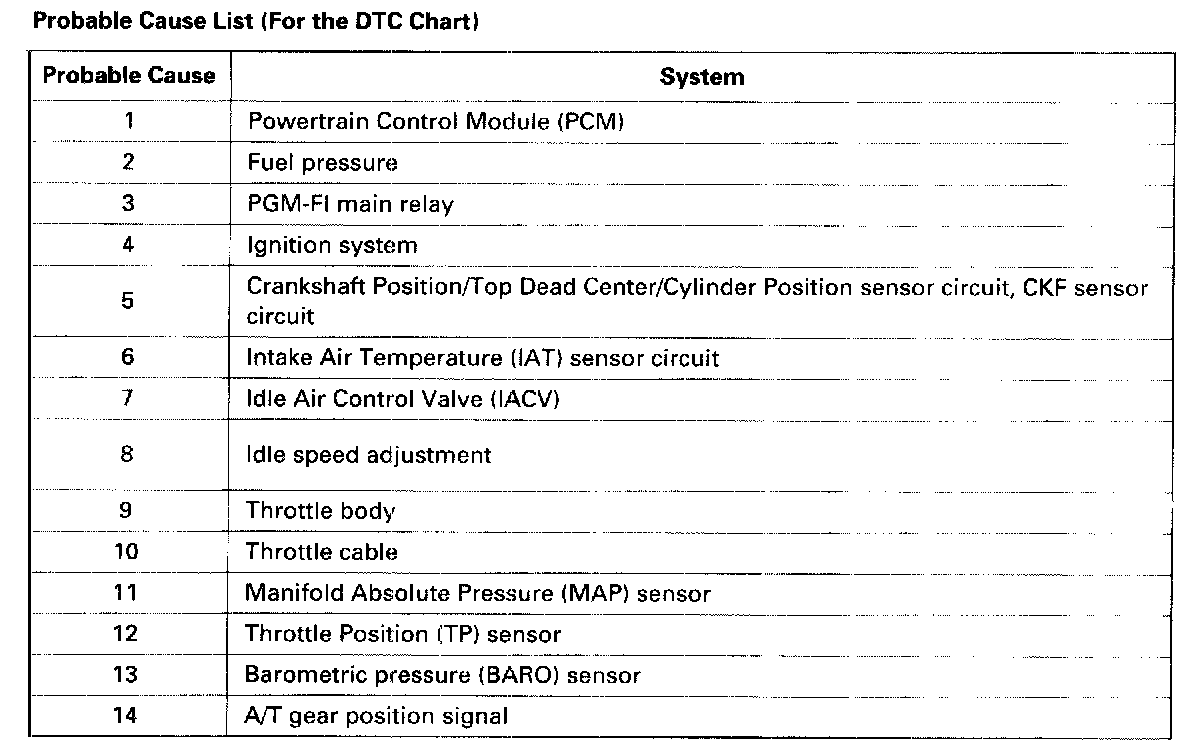

Probable Cause List (For DTC Chart) Part 1:

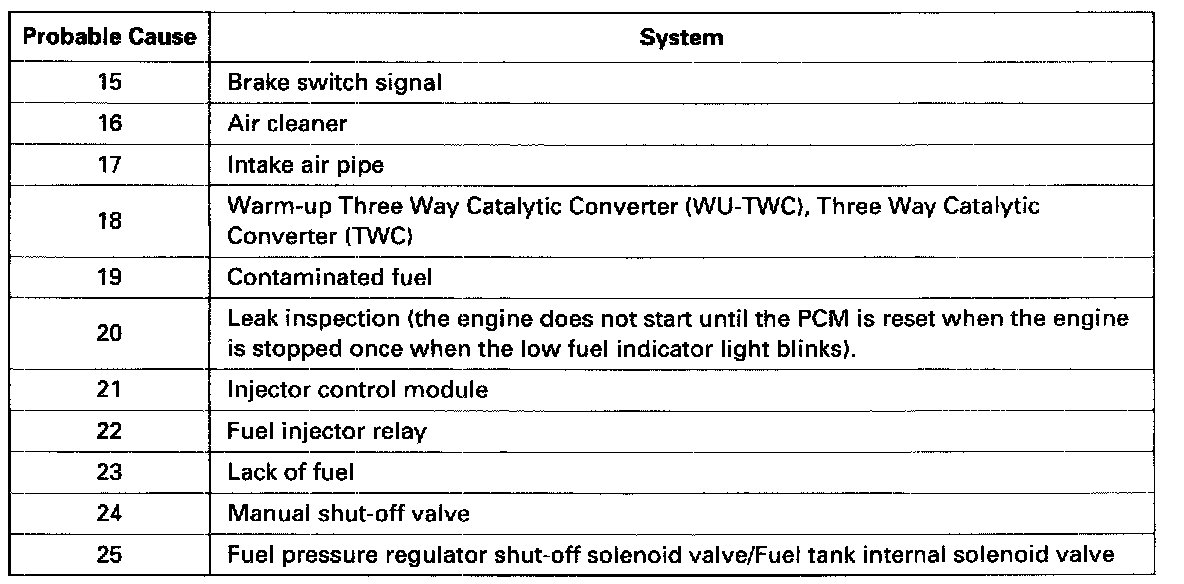

Probable Cause List (For DTC Chart) Part 2:

Probable Cause List

(For DTC Chart see "Trouble Code Descriptions") Diagnostic Trouble Code Descriptions
