Automatic Transmission/Transaxle

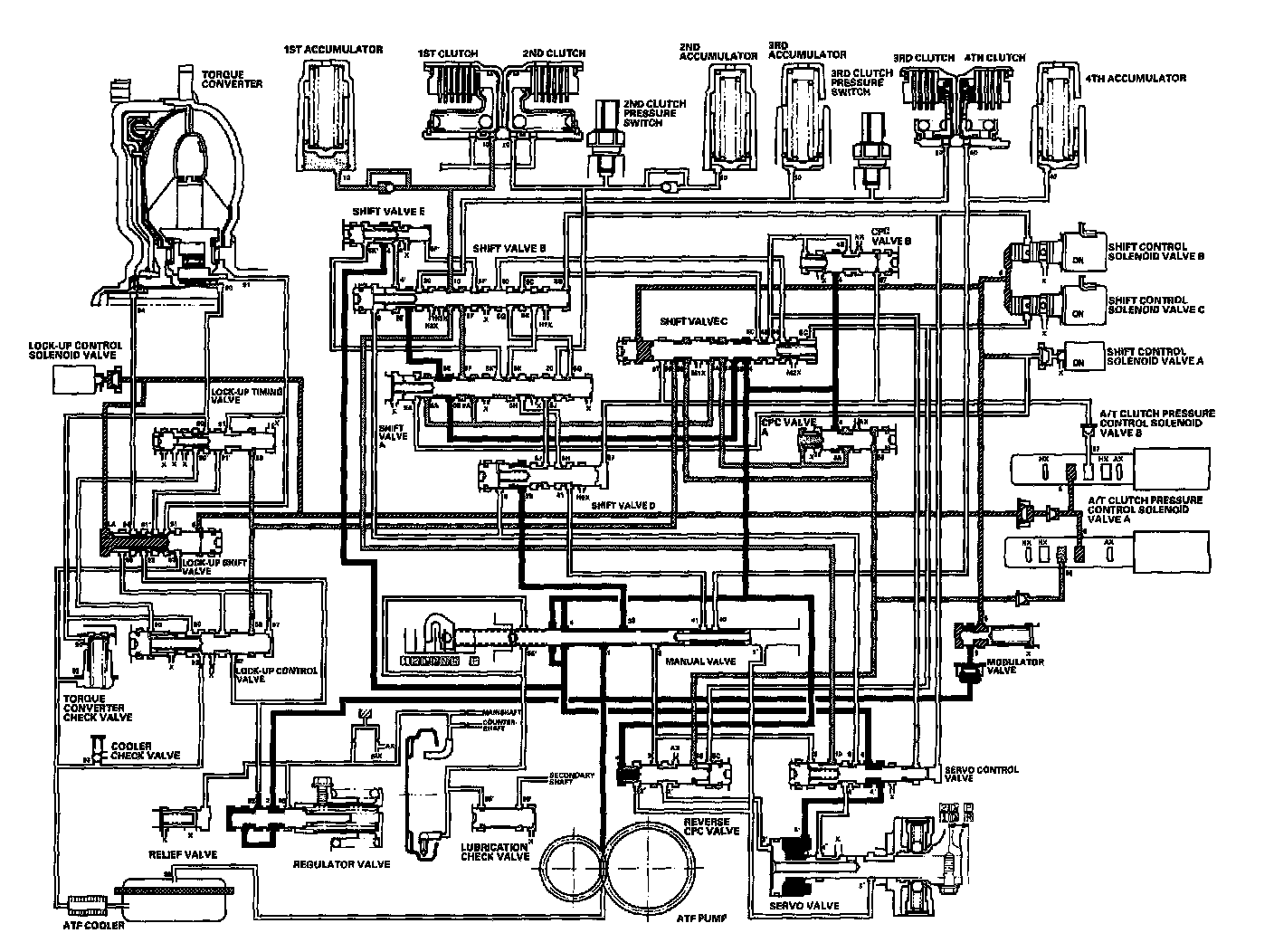

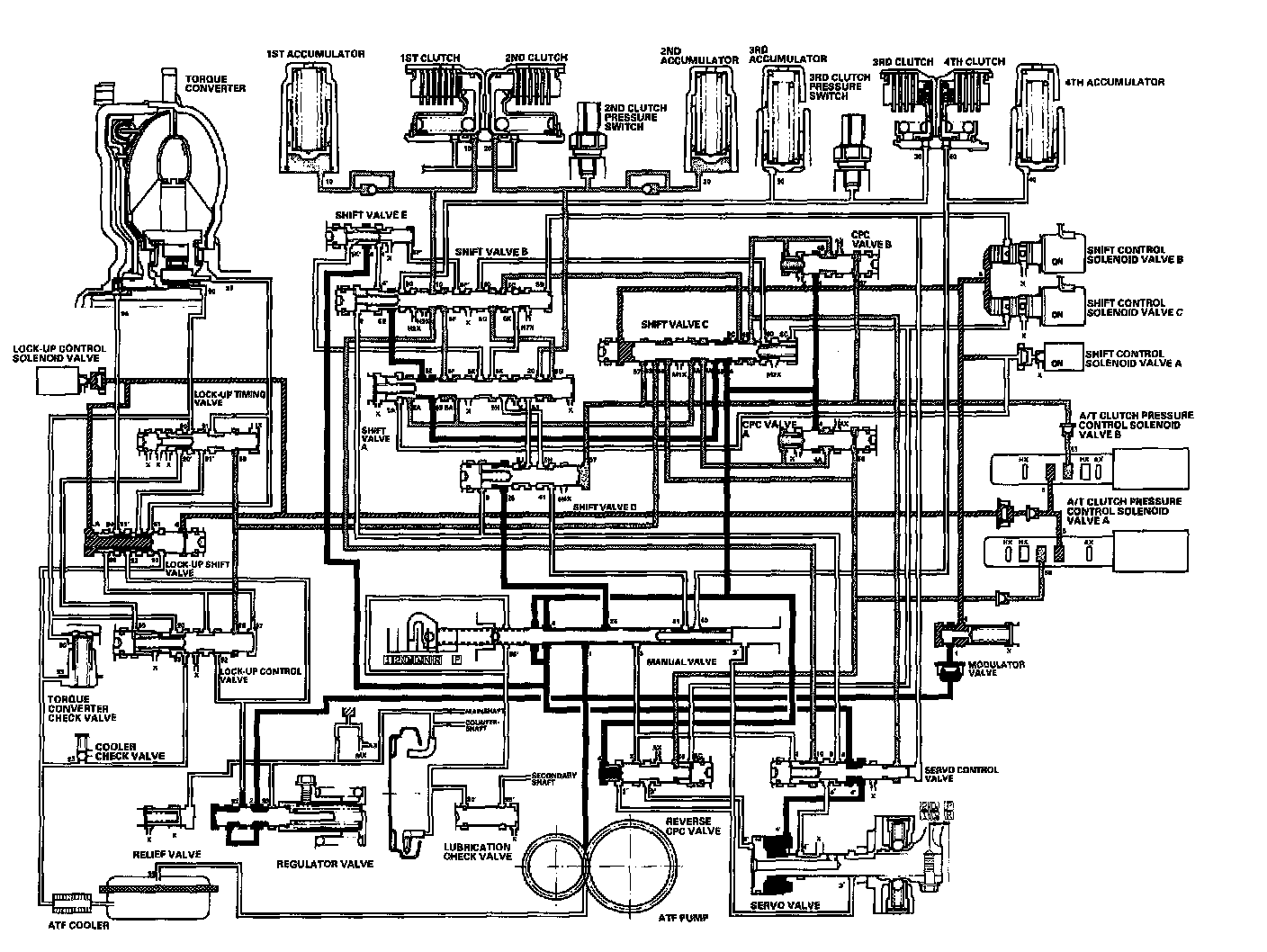

[N] Position

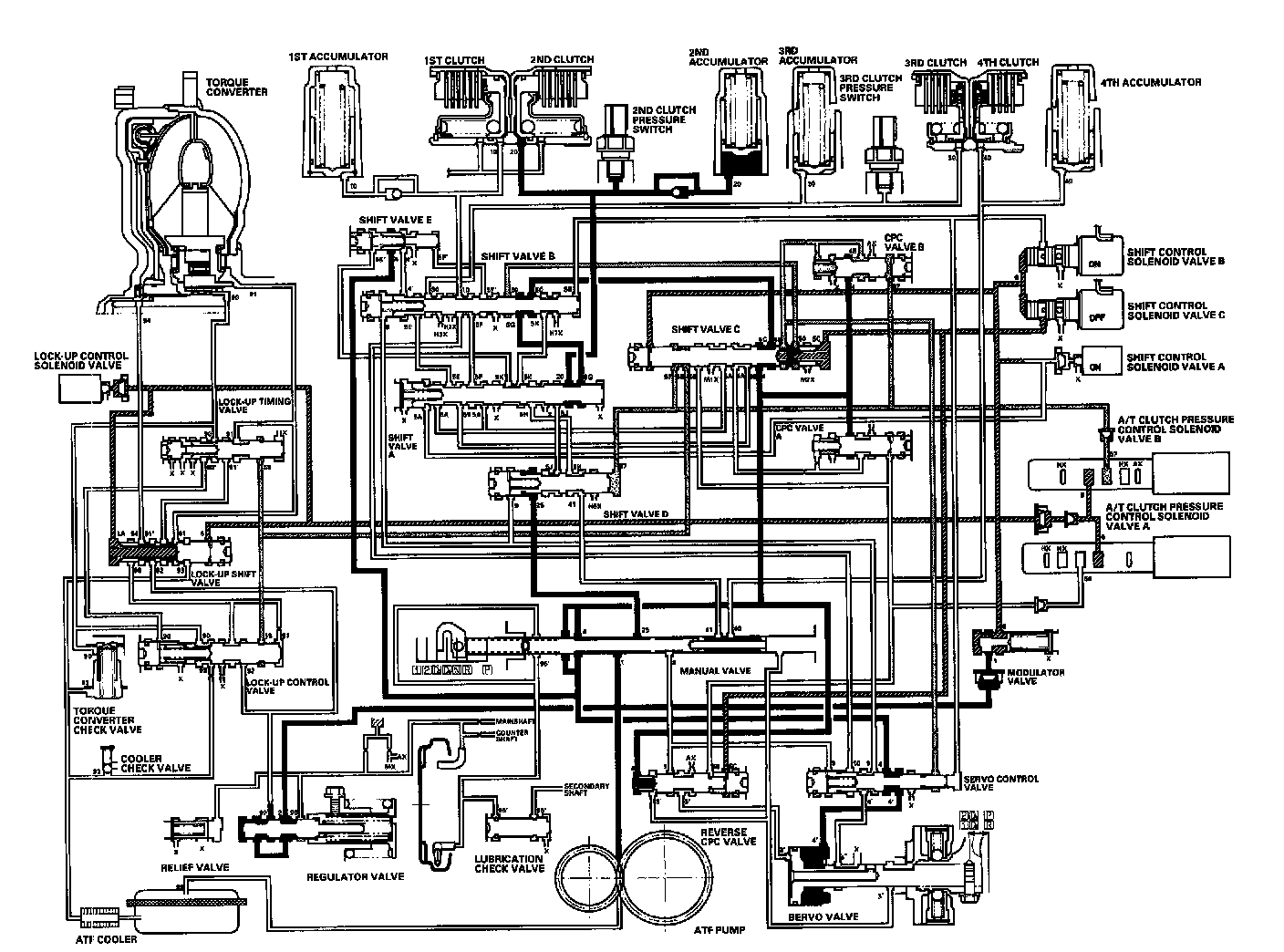

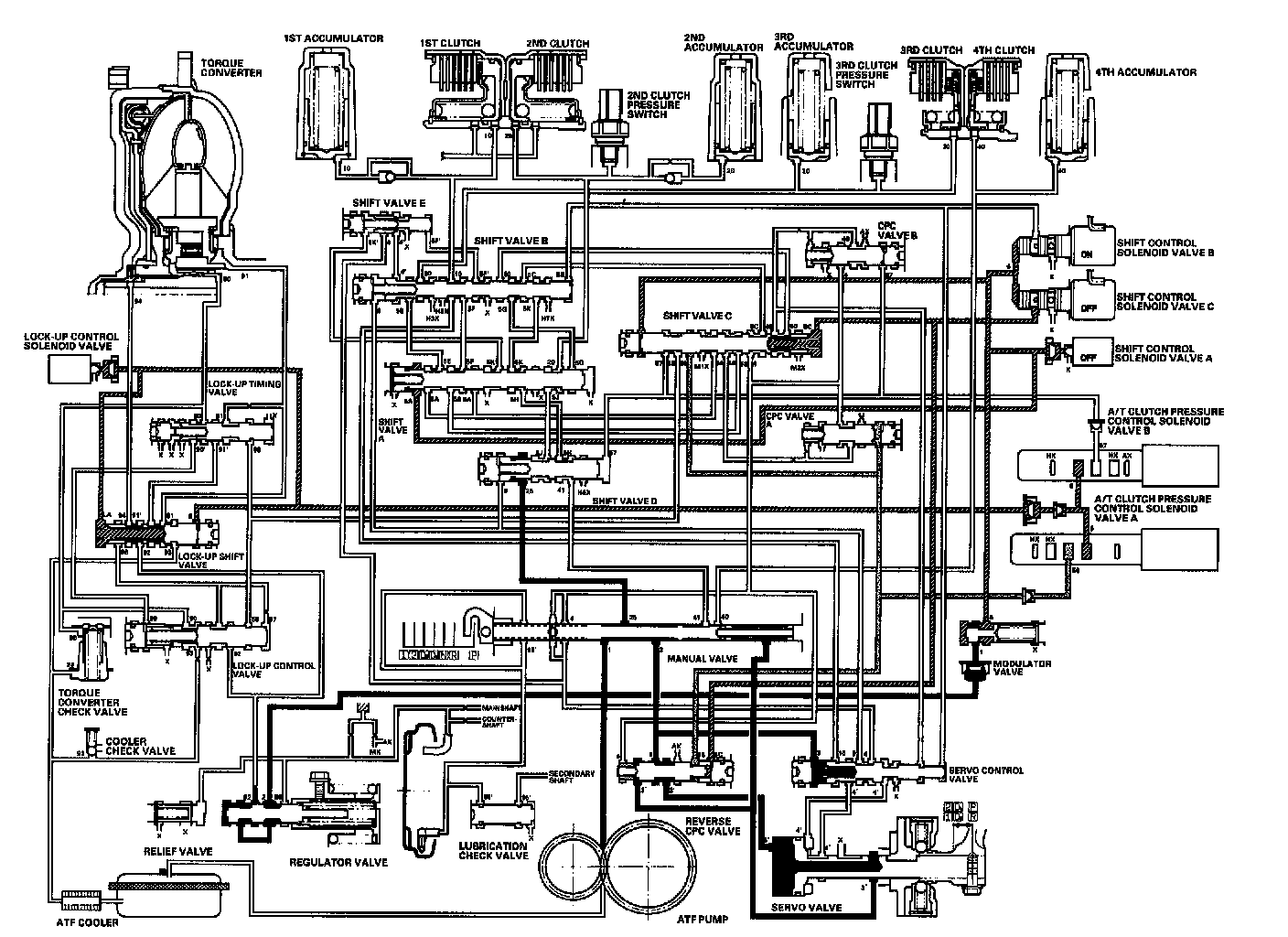

[D4] Position: 1st gear shifting from [N] position

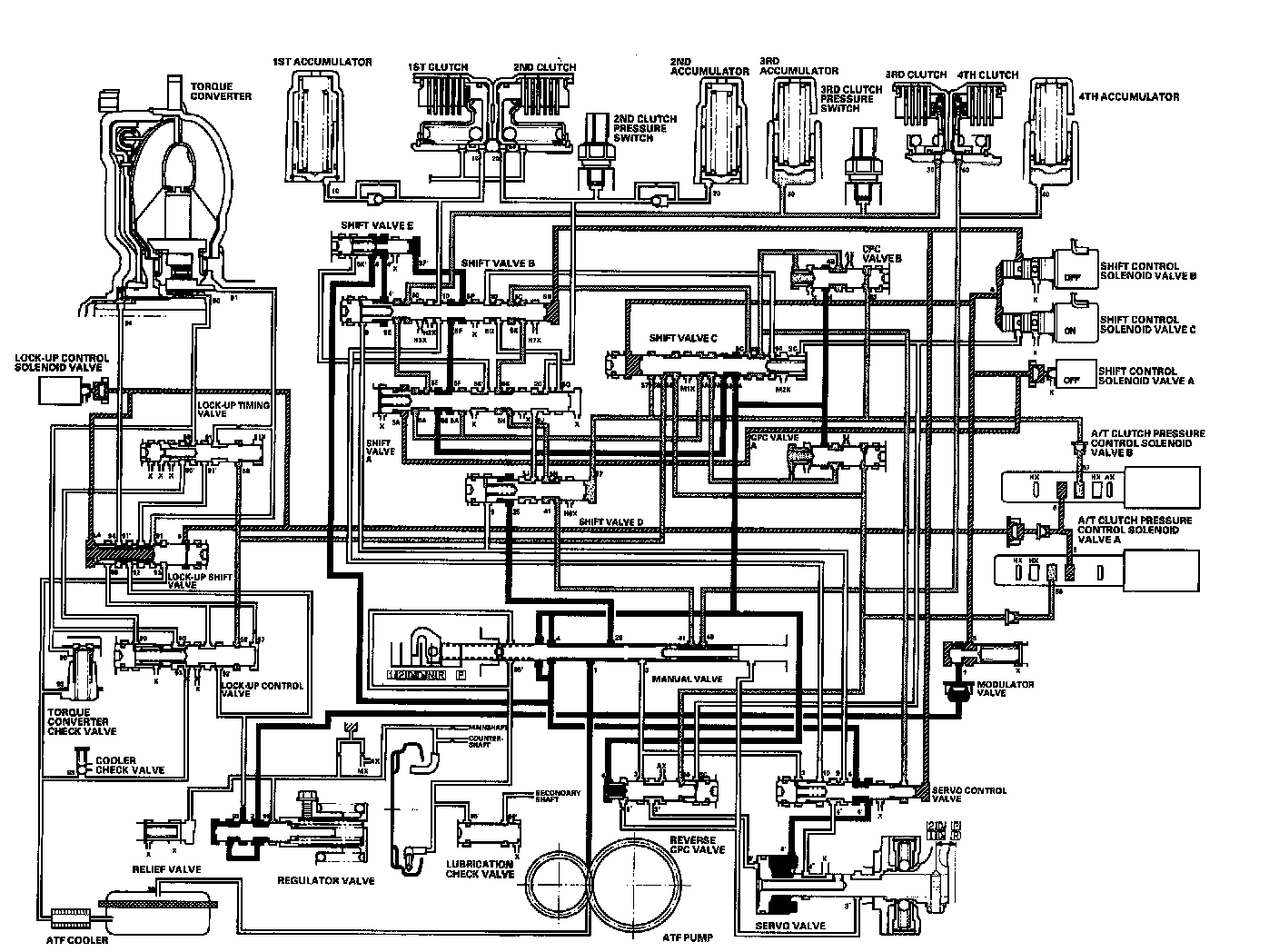

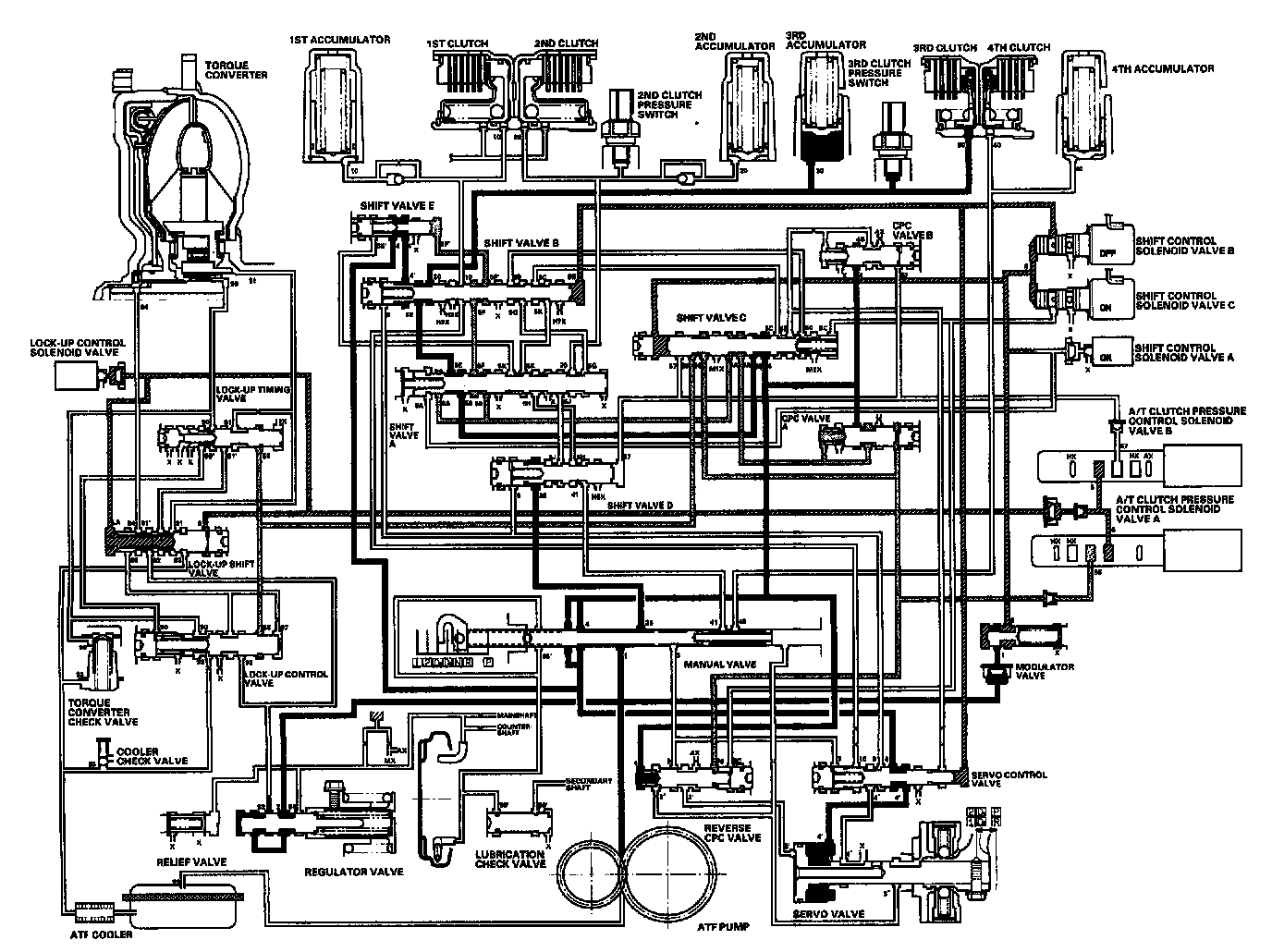

[D4] Position: Driving in 1st gear

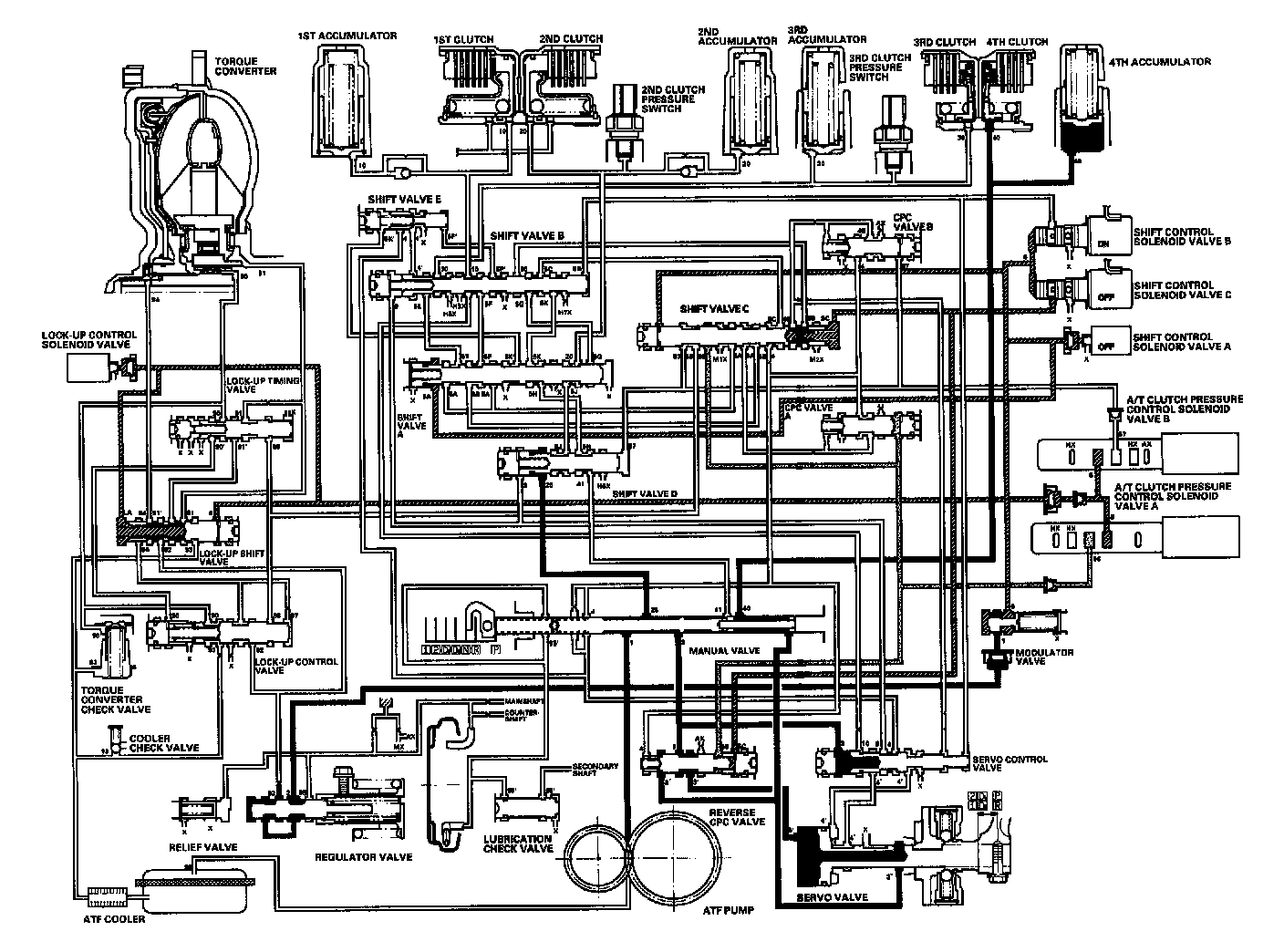

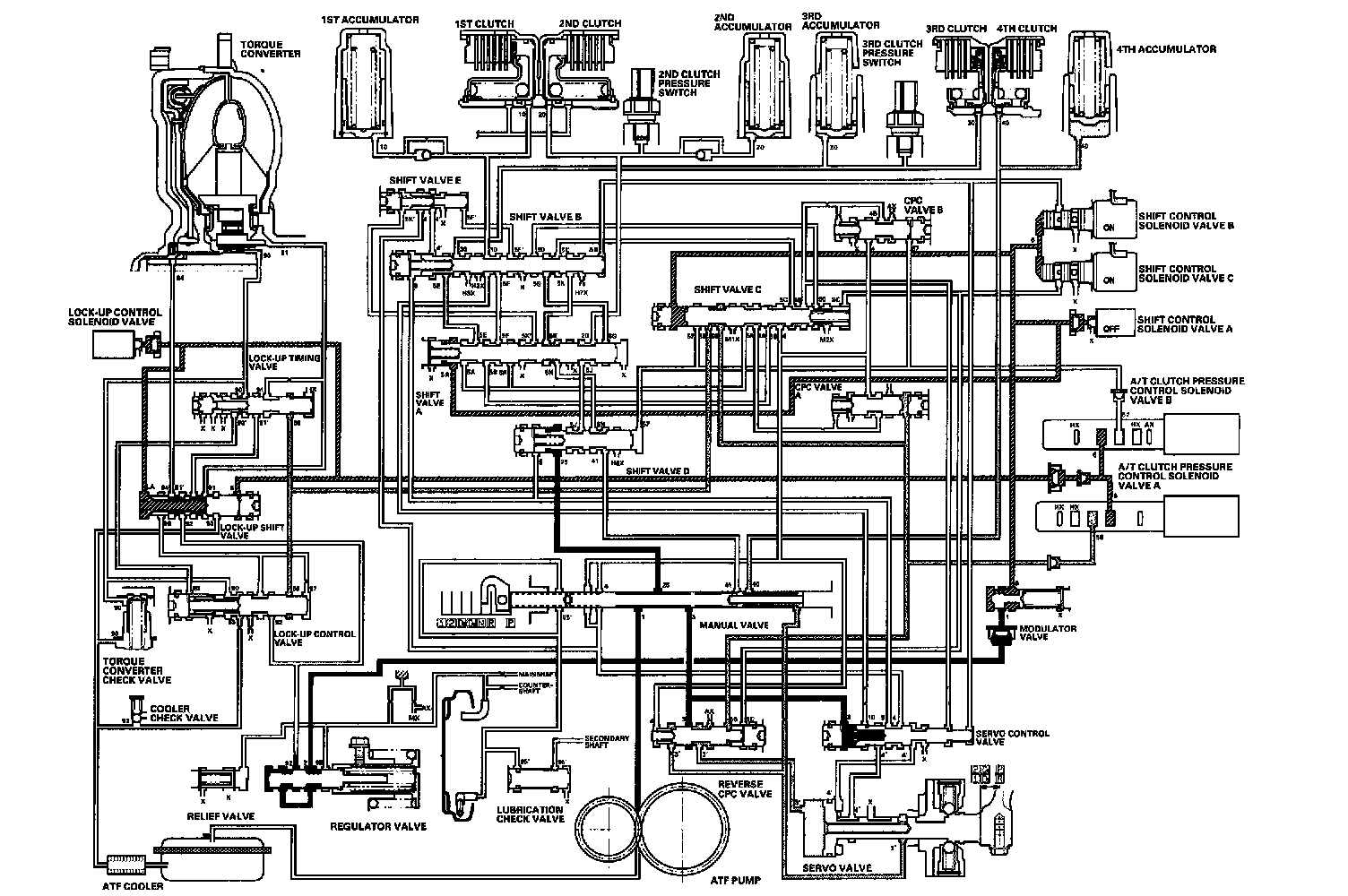

[D4] Position: Shifting between 1st gear and 2nd gear

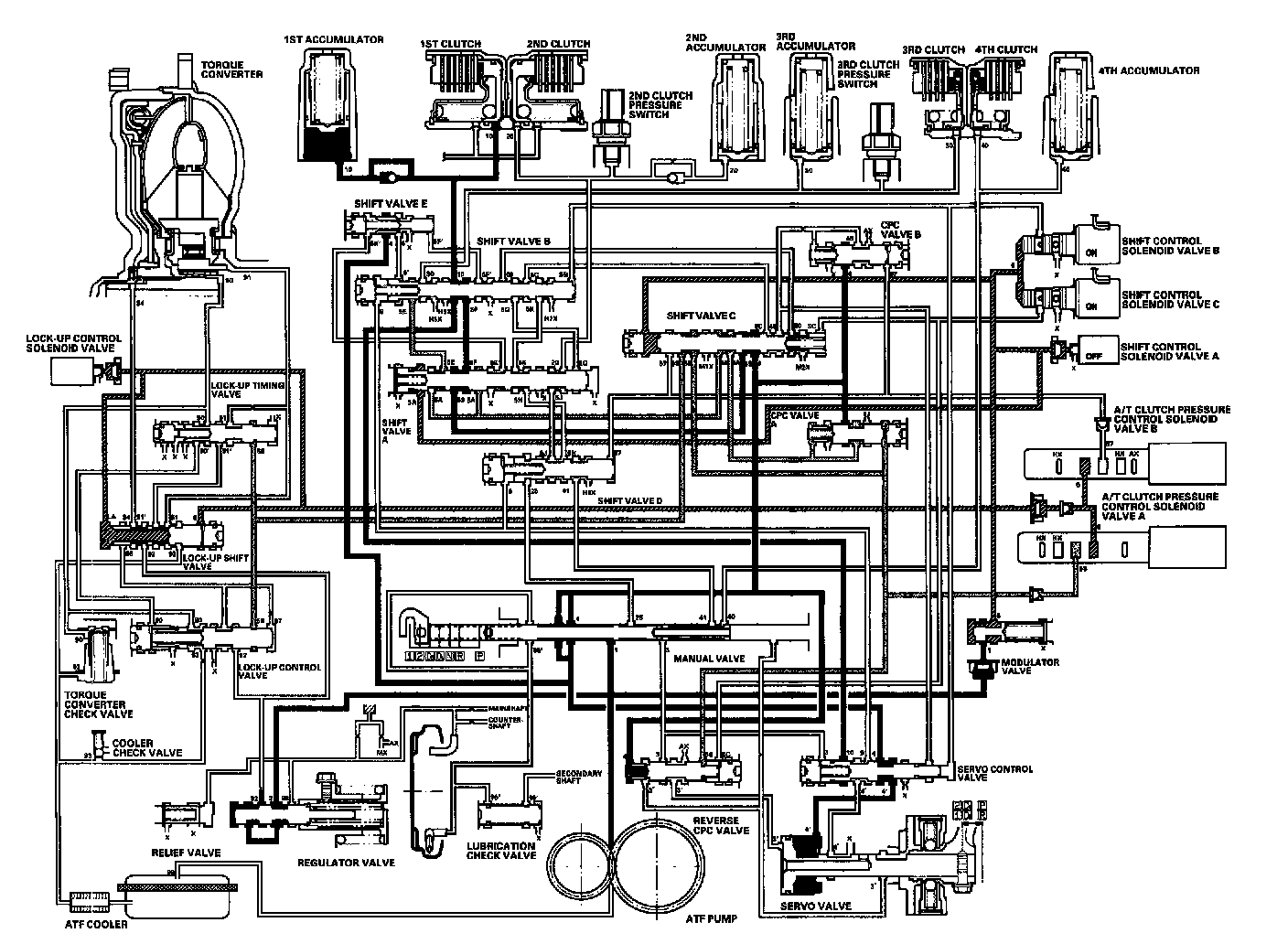

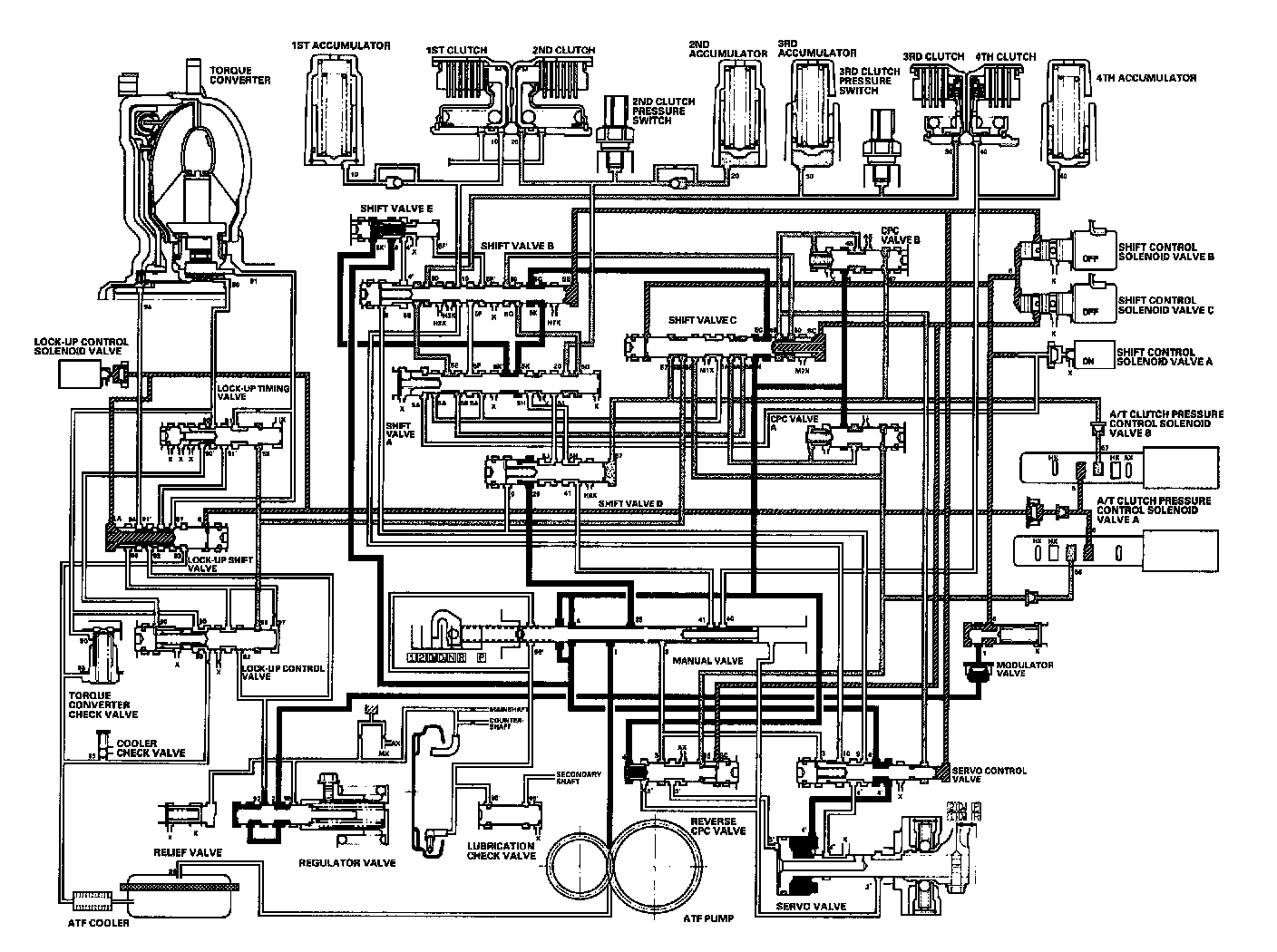

[D4] Position: Driving in 2nd gear

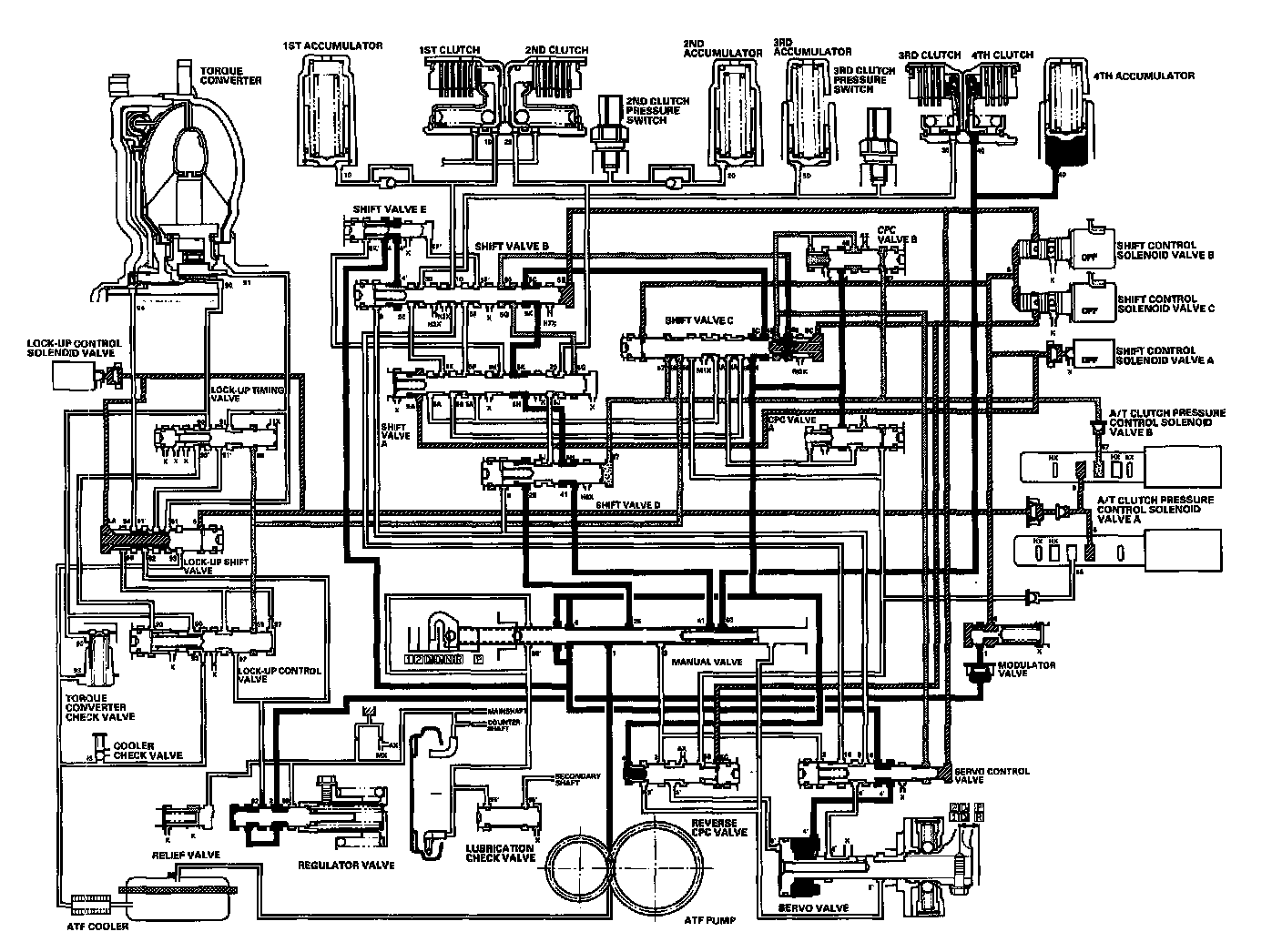

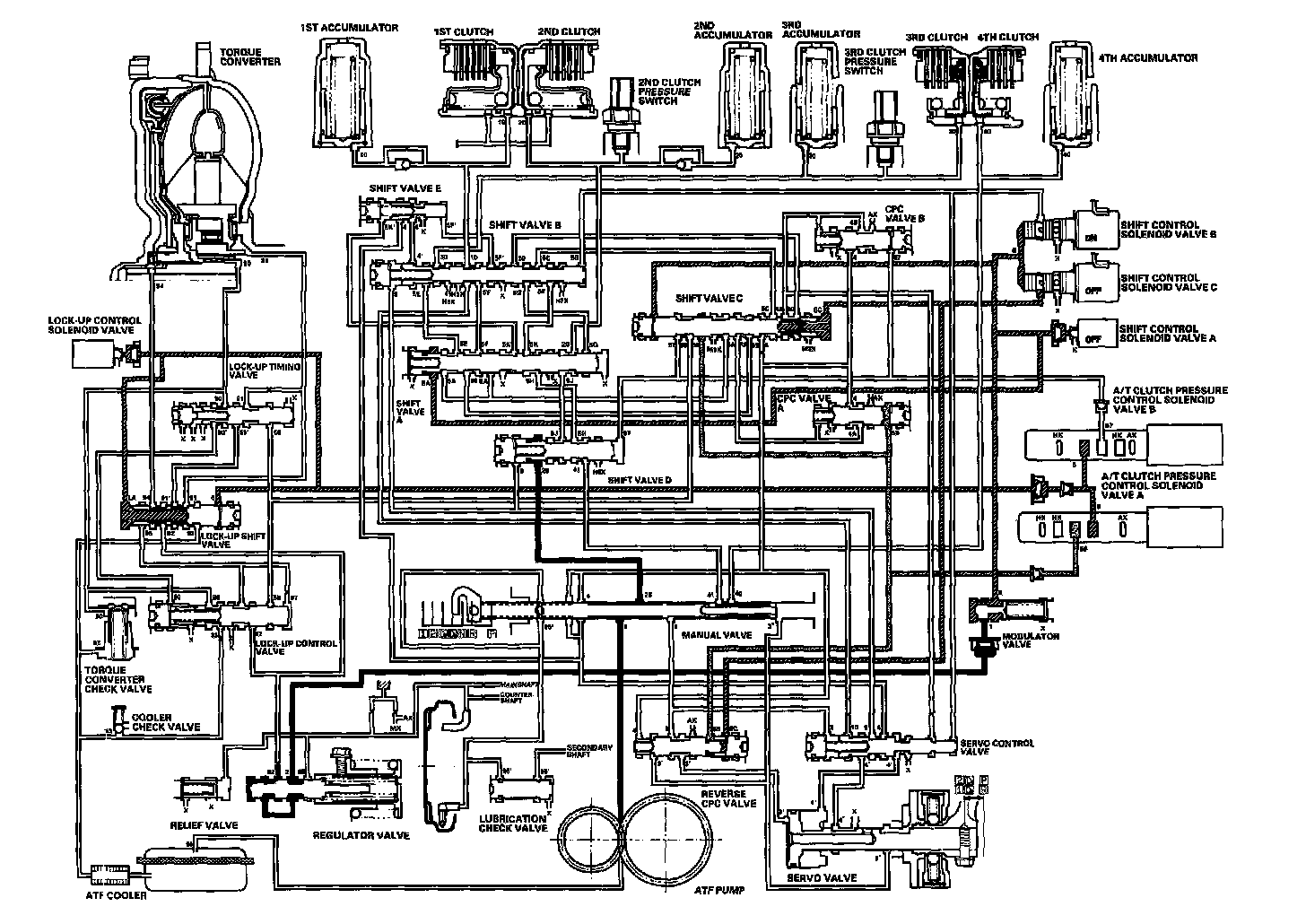

[D4] Position: Shifting between 2nd gear and 3rd gear

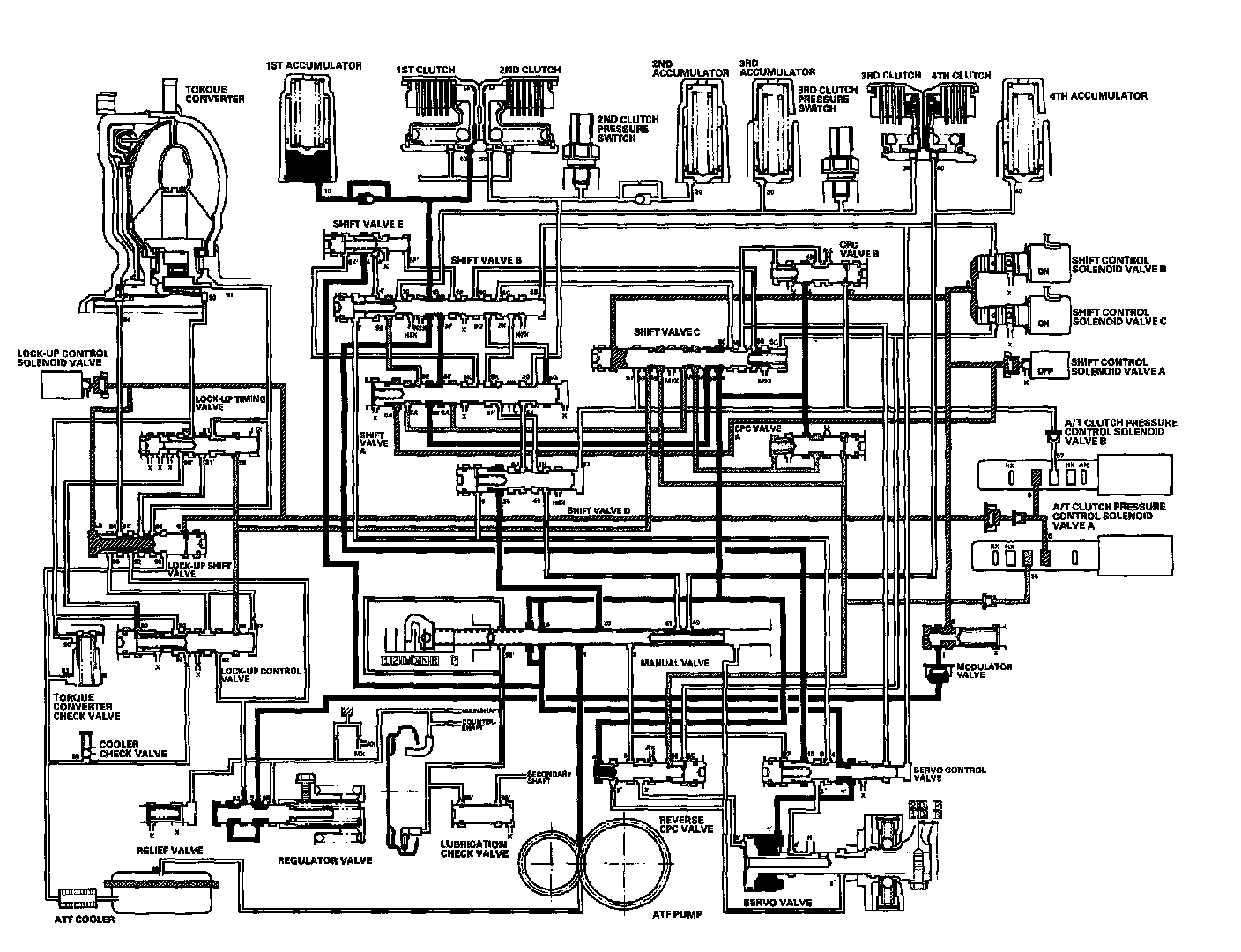

[D4] Position: Driving in 3rd gear

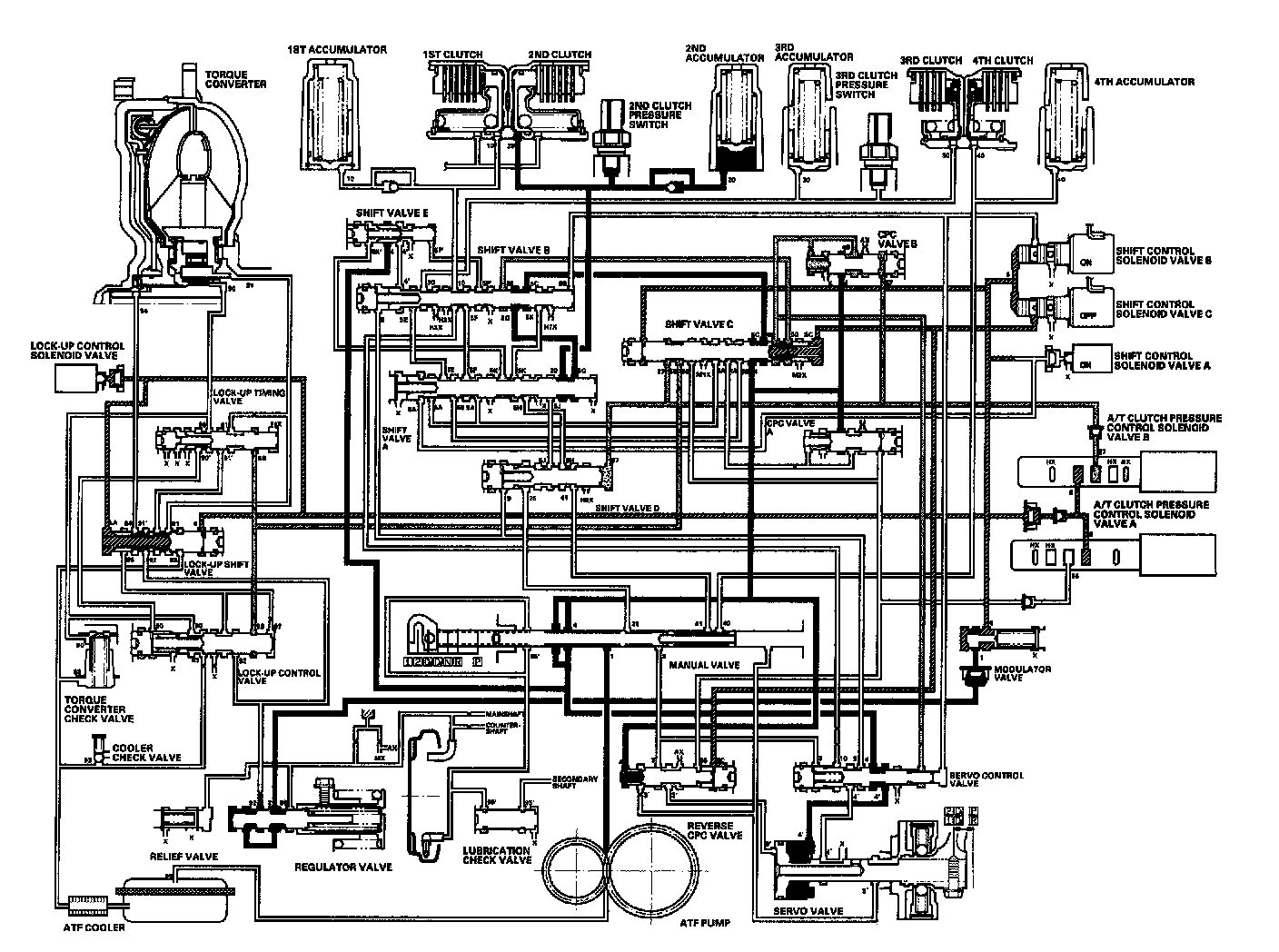

[D4] Position: Shifting between 3rd gear and 4th gear





[D4] Position: Driving in 4th gear





[2] Position





[1] Position





[R] Position: Shifting to R position from P or [N] position





[R] Position: Driving in reverse gear





[P] Position
