With Navigation System

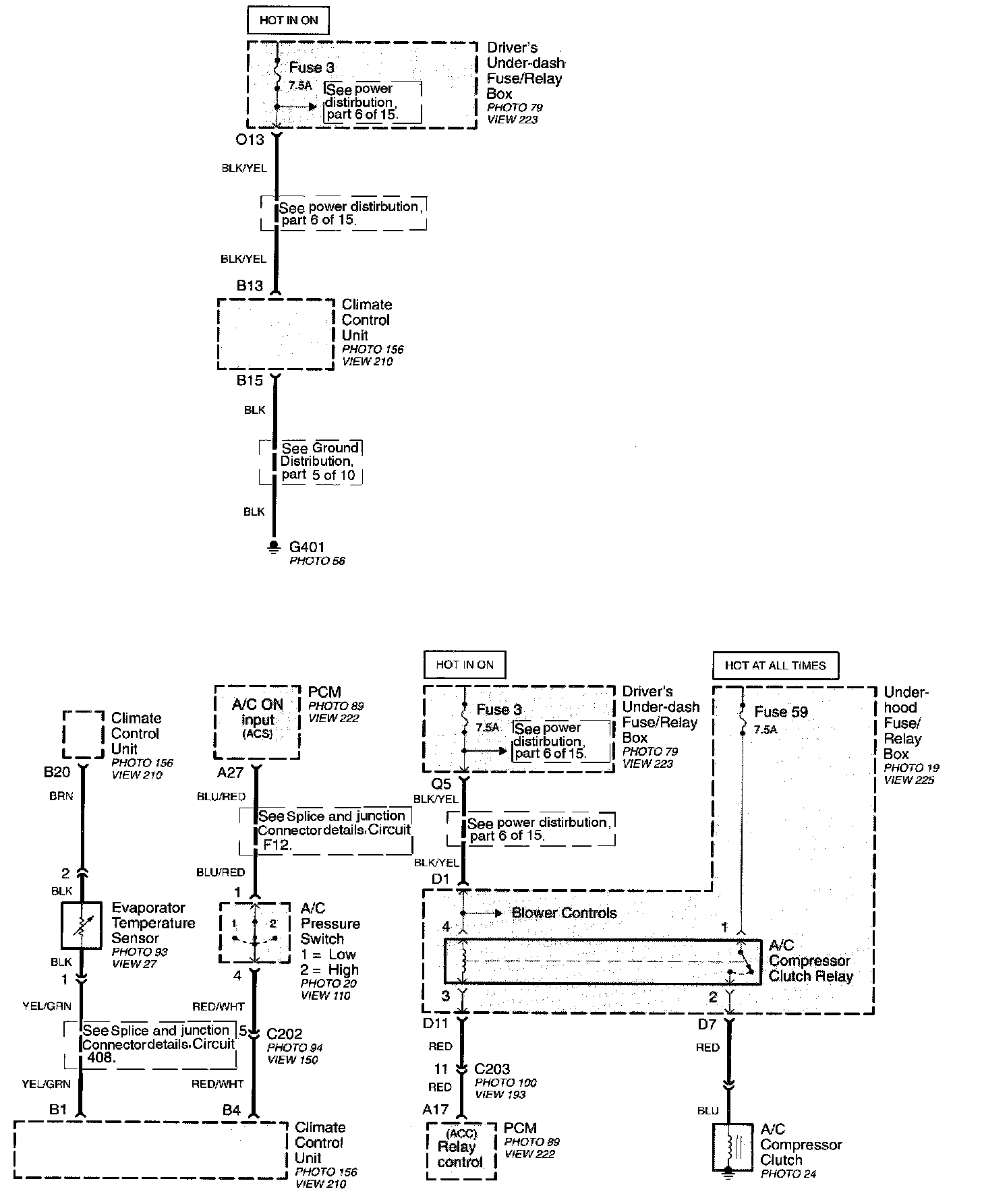

Schematic-With Navigation System (Part 1 Of 4):




A/C Pressure Switch
A/C Compressor Clutch
Climate Control Unit
Driver's Under-Dash Fuse/Relay Box
Evaporator Temperature Sensor
PCM
Passenger's Under-Dash Fuse/Relay Box
Under-Hood Fuse/Relay Box
- Blower Controls
- A/C Compressor Clutch Relay

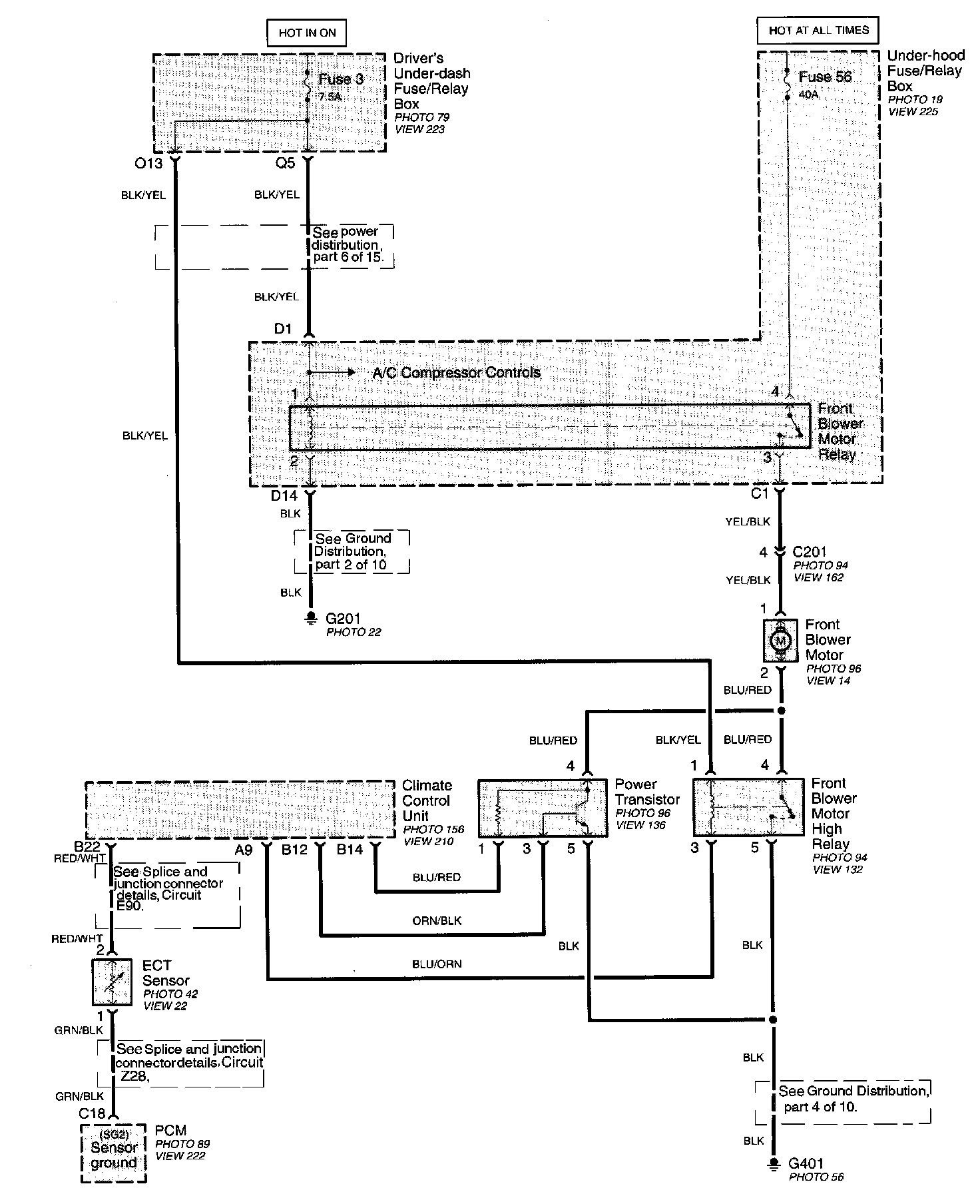

Schematic-With Navigation System (Part 2 Of 4):




Climate Control Unit
Driver's Under-Dash Fuse/Relay Box
ECT Sensor
Front Blower Motor
Front Blower Motor High Relay
PCM
Power Transistor
Under-Hood Fuse/Relay Box
- Front Blower Motor Relay
- A/C Compressor Controls

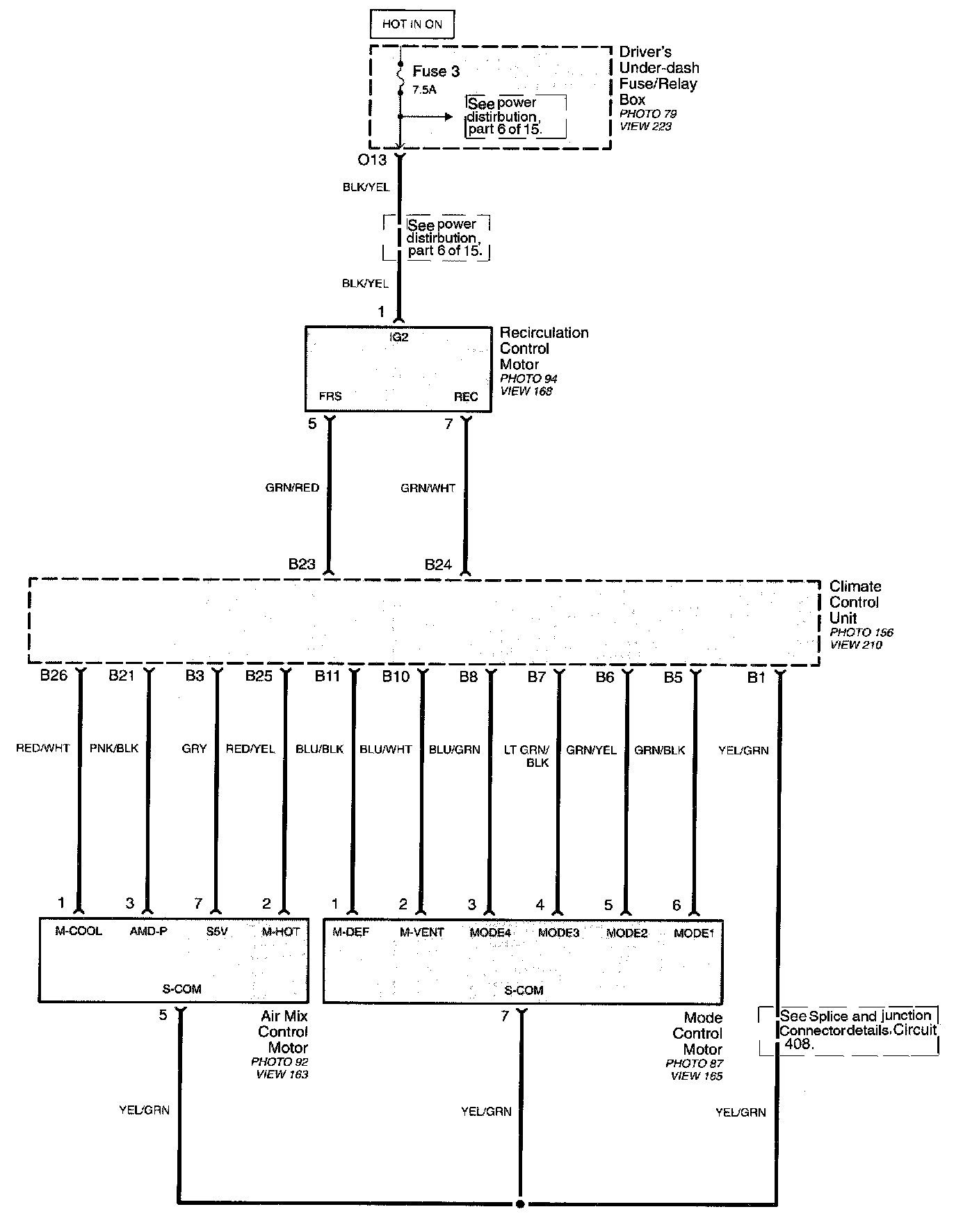

Schematic-With Navigation System (Part 3 Of 4):




Air Mix Control Motor
Climate Control Unit
Driver's Under-Dash Fuse/Relay Box
Mode Control Motor
Recirculation Control Motor

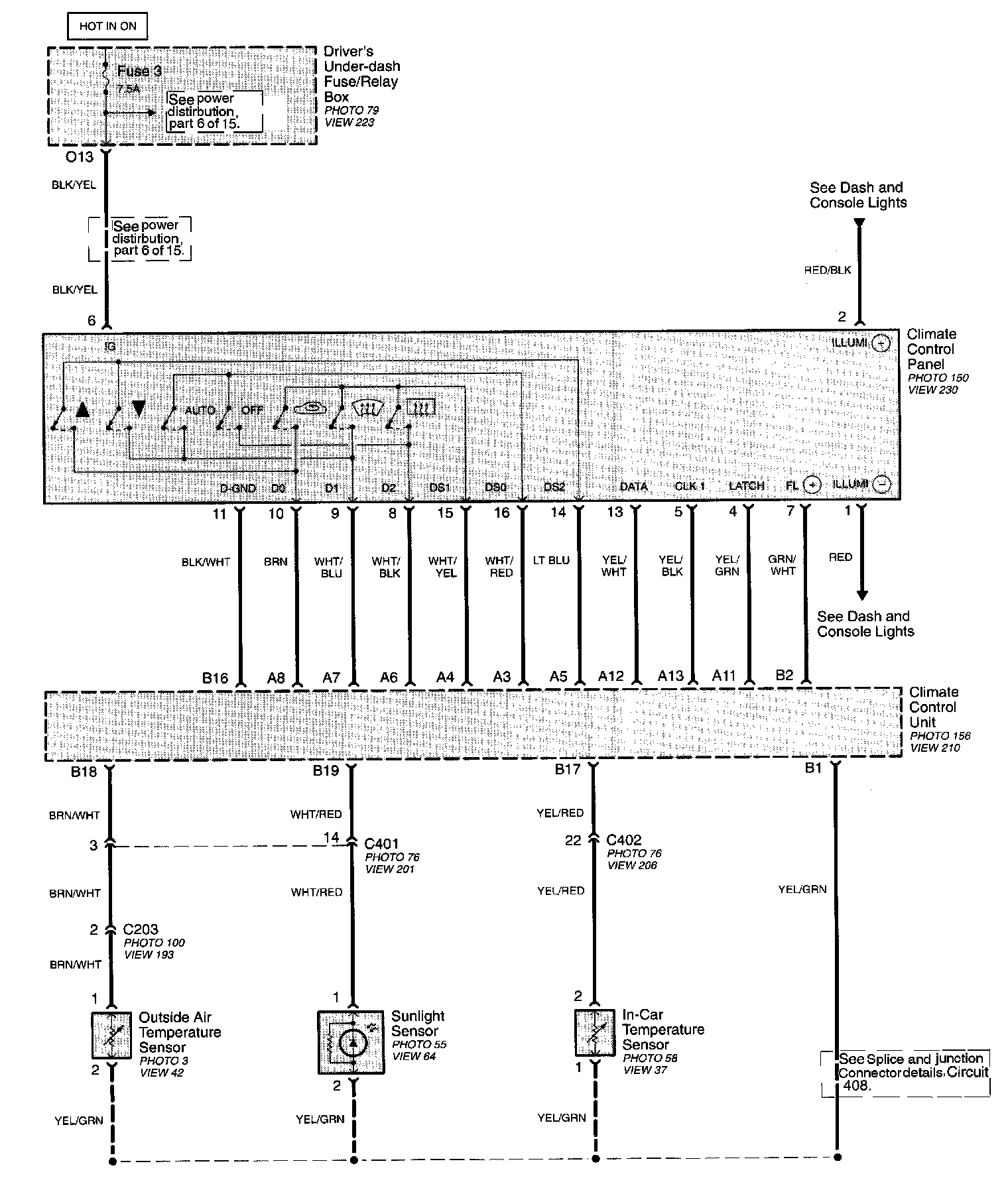

Schematic-With Navigation System (Part 4 Of 4):




Climate Control Panel
Climate Control Unit
In-Car Temperature Sensor
Outside Air Temperature Sensor
Sunlight Sensor
