Power Distribution

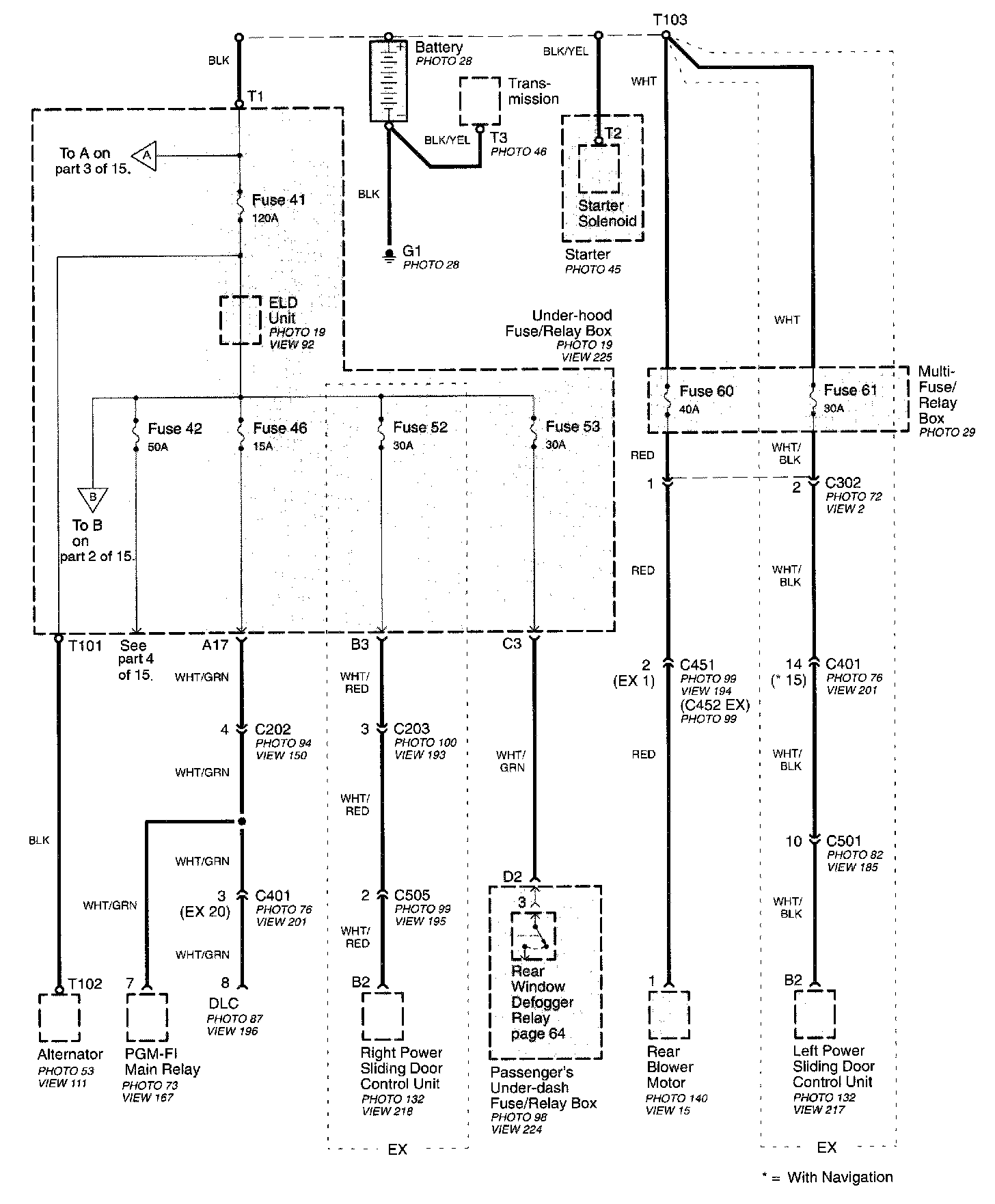

Fuses 41, 46, 52, 53, 60 And 61 (Part 1 Of 15):




Alternator
Battery
DLC
Left Power Sliding Door Control Unit
Multi-Fuse/Relay Box
PGM-FI Main Relay
Passenger's Under-dash Fuse/Relay Box
- Rear Window Defogger Relay
Rear Blower Motor
Right Power Sliding Door Control Unit
Starter
- Starter Solenoid
Under-hood Fuse/Relay Box
- ELD Unit

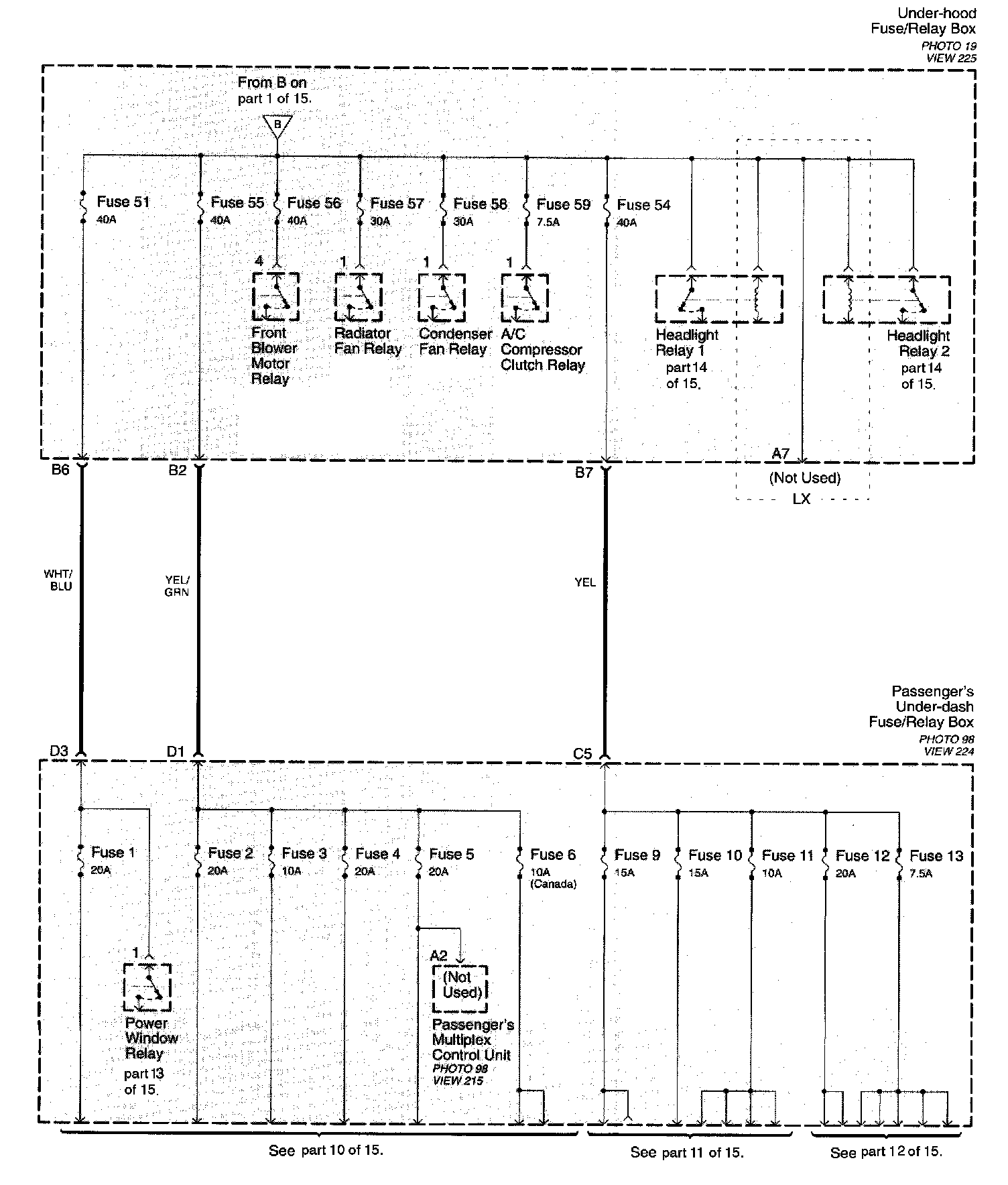

Fuses 51, 54, 55, 56, 57, 58 And 59 (Part 2 Of 15):




Passenger's Under-dash Fuse/Relay Box
- Power Window Relay
- Passenger's Multiplex Control Unit
Under-hood Fuse/Relay Box
- Front Blower Motor Relay
- Radiator Fan Relay
- Condenser Fan Relay
- A/C Compressor Clutch Relay
- Headlight Relay 1
- Headlight Relay 2

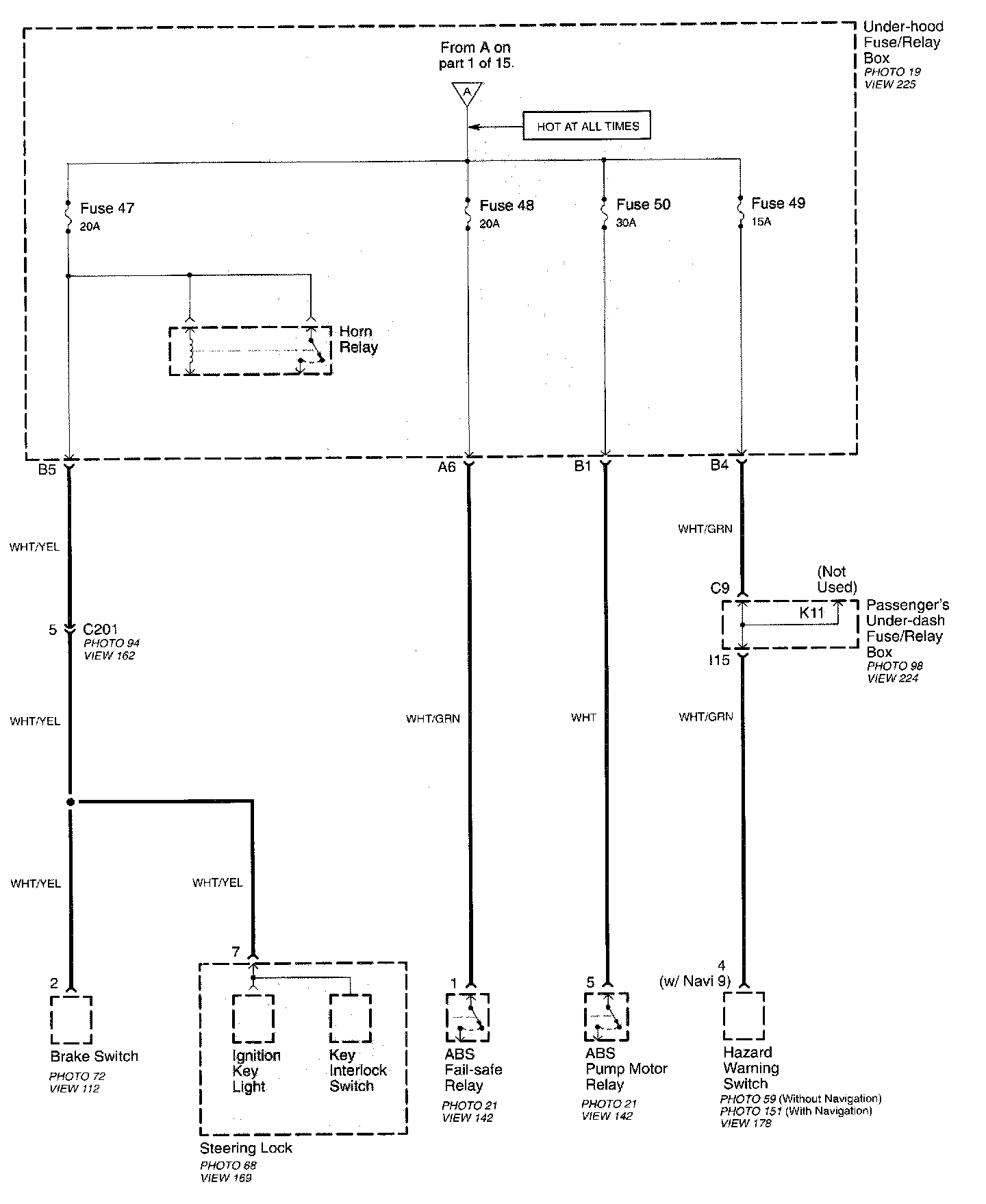

Fuses 47, 48, 49 And 50 (Part 3 Of 15):




ABS Fail-Safe Relay
ABS Pump Motor Relay
Brake Switch
Hazard Warning Switch
Passenger's Under-dash Fuse/Relay Box
Steering Lock
- Ignition Key Light
- Key Interlock Switch
Under-hood Fuse/Relay Box
- Horn Relay

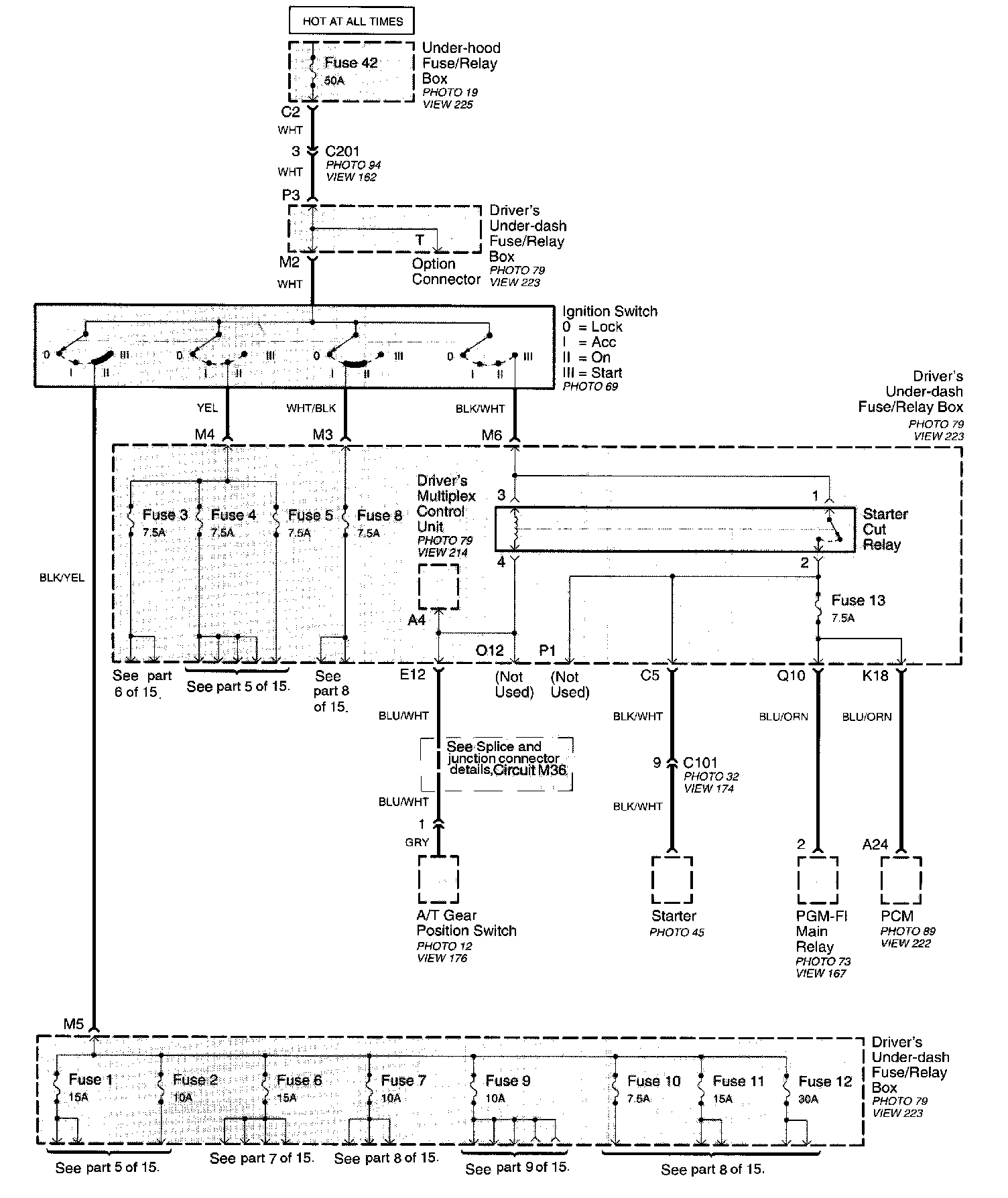

Fuse 42 And Fuse 13 In Driver's Fuse/Relay Box (Part 4 Of 15):




Ignition Switch
Driver's Under-dash Fuse/Relay Box
- Driver's Multiplex Control Unit
- Starter Cut Relay
- A/T Gear Position switch
- Starter
- PGM-FI Main Relay
- PCM
Under-hood Fuse/Relay Box

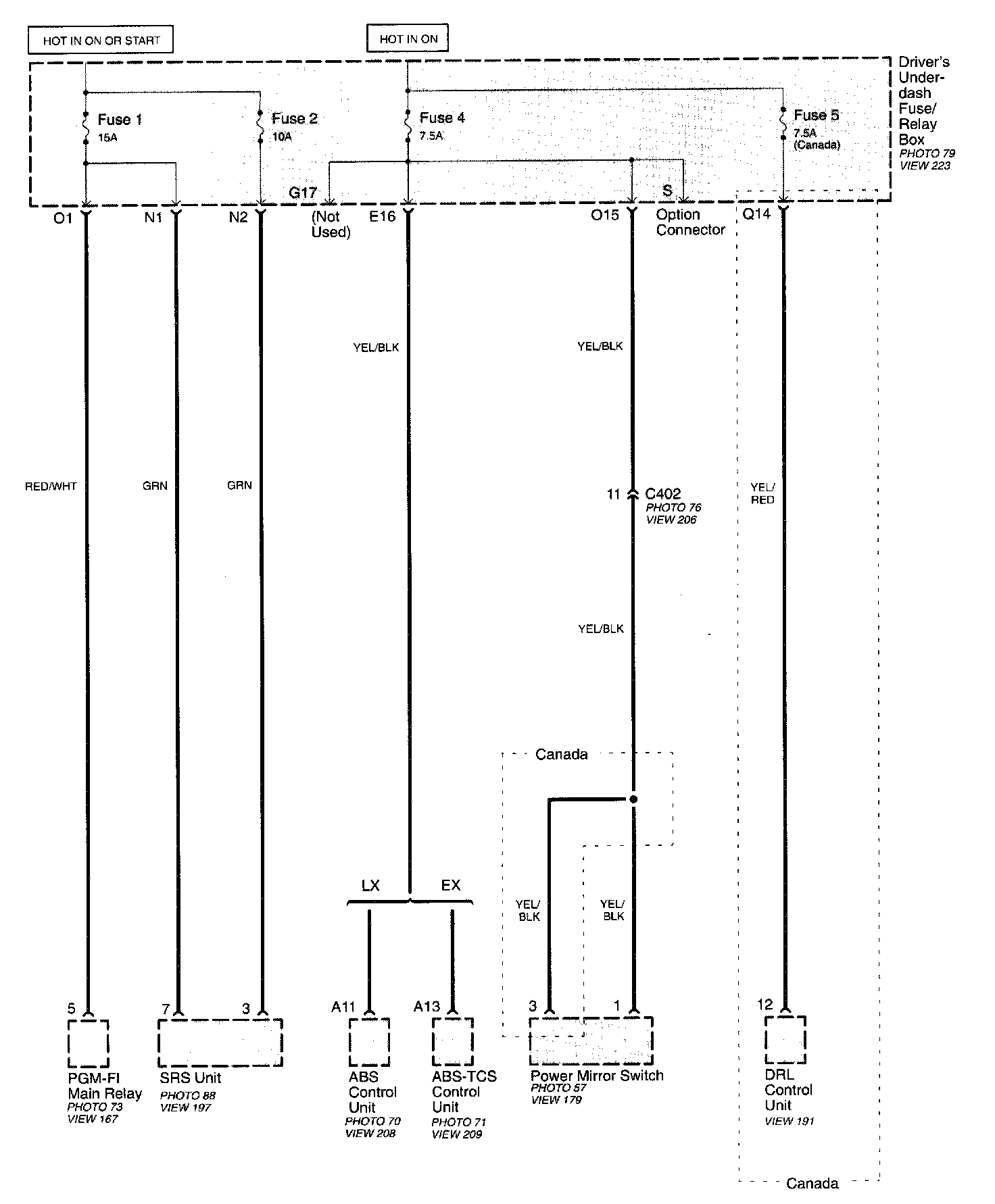

Driver's Under-dash Fuse/Relay Box - Fuses 1, 2, 4 And 5 (Part 5 Of 15):




ABS Control Unit
ABS-TCS Control Unit
DRL Control Unit
Driver's Under-dash Fuse/Relay Box
PGM-FI Main Relay
Power Mirror Switch
SRS Unit

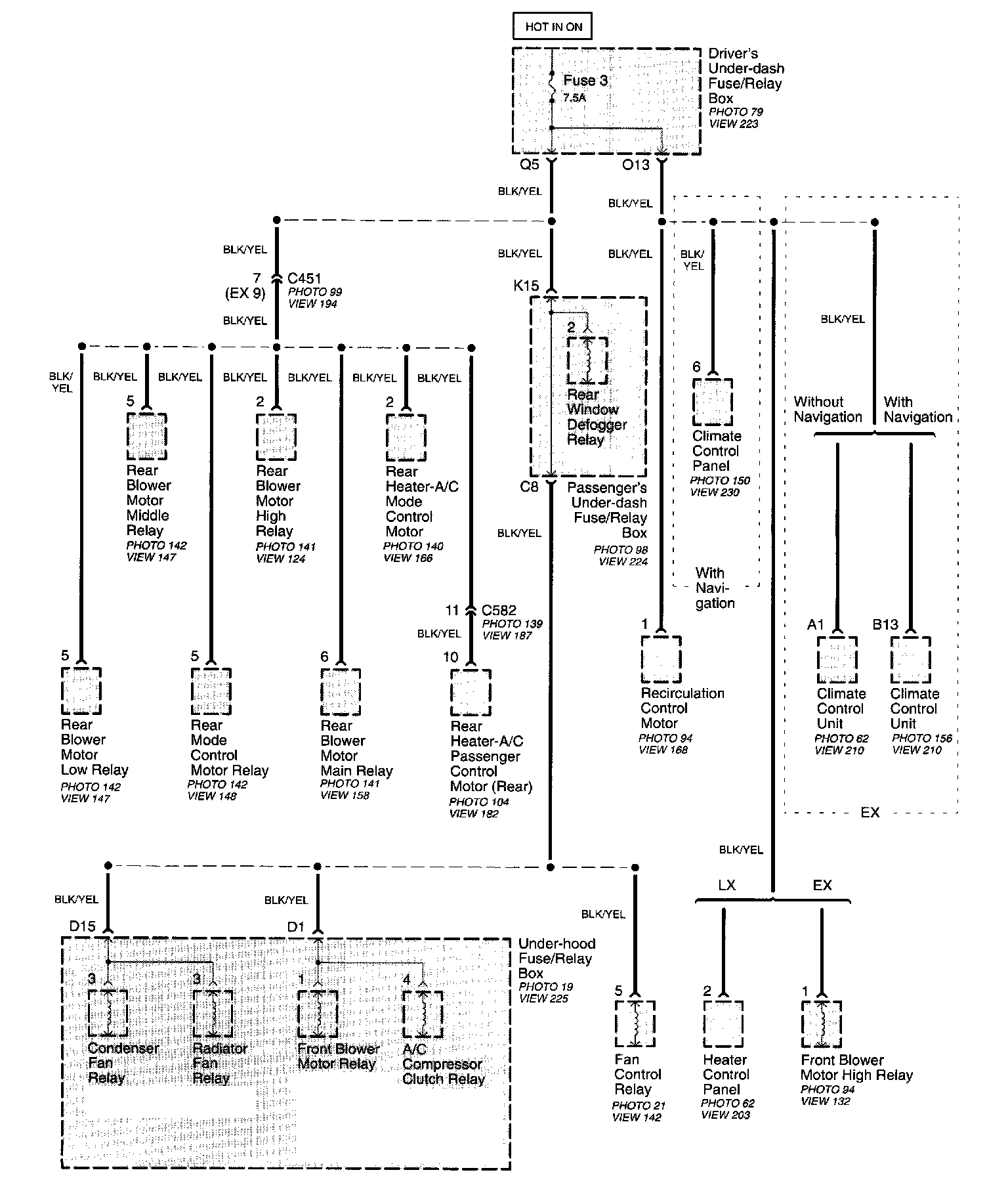

Driver's Under-dash Fuse/Relay Box - Fuse 3 (part 6 Of 15):




Climate Control Panel
Climate Control Unit
Driver's Under-dash Fuse/Relay Box
Fan Control Relay
Front Blower Motor High Relay
Heater Control Panel
Passenger's Under-dash Fuse/Relay Box
- Rear Window Defogger Relay
Rear Blower Motor Middle Relay
Rear Blower Motor High Relay
Rear Heater-A/C Mode Control Motor
Rear Blower Motor Low Relay
Rear Mode Control Motor Relay
Rear Blower Motor Main Relay
Rear Heater-A/C Passenger Control Motor (Rear)
Recirculation Control motor
Under-hood Fuse/Relay Box
- Condenser Fan Relay
- Radiator Fan Relay
- Front Blower Motor Relay
- A/C Compressor Clutch Relay

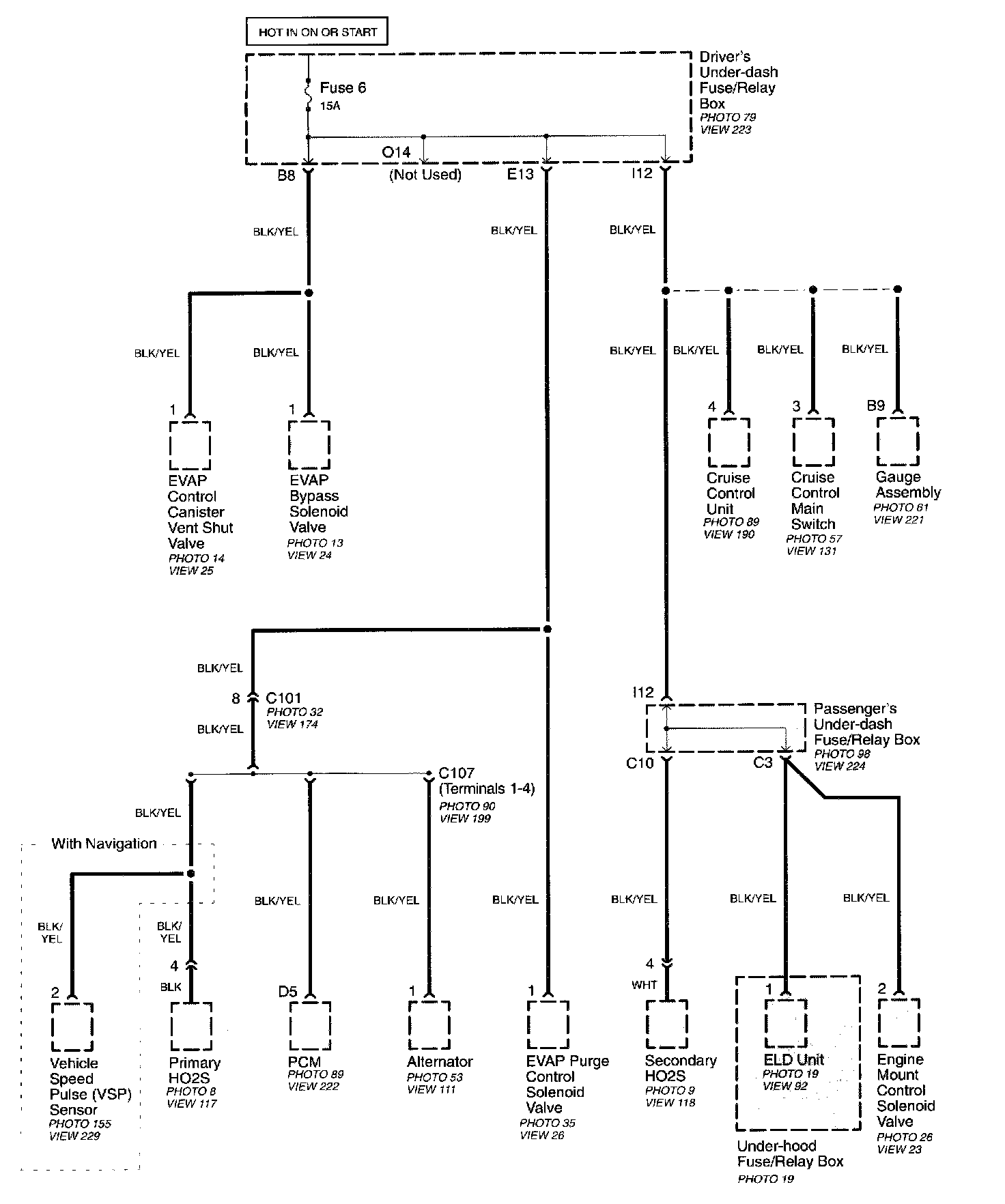

Driver's Under-dash Fuse/relay Box - Fuse 6 (Part 7 Of 15):




Alternator
Cruise Control Unit
Cruise Control Main Switch
Driver's Under-dash Fuse/Relay Box
EVAP Control Canister Vent Shut Valve
EVAP Bypass Solenoid Valve
Engine Mount Control Solenoid Valve
EVAP Purge Control Solenoid Valve
Gauge Assembly
Primary HO2S
PCM
Passenger's Under-dash Fuse/Relay Box
Secondary HO2S
Under-hood Fuse/Relay Box
- ELD Unit
Vehicle Speed Pulse (VSP) Sensor

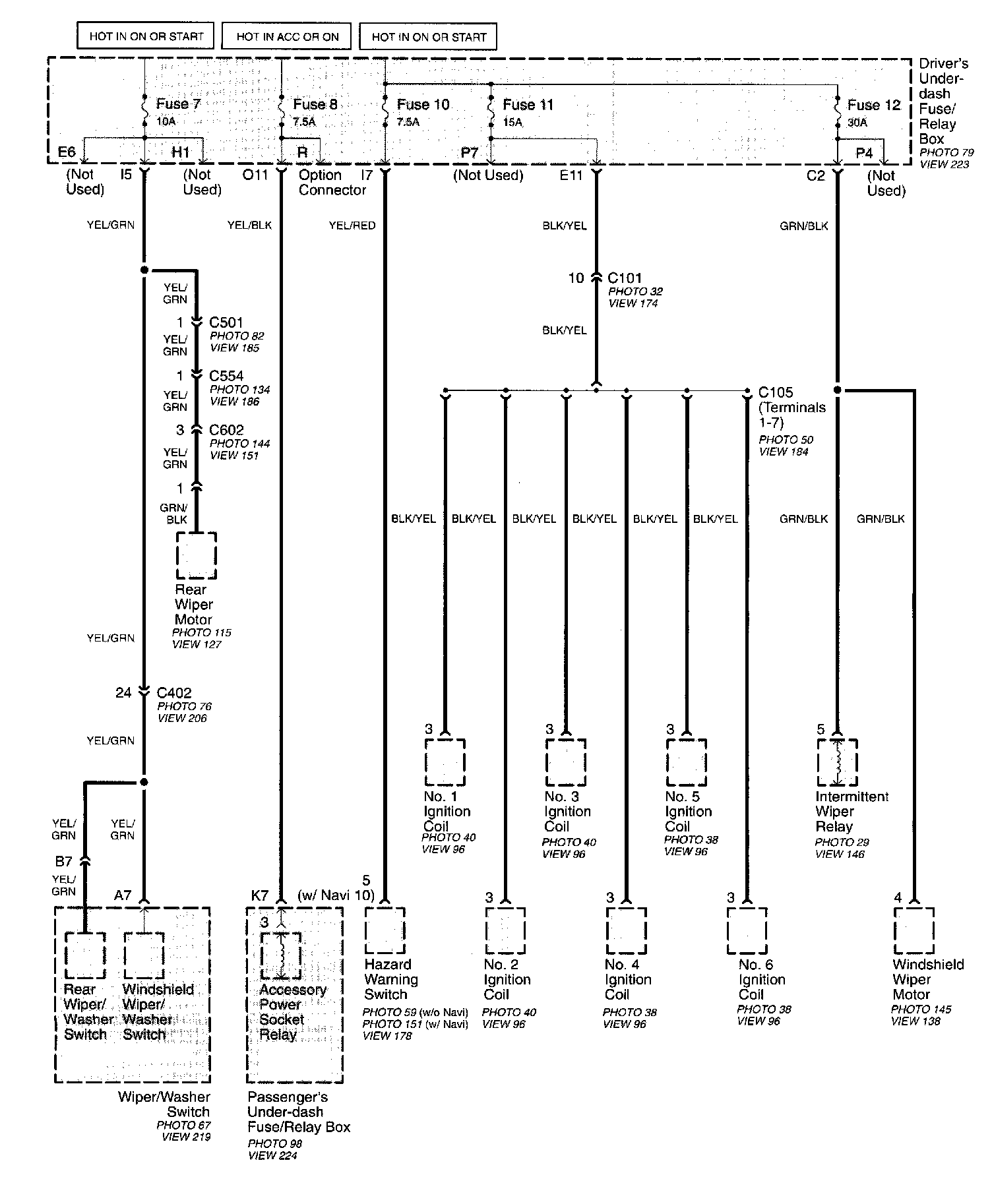

Driver's Under-dash Fuse/relay Box - Fuses 7, 8, 10, 11 And 12 (Part 8 Of 15):




Driver's Under-dash Fuse/Relay Box
Hazard Warning Switch
Intermittent Wiper Relay
Passenger's Under-dash Fuse/Relay Box
- Accessory Power Socket Relay
Rear Wiper Motor
Wiper/Washer Switch
- Rear Wiper/Washer Switch
- Windshield Wiper/Washer Switch
Windshield Wiper Motor
No.1 Ignition Coil
No.3 Ignition Coil
No.5 Ignition Coil

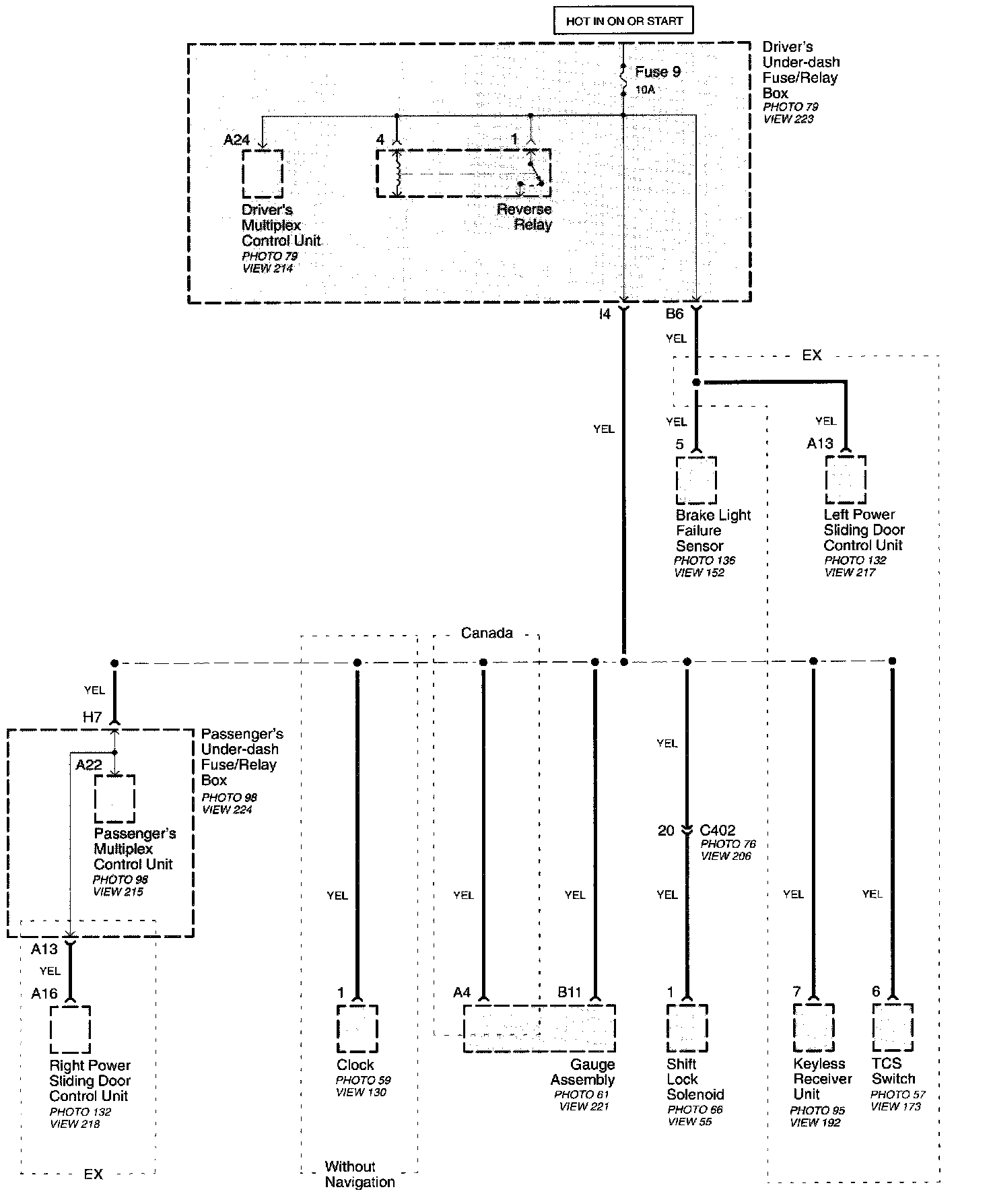

Driver's Under-dash Fuse/Relay Box - Fuse 9 (Part 9 Of 15):




Brake Light Failure Sensor
Clock
Driver's Under-dash Fuse/Relay Box
- Driver's Multiplex Control Unit
- Reverse Relay
Gauge Assembly
Keyless Receiver Unit
Left Power Sliding Door Control Unit
Passenger's Under-dash Fuse/Relay Box
- Passenger's Multiplex Control Unit
Right Power Sliding Door Control Unit
Shift Lock Solenoid
TCS Switch

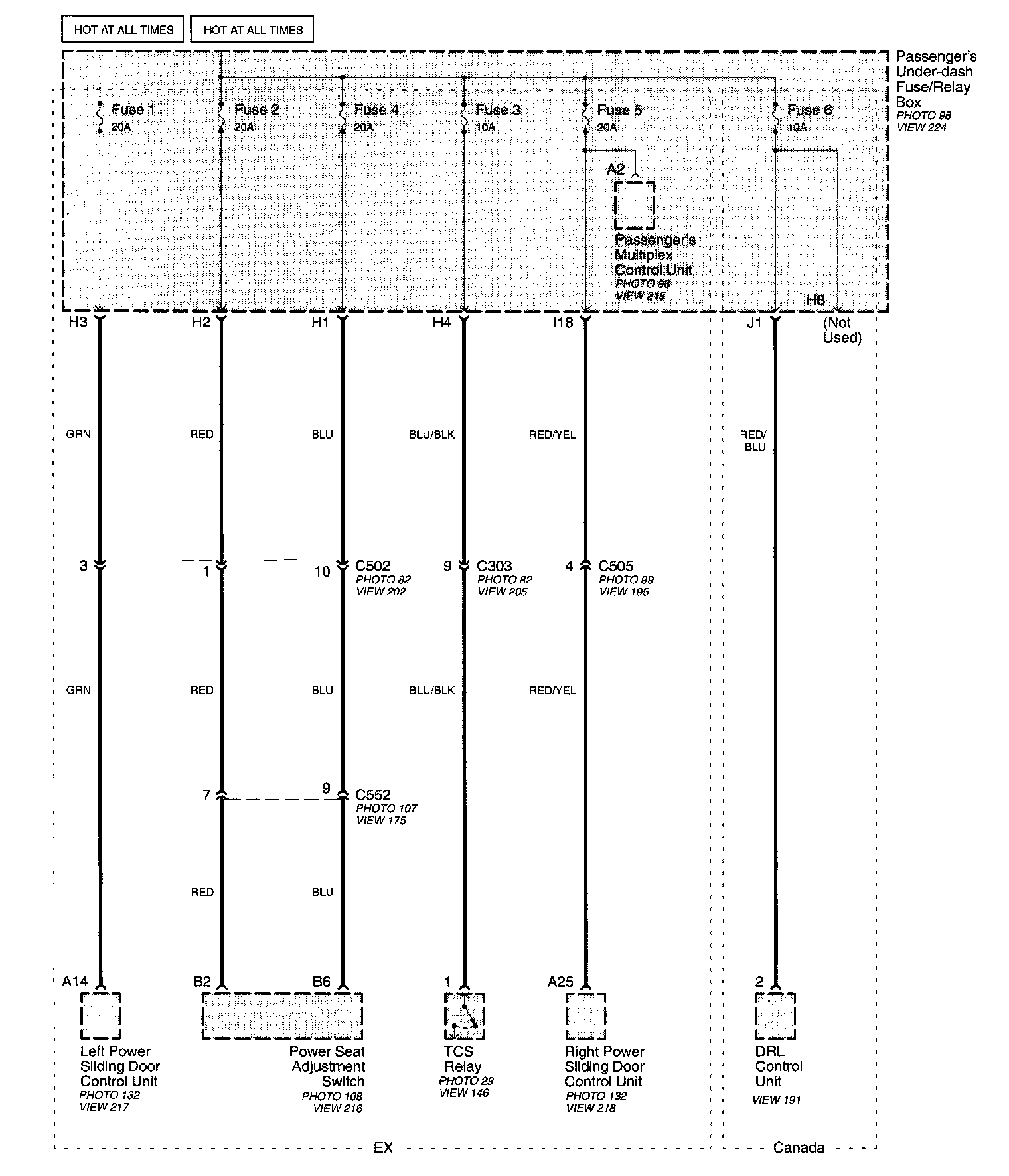

Passenger's Under-dash Fuse/relay Box - Fuses 1, 2, 3, 4, 5 And 6 (Part 10 Of 15):




DRL Control Unit
Left Power Sliding Door Control Unit
Passenger's Under-dash Fuse/Relay Box
- Passenger's Multiplex Control Unit
Power Seat Adjustment Switch
Right Power Sliding Door Control Unit
TCS Relay

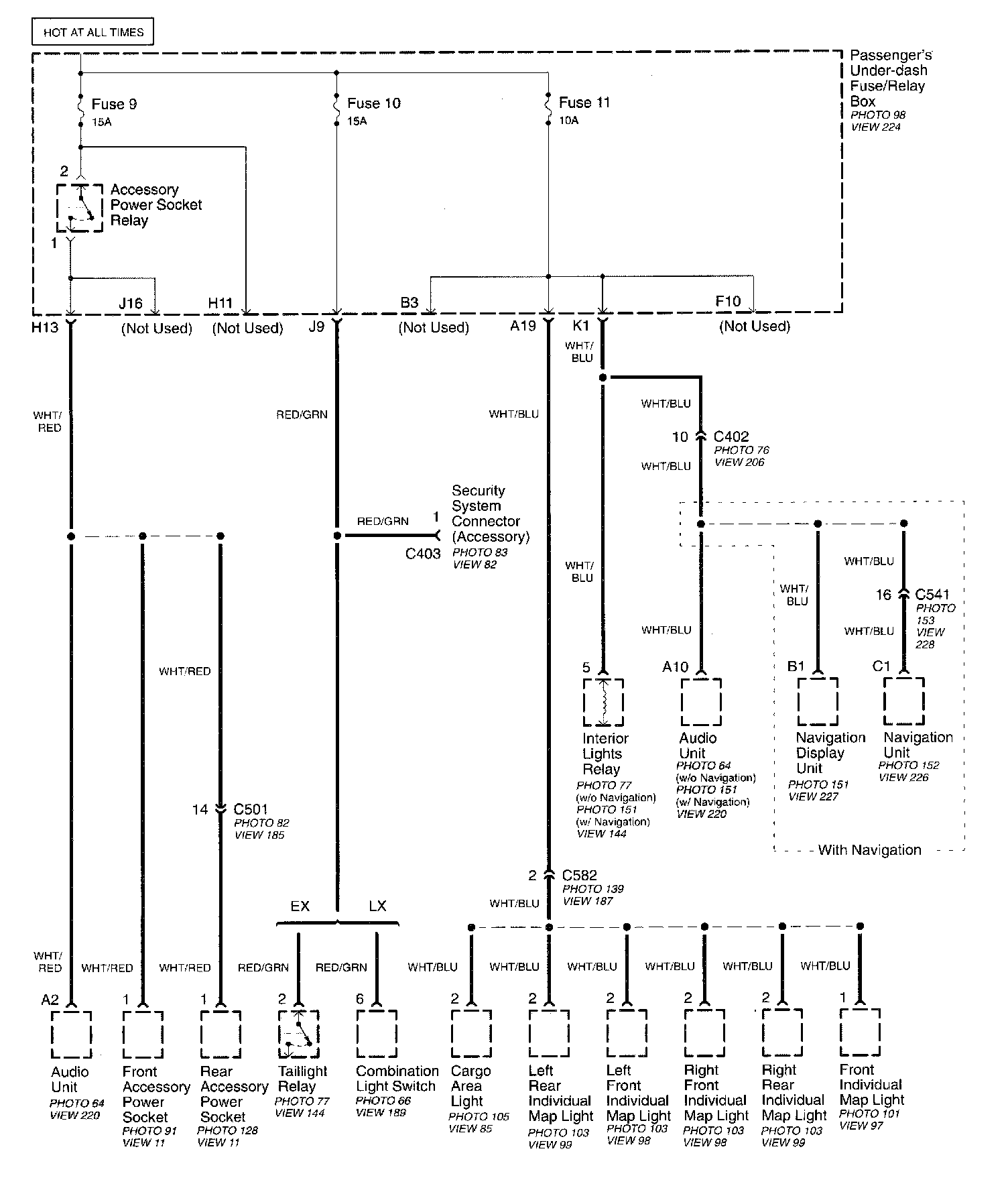

Passenger's Under-dash Fuse/relay Box - Fuses 9, 10, 11 (Part 11 Of 15):




Audio Unit
Cargo Area Light
Front Individual Map Light
Front Accessory Power Socket
Interior Lights Relay
Left Rear Individual Map Light
Left Front Individual Map Light
Navigation Display Unit
Passenger's Under-dash Fuse/Relay Box
- Accessory Power Socket Relay
Rear Accessory Power Socket
Right Front Individual Map Light
Right Rear Individual Map Light
Taillight Relay

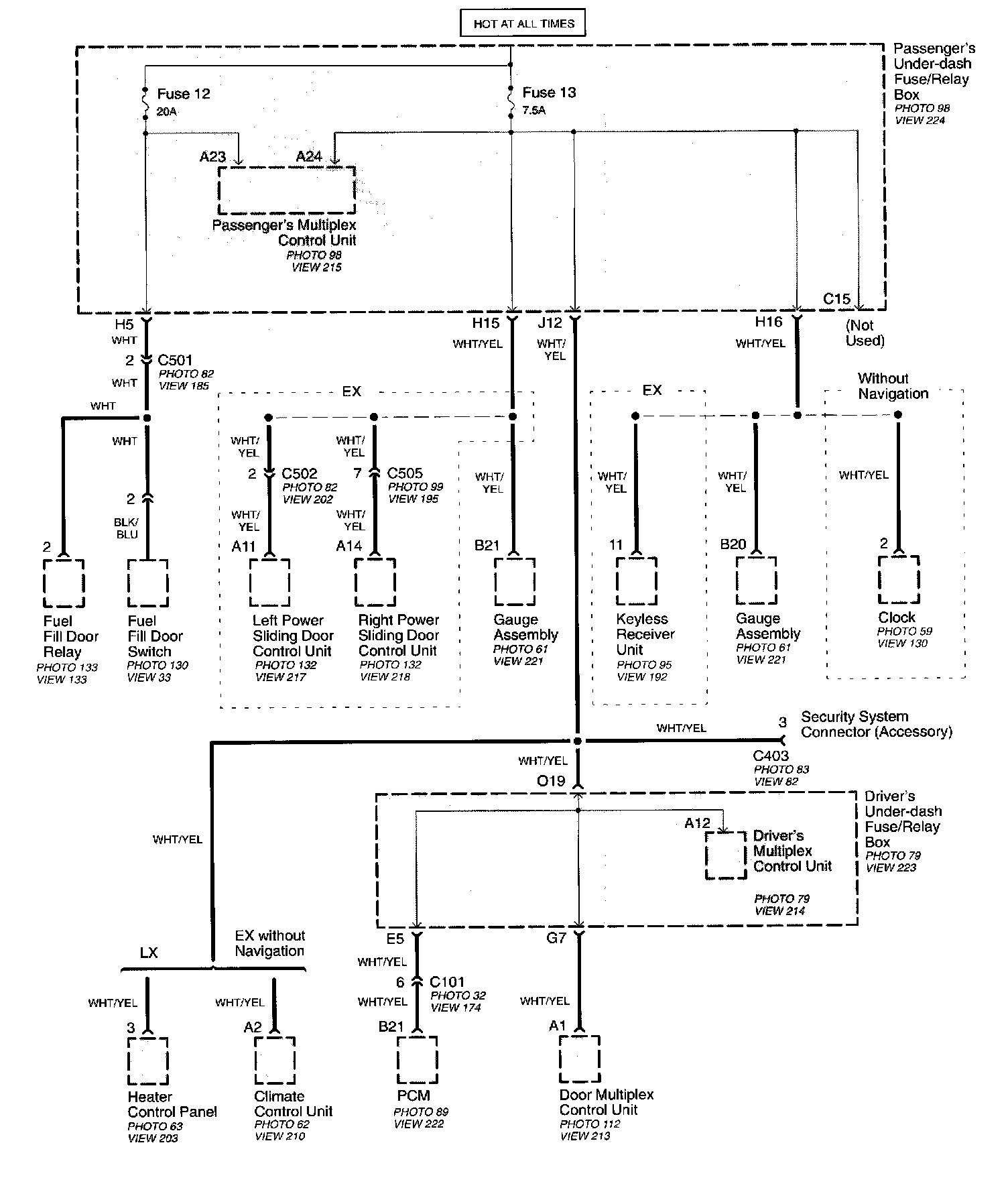

Passenger's Under-dash Fuse/relay Box - Fuses 12 And 13 (Part 12 Of 15):




Clock
Climate Control Unit
Door Multiplex Control Unit
Driver's Under-dash Fuse/Relay Box
- Driver's Multiplex Control Unit
Fuel Fill Door Relay
Fuel Fill Door Switch
Gauge Assembly
Heater Control Panel
Keyless Receiver Unit
Left Power Sliding Door Control Unit
PCM
Passenger's Under-dash Fuse/Relay Box
- Passenger's Multiplex Control Unit
Right Power Sliding Door Control Unit

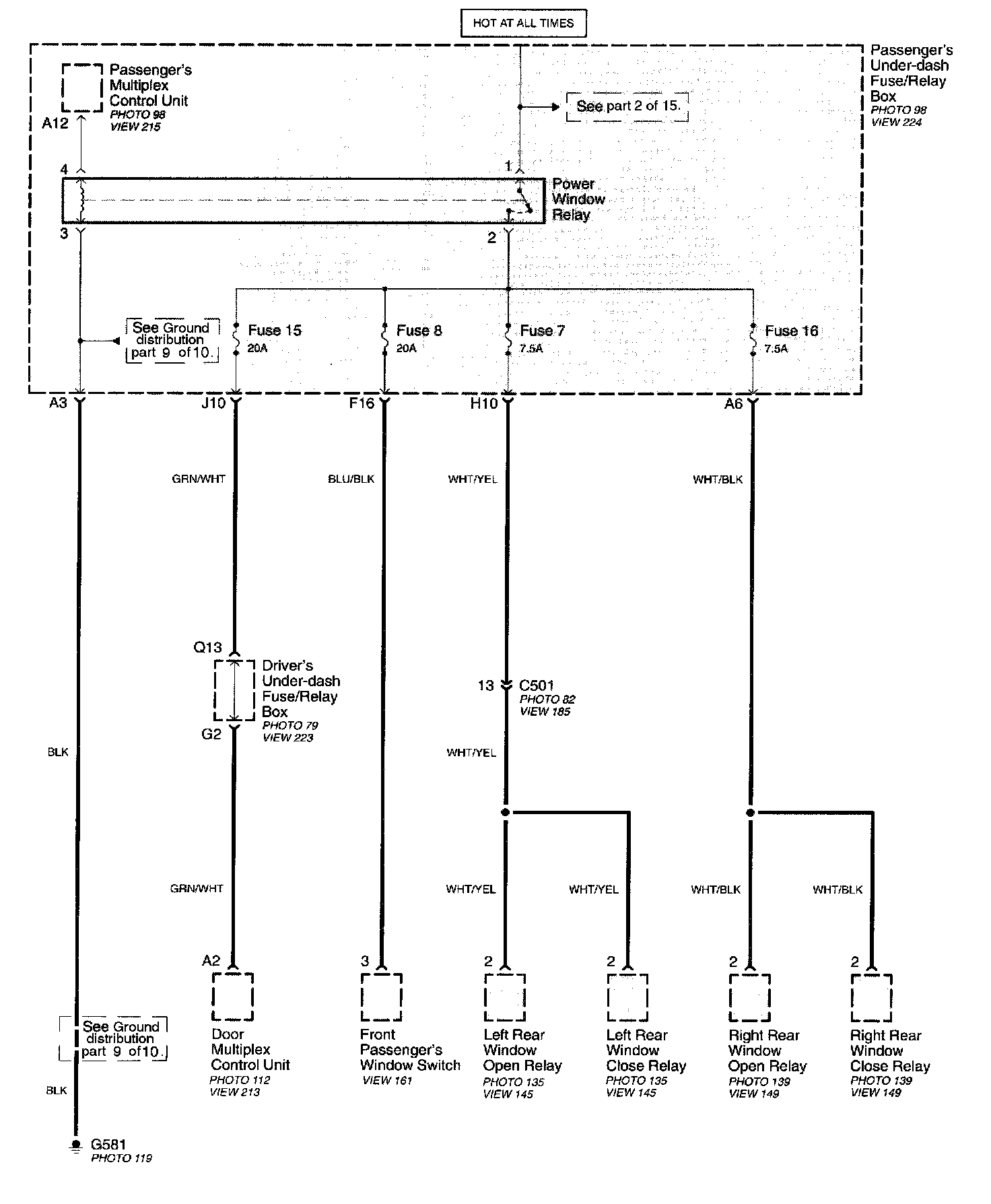

Passenger's Under-dash Fuse/relay Box - Fuses 7, 8, 15 And 16 (Part 13 Of 15):




Door Multiplex Control Unit
Driver's Under-dash Fuse/Relay Box
Front Passenger's Window Switch
Left Rear Window Open Relay
Left Rear Window Close Relay
Passenger's Under-dash Fuse/Relay Box
- Passenger's Multiplex Control Unit
Right Rear Window Open Relay
Right Rear Window Close Relay

Passenger's Under-dash Fuse/relay Box - Fuses 43, 44 And 45 (Part 14 Of 15):




Driver's Under-dash Fuse/Relay Box
- Driver's Multiplex Control Unit
DRL Control Unit
DRL Relay
Gauge Assembly
Left Headlight
Passenger's Under-dash Fuse/Relay Box
Right Headlight
Under-hood Fuse/Relay Box
- Headlight Relay 1
- Headlight Relay 2

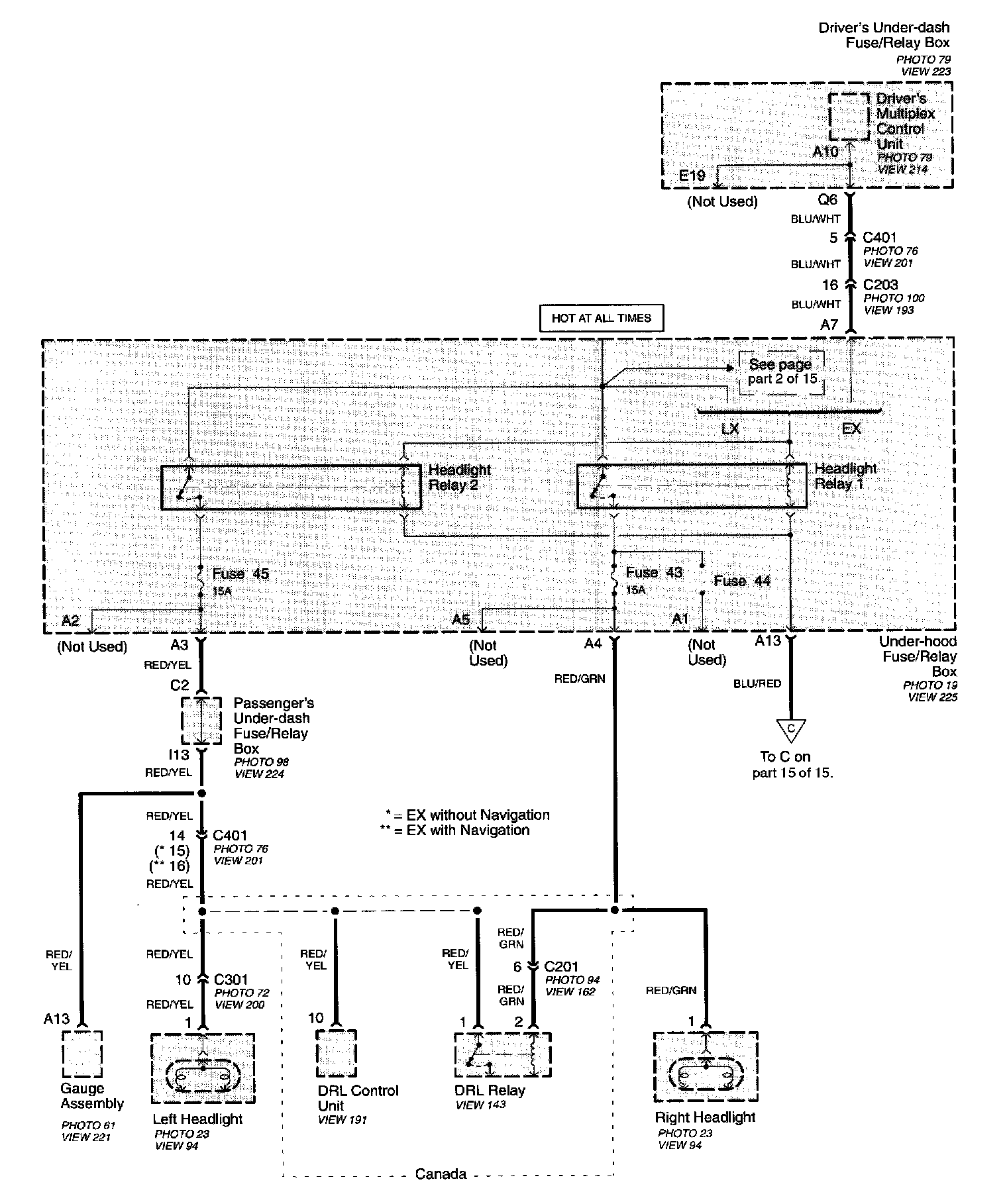

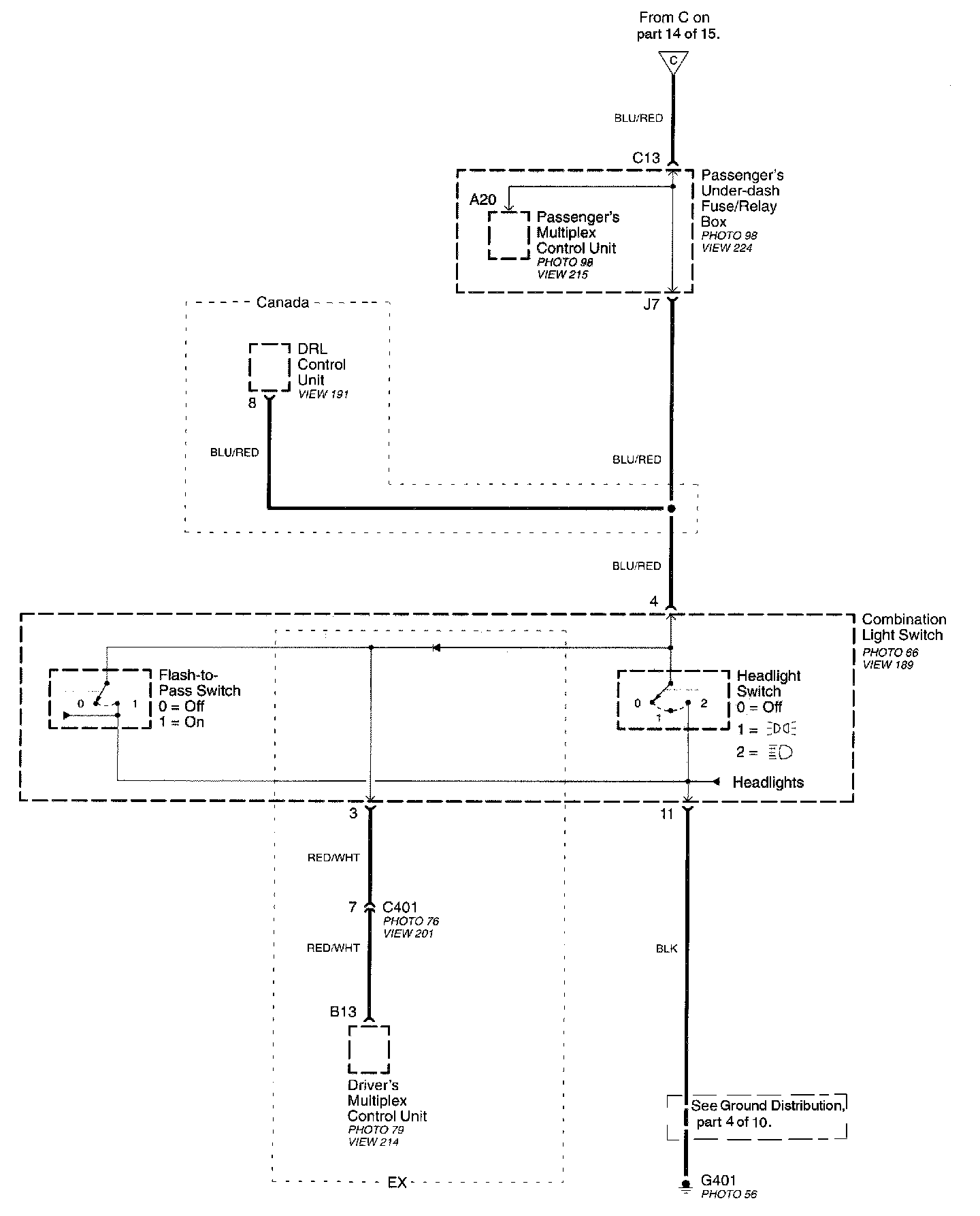

Passenger's Under-dash Fuse/relay Box - Fuses 43, 44 And 45 (Part 15 Of 15):




Combination Light Switch
- Flash-to-Pass Switch
- Headlight Switch
DRL Control Unit
Driver's Multiplex Control Unit
Passenger's Under-dash Fuse/Relay Box
- Passenger's Multiplex Control Unit
