Transmission Position Sensor/Switch: Testing and Inspection
A/T Gear Position Switch Test 1.

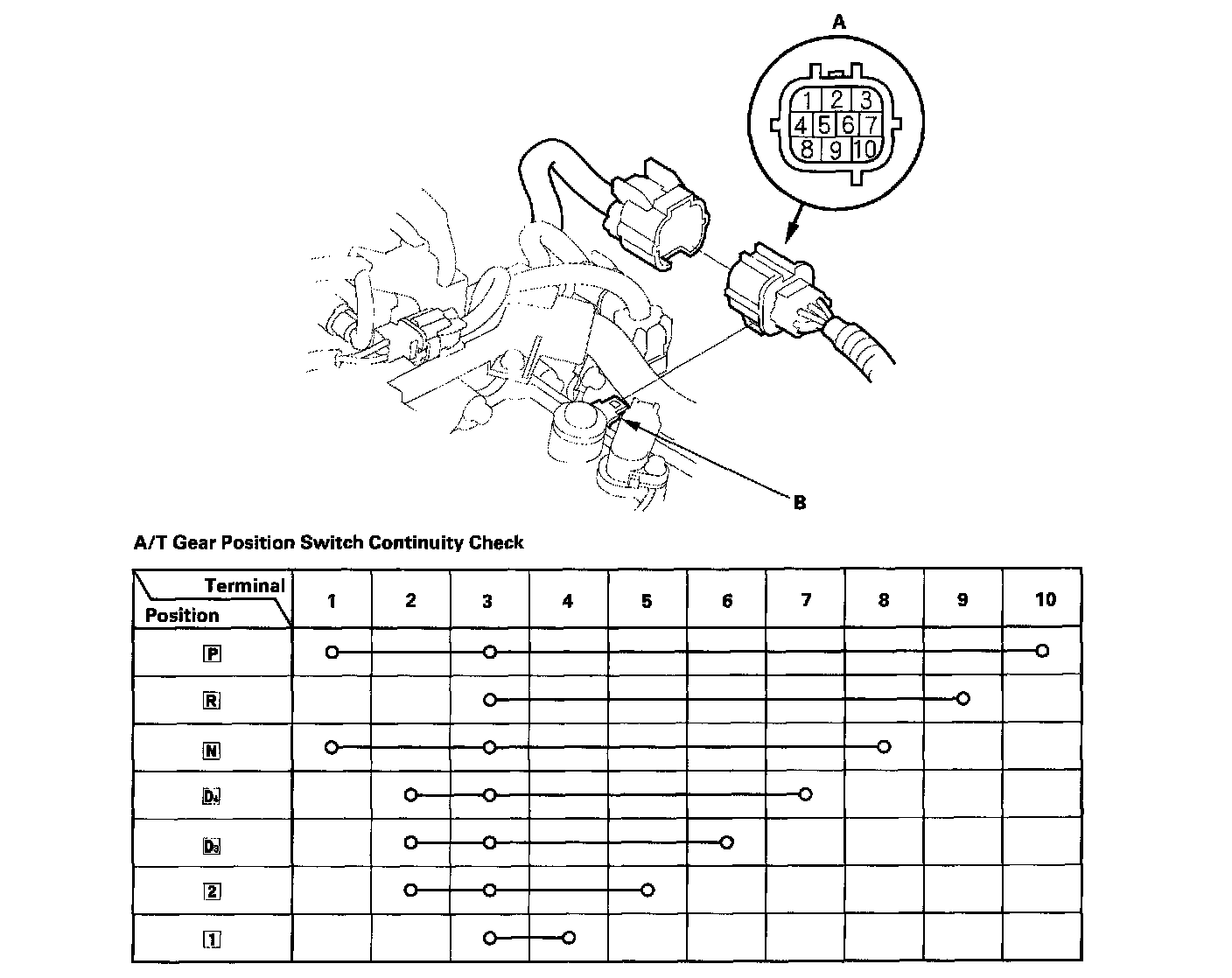

Remove the A/T gear position switch connector (A) from the connector bracket (B), then disconnect the connector.
2.
Check for continuity between the terminals in each switch position according to the table.
NOTE: Terminal No.1: Neutral position switch
