Programmed Fuel Injection (PGM-FI) System

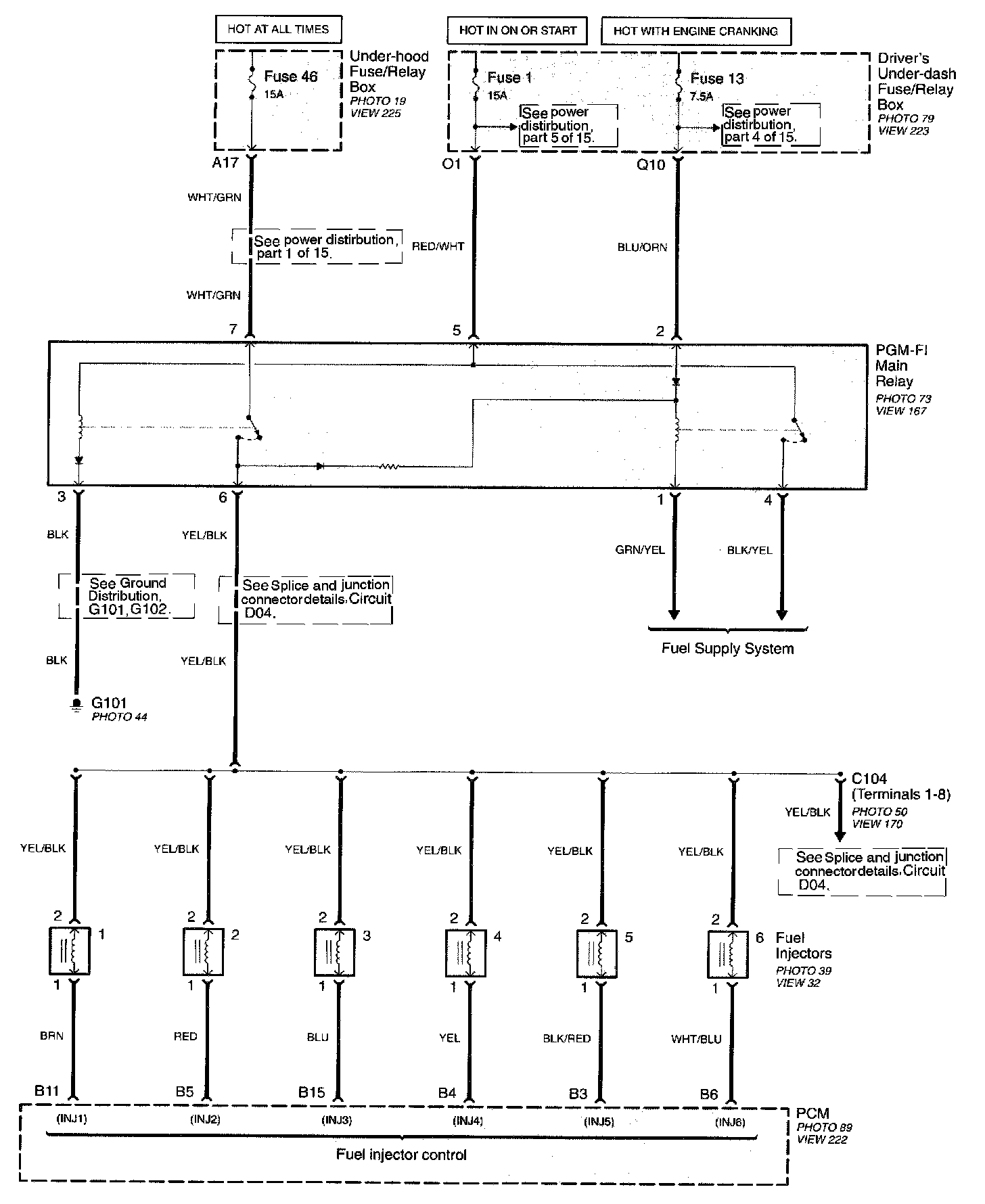

Part 1 Of 3:

Driver's Under-Dash Fuse/Relay Box
Fuel Injectors
PGM-FI Main Relay
PCM
Under-hood Fuse/Relay Box

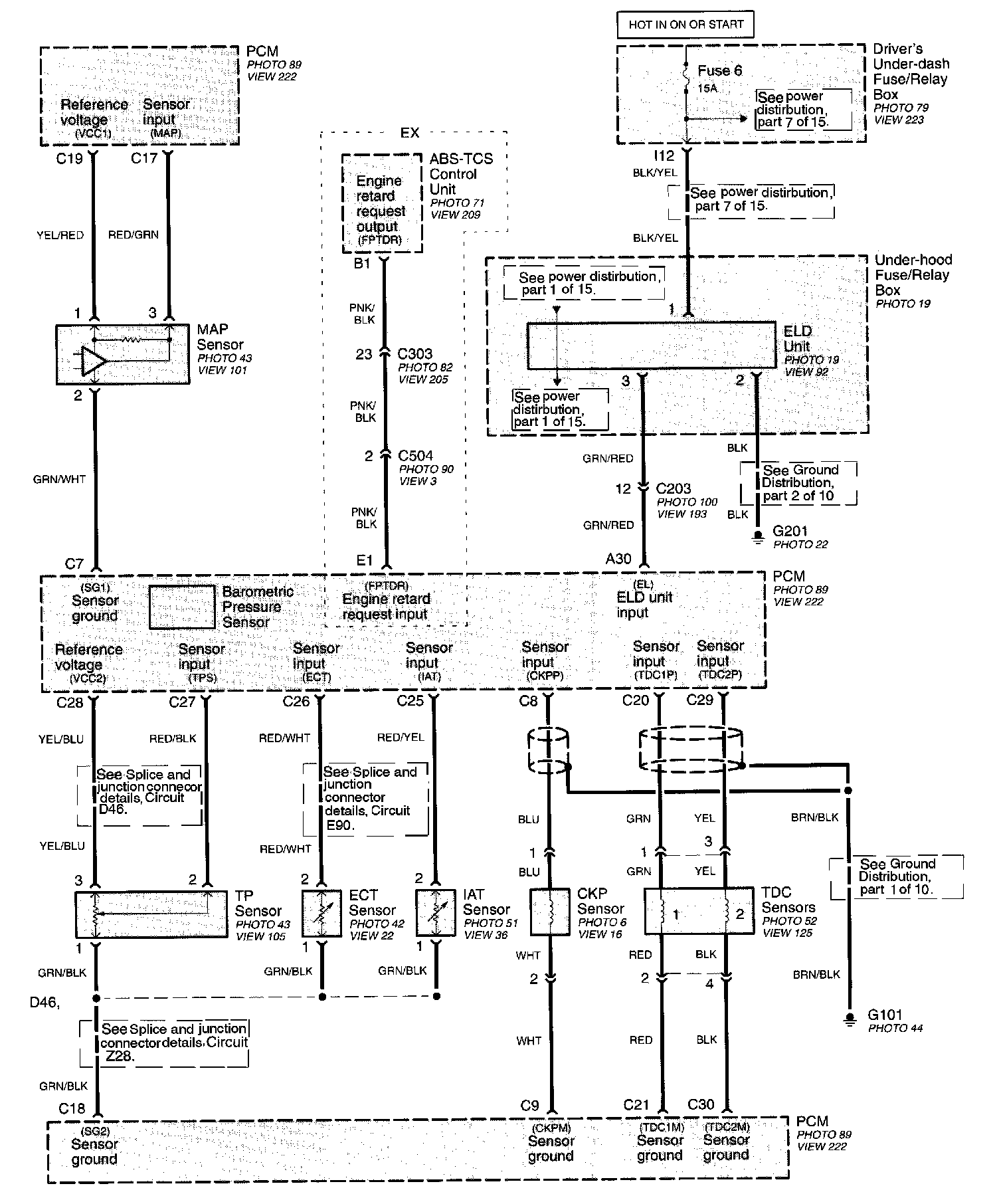

Part 2 Of 3:

ABS-TCS Control Unit
CKP Sensor
Driver's Under-Dash Fuse/Relay Box
ECT Sensor
IAT Sensor
MAP Sensor
PCM
- Barometric Pressure Sensor
TDC Sensor
Under-hood Fuse/Relay Box
- ELD Unit

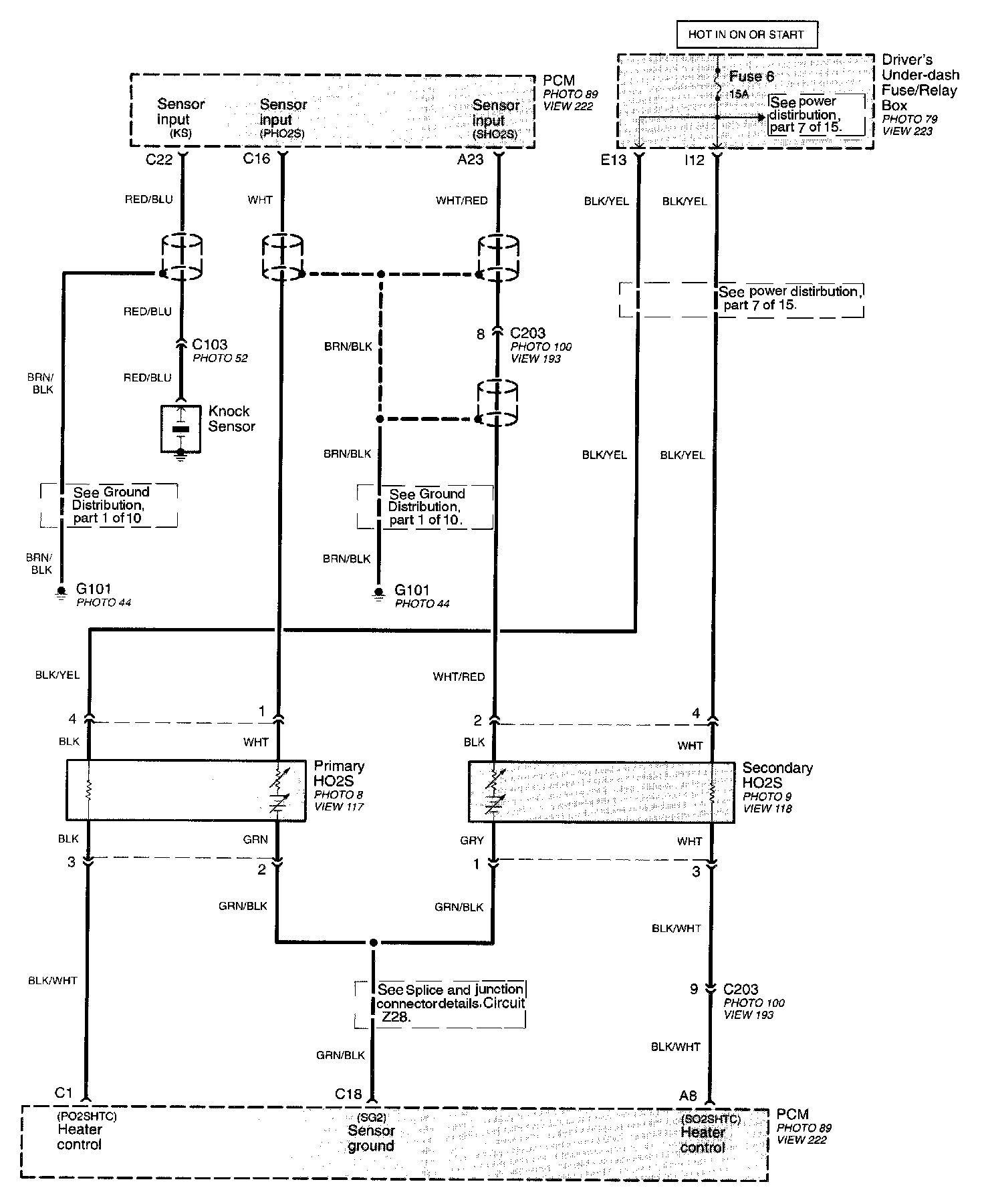

Part 3 Of 3:

Driver's Under-Dash Fuse/Relay Box
Knock Sensor
Primary HO2S
PCM
Secondary HO2S
