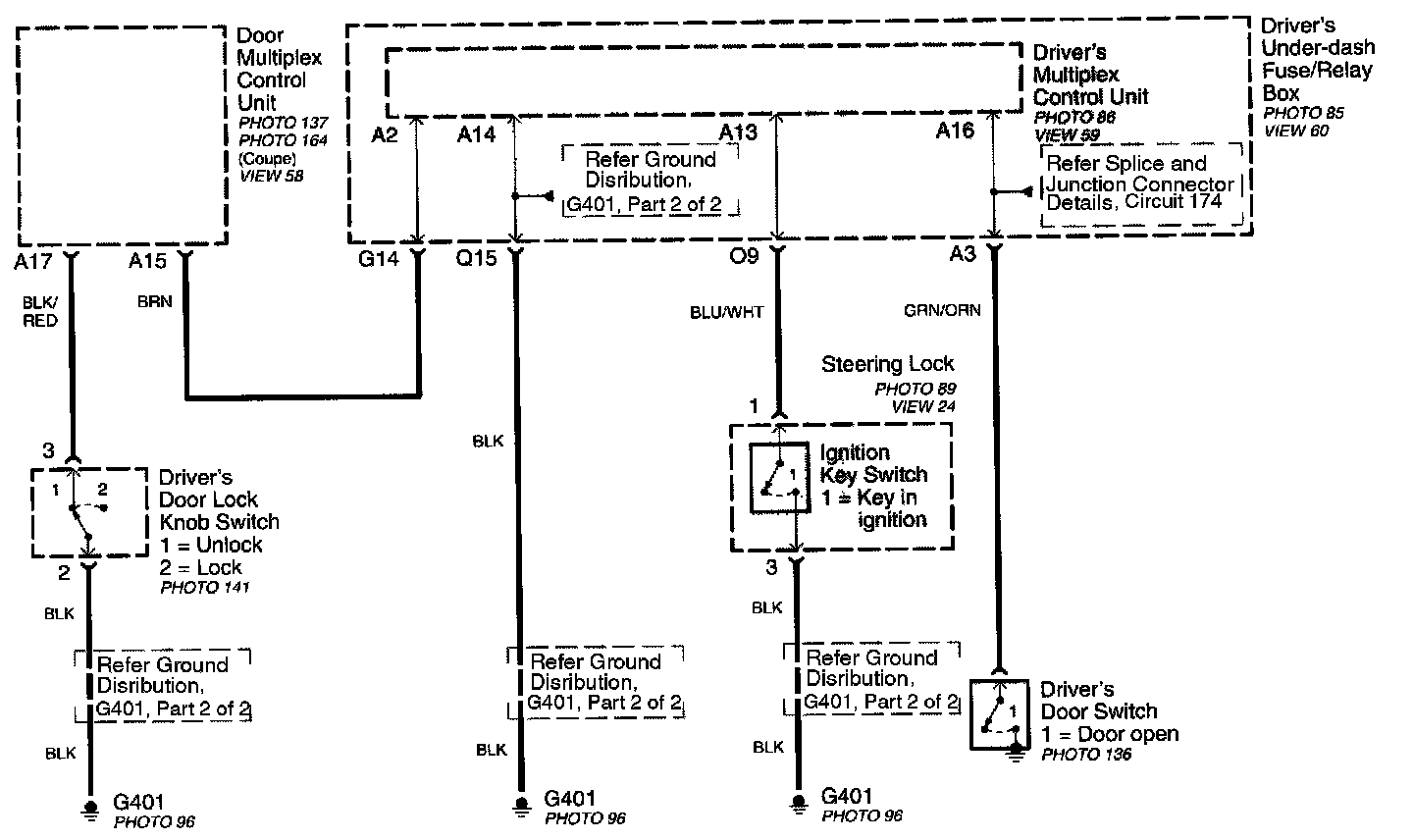

Daytime Running Lamp Control Unit

Part 2 Of 3 / WITHOUT AUTO LIGHTS OFF - CANADA:



/ WITH AUTO LIGHTS OFF - CANADA:



Part 3 Of 3 / WITHOUT AUTO LIGHTS OFF - CANADA:



Part 1 Of 3 / WITHOUT AUTO LIGHTS OFF - CANADA:
