Electronic Brake Control Module: Service and Repair

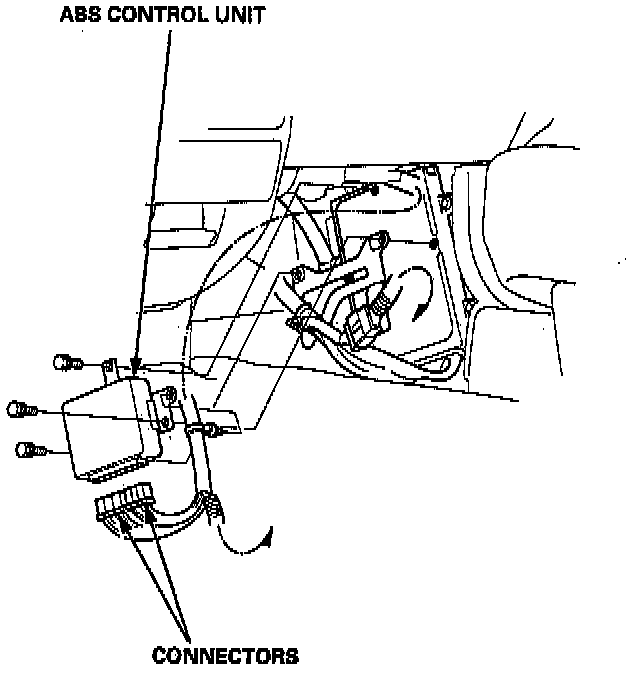

1. Remove the passenger's side kick panel.





2. Disconnect the ABS control unit connectors.
3. Remove the ABS control unit.
4. Install the ABS control unit in the reverse order of removal.
