Malfunction Lamp / Indicator, Air Bag
Malfunction Lamp / Indicator, Air Bag

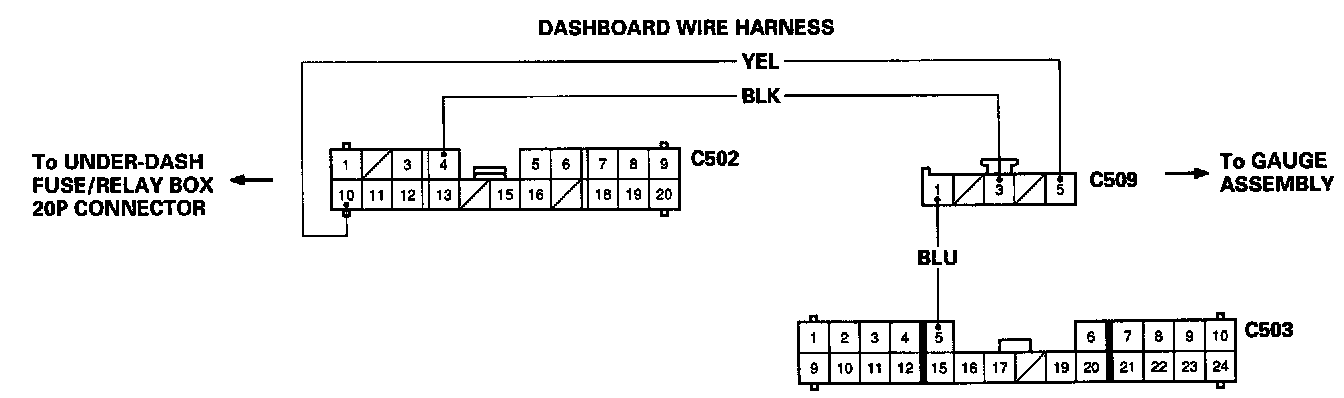

SRS Indicator Light Power Circuit:
SRS Indicator Light Power Circuit
SRS Indicator Light Control Circuit:
SRS Indicator Light Control Circuit
