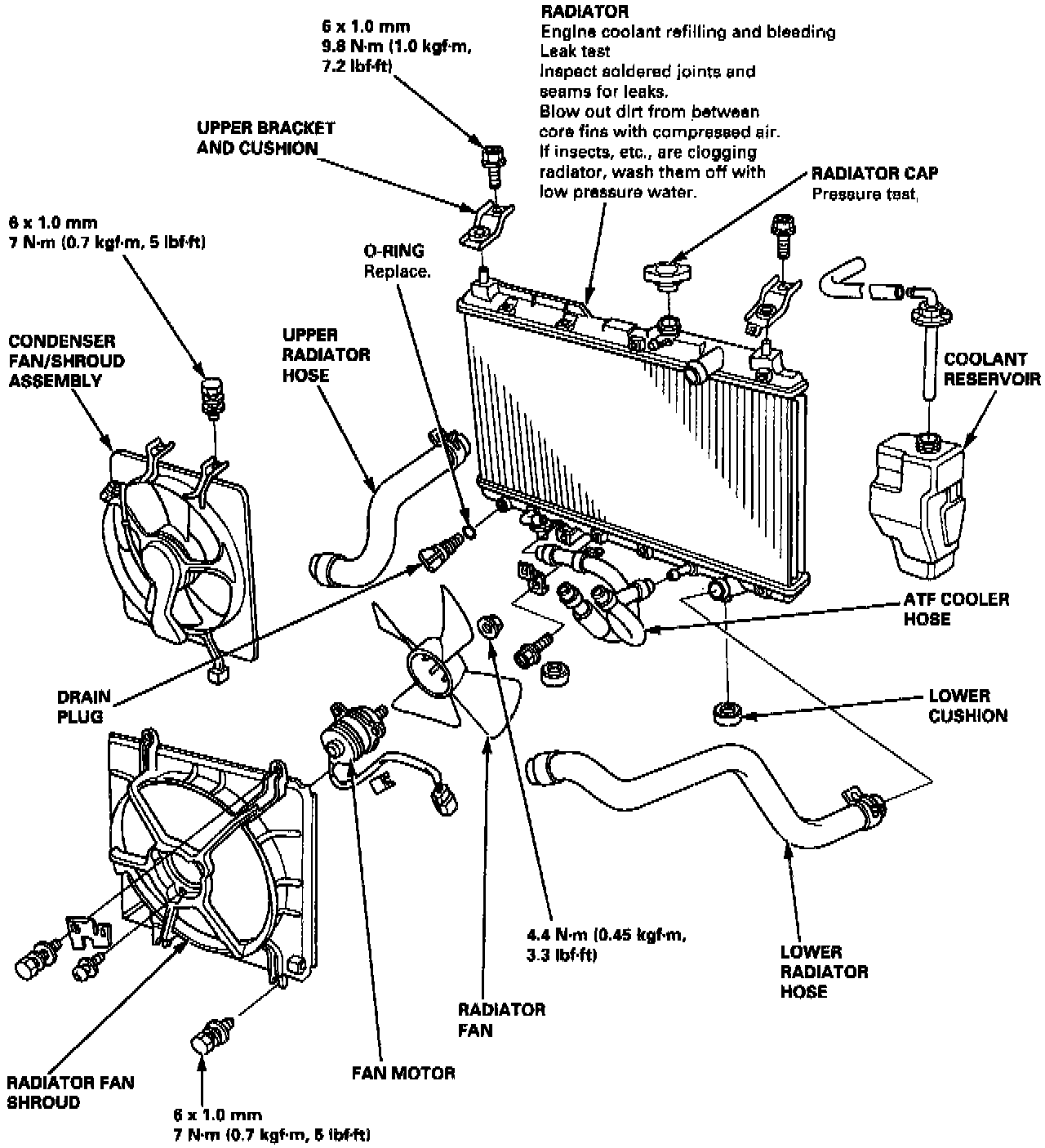

System Diagram

CAUTION: The system is under high pressure when the engine is hot. To avoid danger of releasing scalding engine coolant, remove the cap only when the engine is cool.

Total Cooling System Capacity [Including 0.6 ltr. (0.63 US quart 0.53 Imp quart) for heater and reservoir]:
A/T: 5.9 ltr. (6.2 US quart, 5.2 Imp quart)
M/T: 6.0 ltr. (6.3 US quart, 5.3 Imp quart).

If any engine coolant spills on the painted portions of the body, rinse it off immediately.

Check all cooling system hoses for damage, leaks or deterioration and replace if necessary. Check all hose clamps and retighten if necessary.

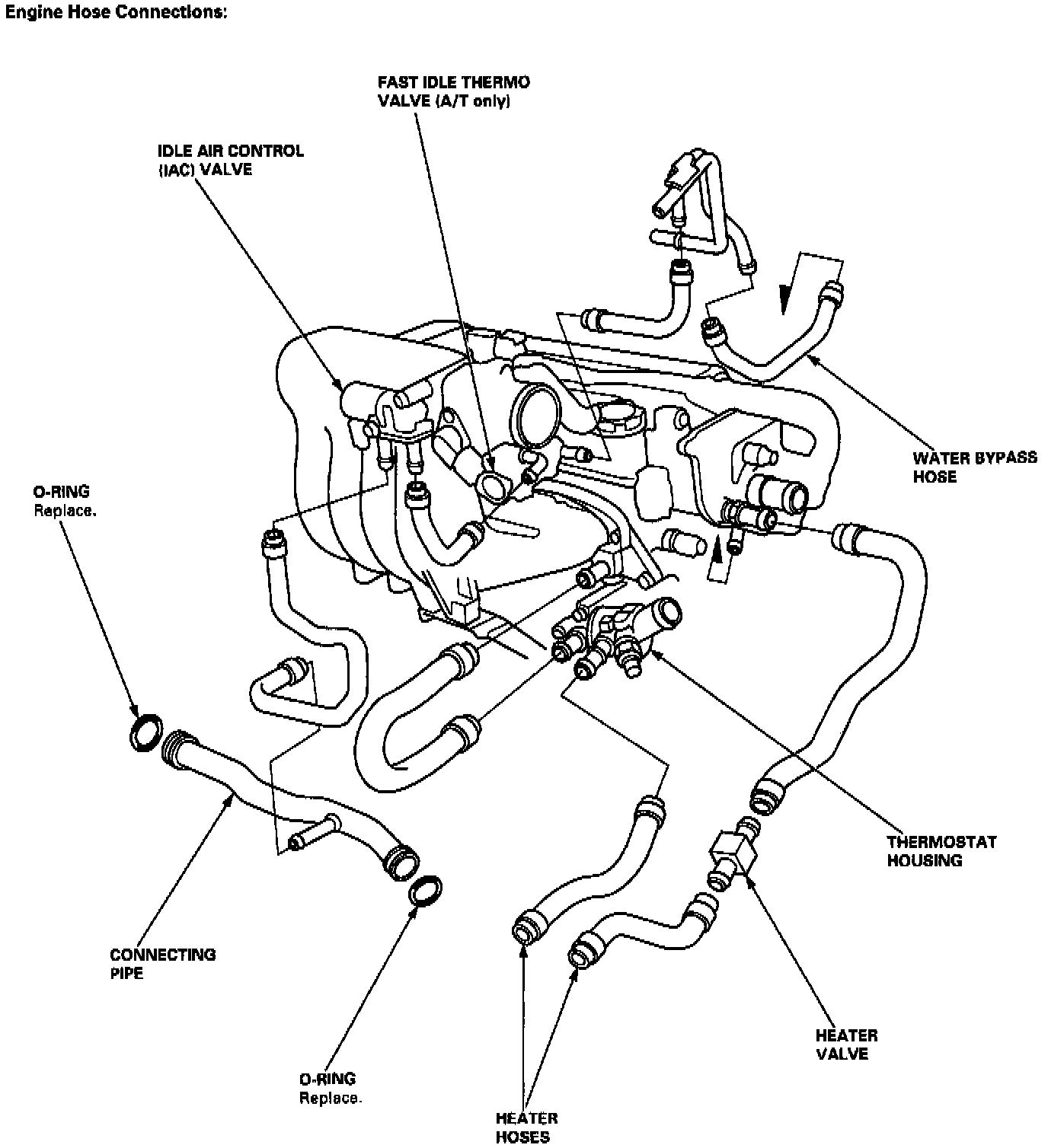

Engine Hose Connections:
