Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2000
>>
CR-V EX 4WD L4-1972cc 2.0L DOHC MFI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Air Delivery
Air Delivery

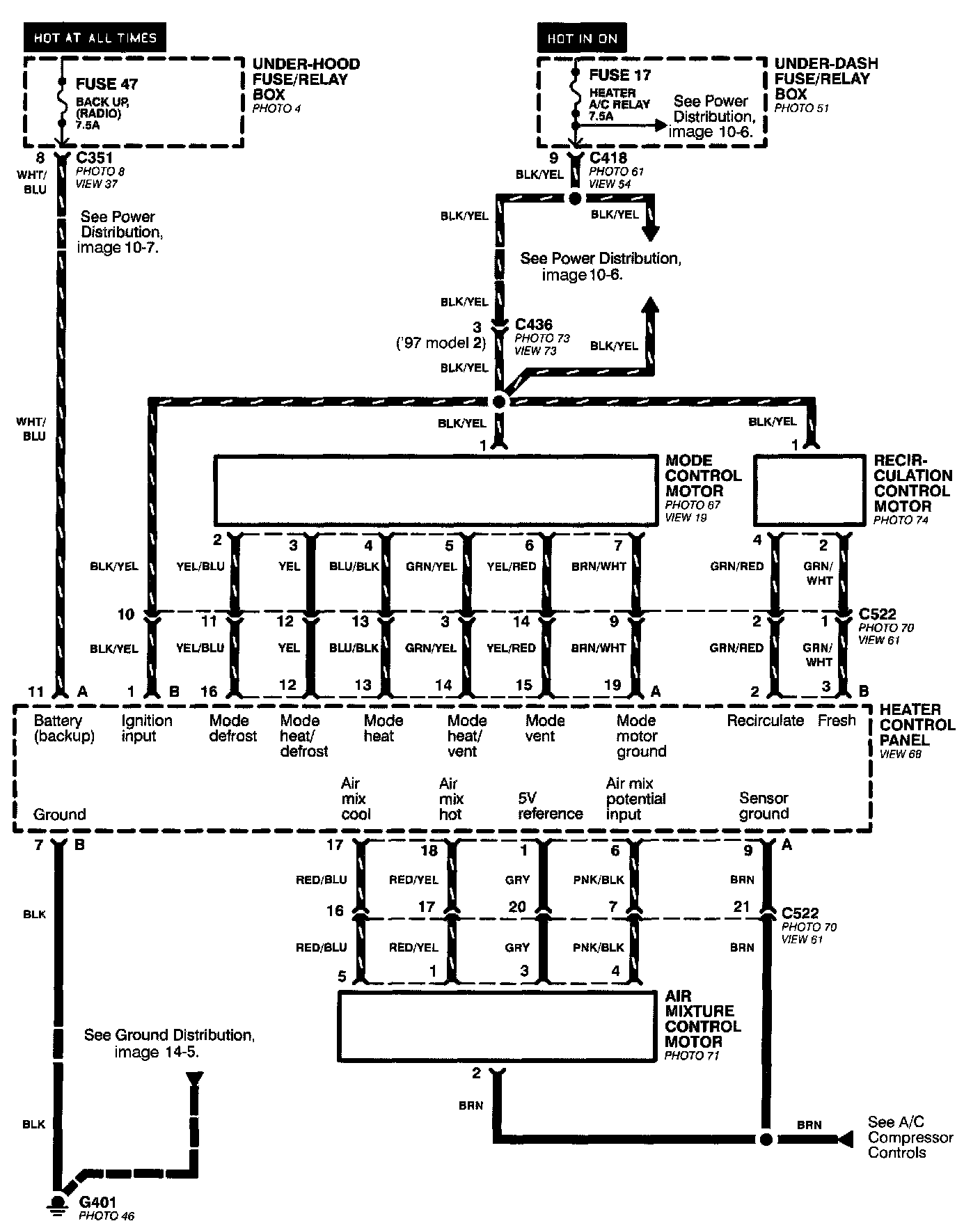

Image 61 (Air Delivery):
