Transmission Position Sensor/Switch: Testing and Inspection

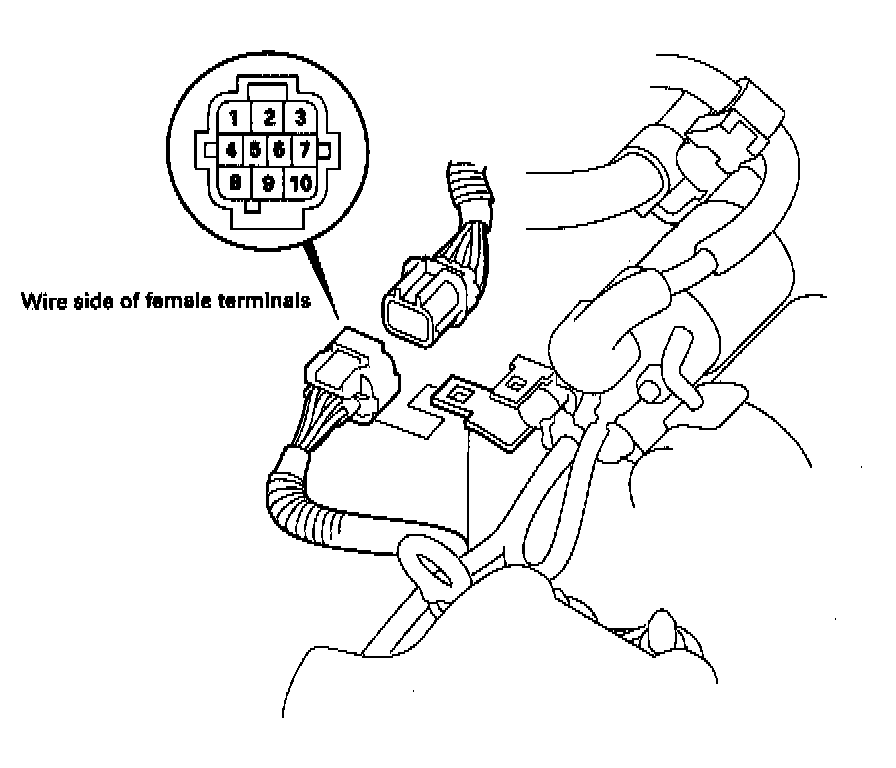

1. Remove the transmission range switch connector from the connector bracket, then disconnect the connector (10P).





2. Check for continuity between the terminals in each switch position according to the table.

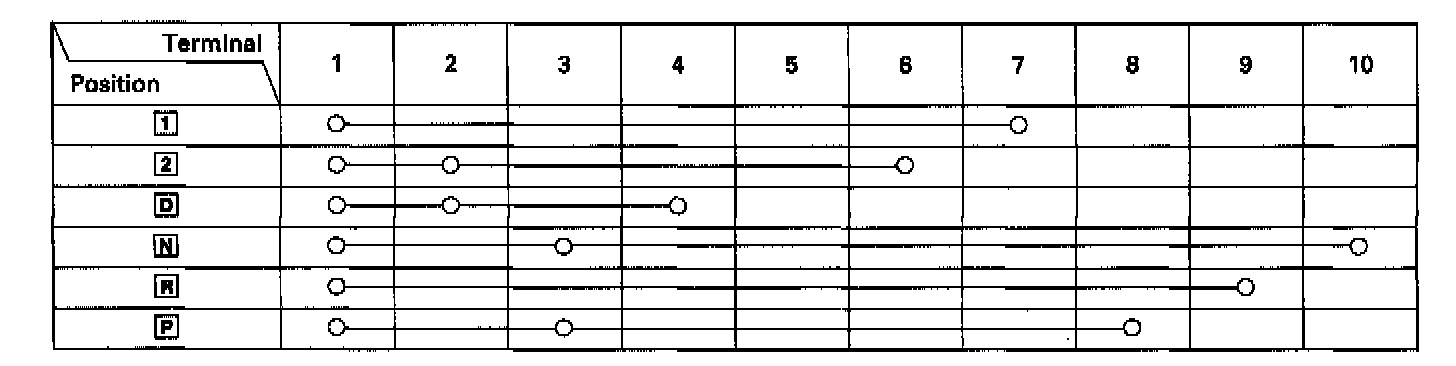

Transmission Range Switch Continuity Check





NOTE: Terminal No. 3: Neutral position switch
