Engine Control Module: Locations

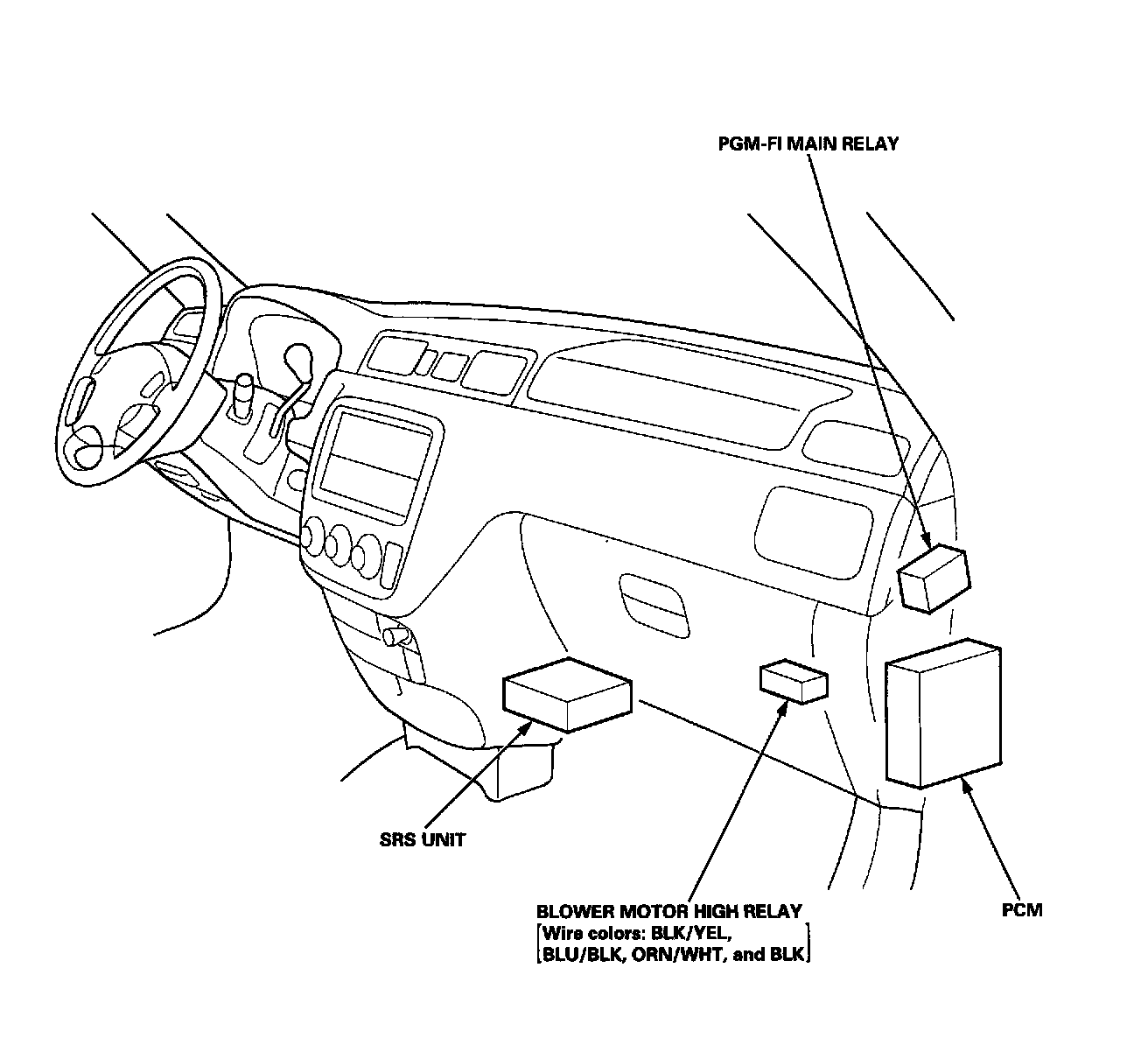

Dashboard (Part 1 Of 4):

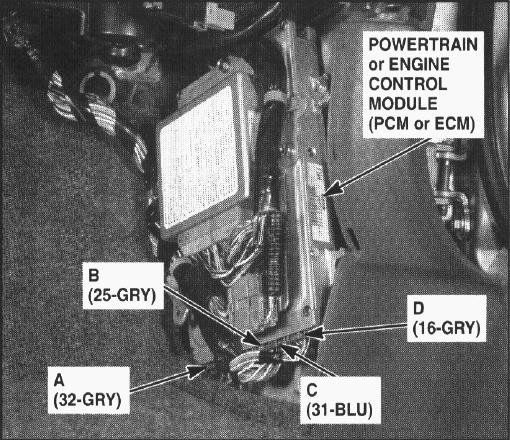

77 - Behind Right Kick Panel:



Component Location Index:
