Dash and Floor
NOTE: Different wires with the same color have been given a number suffix to distinguish them (for example, YEL/BLK1 and YEL/BLK2 are not the same).O: Related to Fuel and Emissions System.
- Connector with male terminals (double outline): View from terminal side
- Connector with female terminals (single outline): View from wire side
SOHC VTEC-E With Manual Transmission

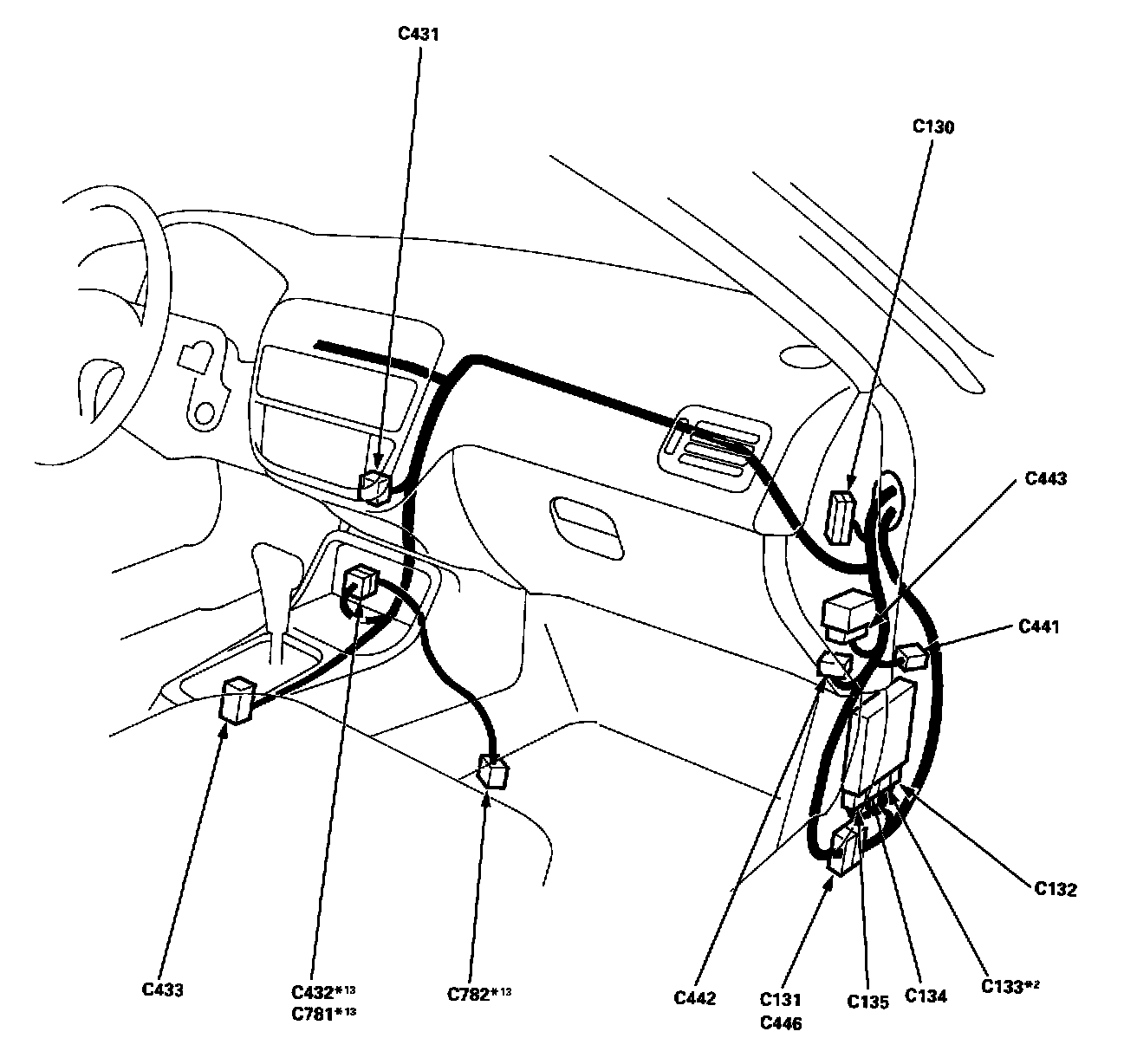

Connector Locations:

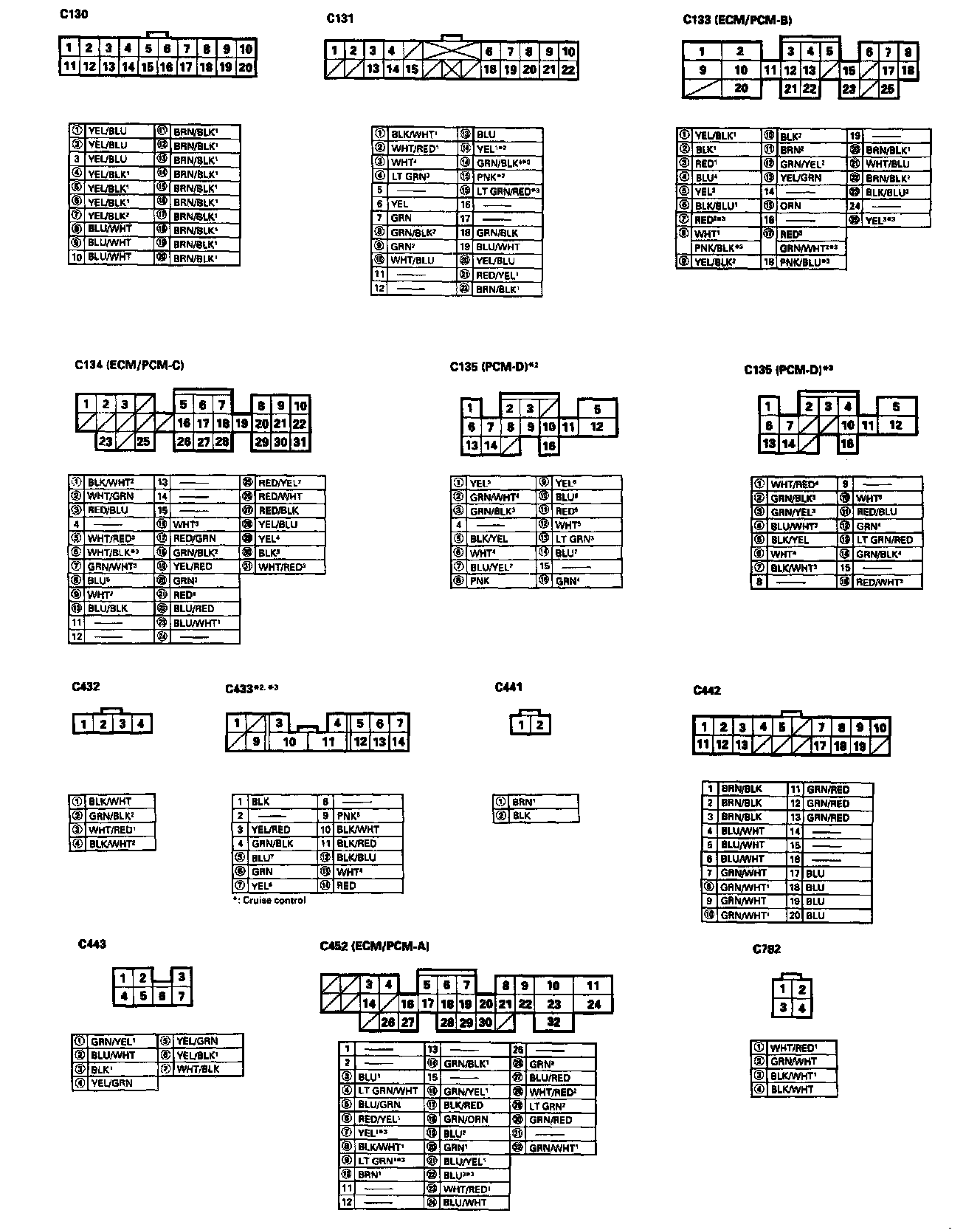

Connector Views:

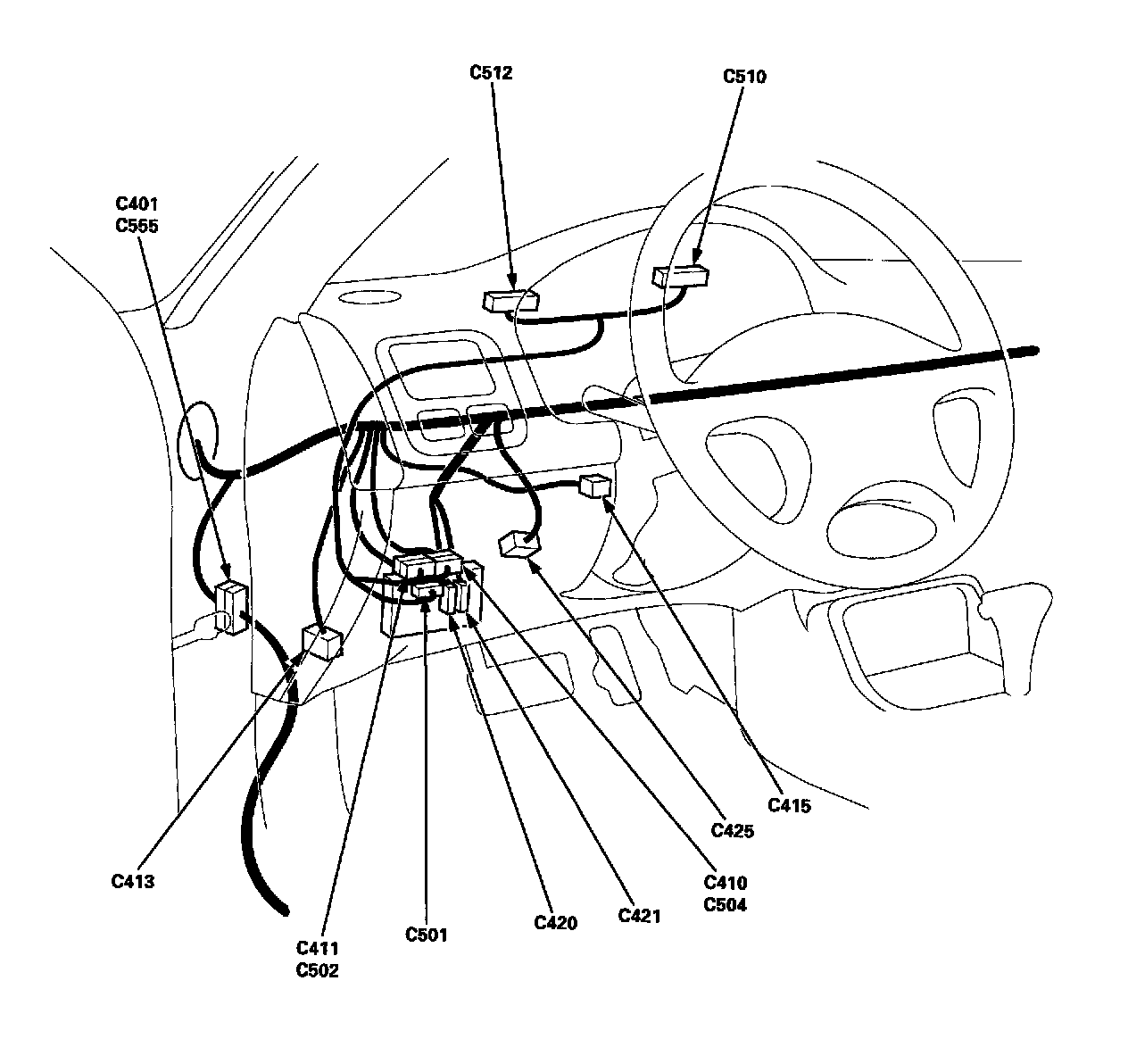

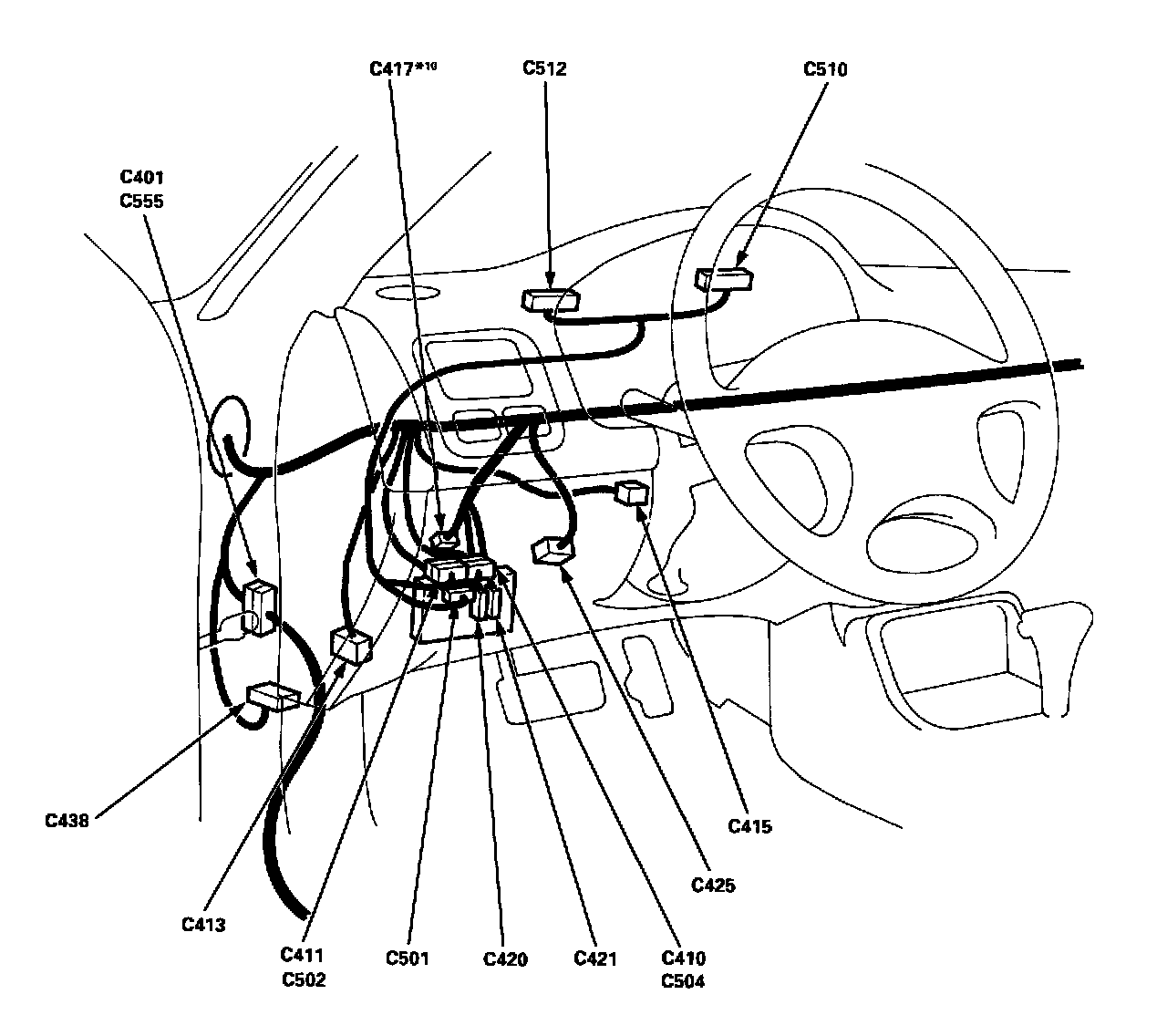

Connector Locations:

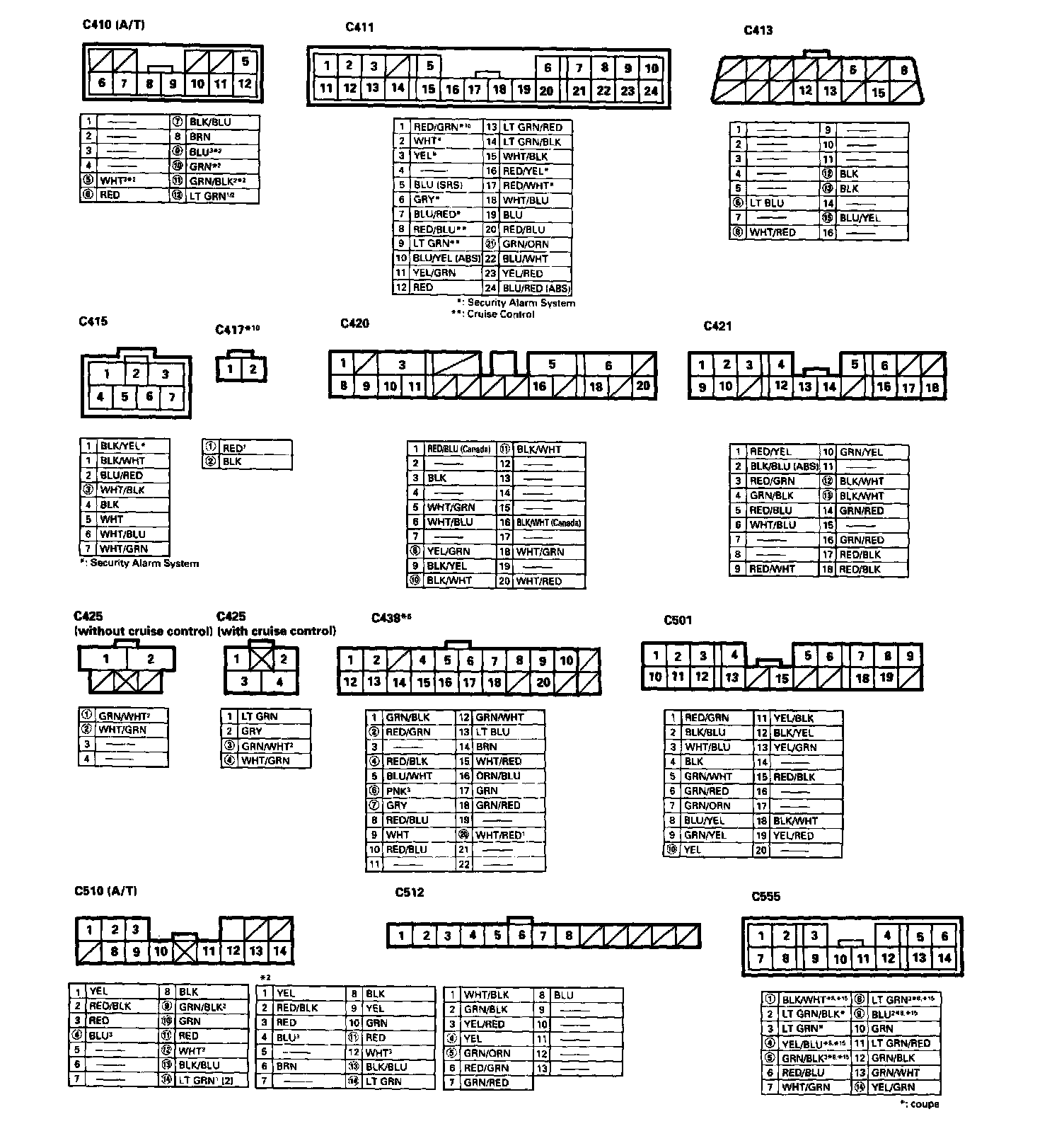

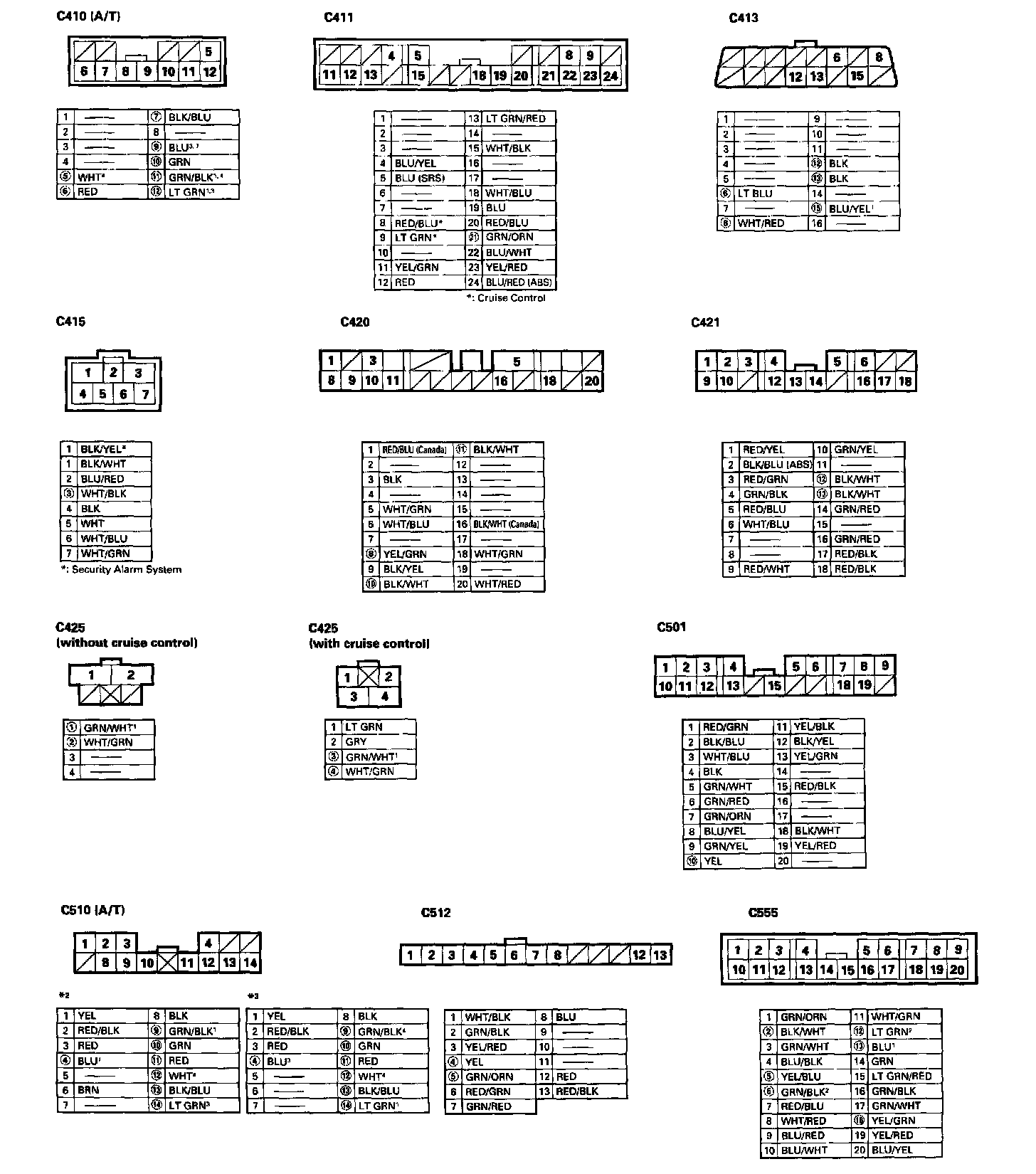

Connector Views:
All Except SOHC VTEC-E With Manual Transmission
