Power Relay Test

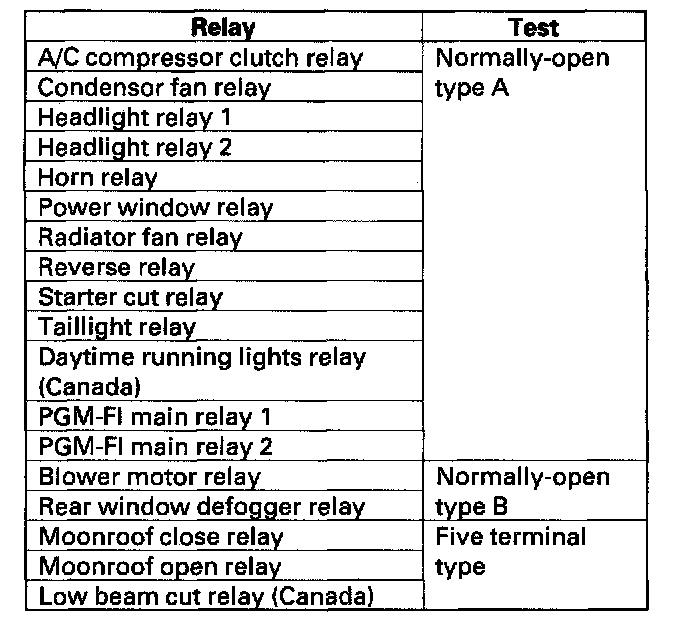

Power Relay TestUse this chart to identify the type of relay, then do the test listed for it.
NOTE: See Turn Signal/Hazard Relay input test.

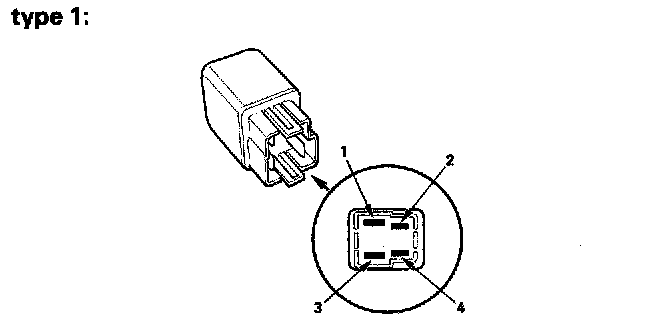

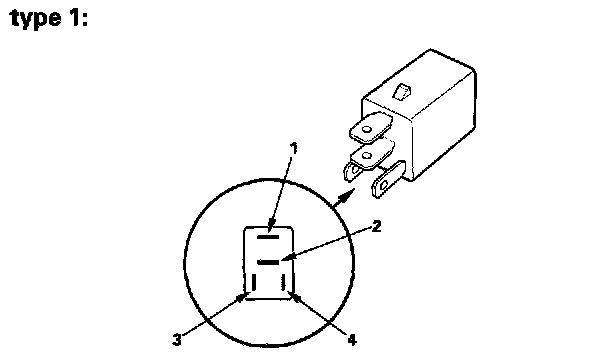

Type 1:

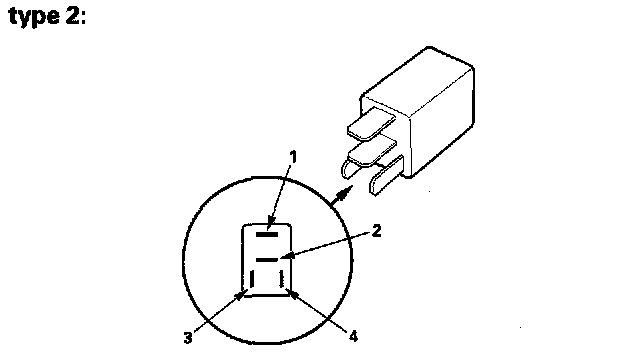

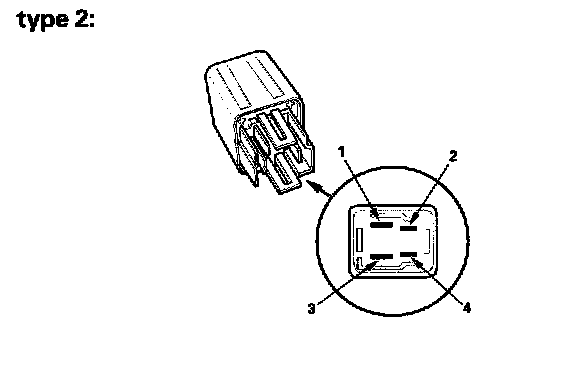

Type 2:
Normally-open type A:
Check for continuity between the terminals.
- There should be continuity between the No.1 and No.2 terminals when power and ground are connected to the No.3 and No.4 terminals.
- There should be no continuity between the No.1 and No.2 terminals when power is disconnected.
Type 1:
Type 2:
PGM-FI main relay 1
PGM-FI main relay 2

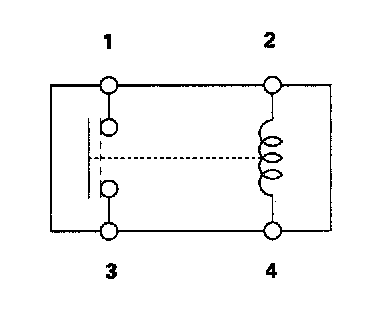

Normally-open type B:
Check for continuity between the terminals.
- There should be continuity between the No.1 and No.3 terminals when power and ground are connected to the No.2 and No.4 terminals.
- There should be no continuity between the No.1 and No.3 terminals when power is disconnected.
Rear window defogger relay

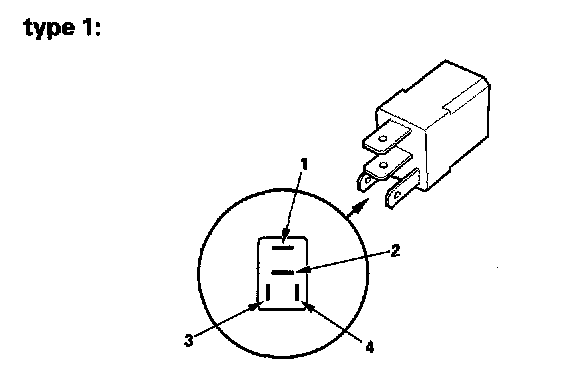

Type 1:

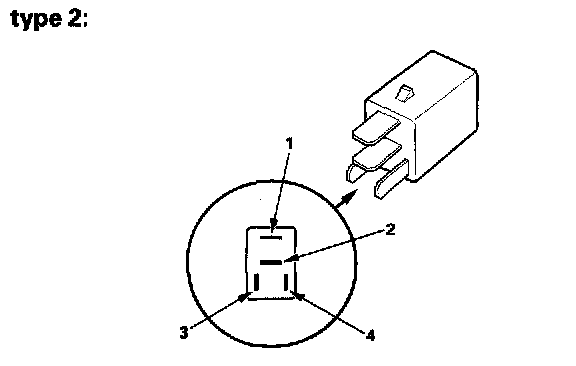

Type 2:
Blower motor relay

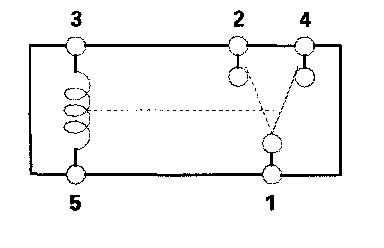

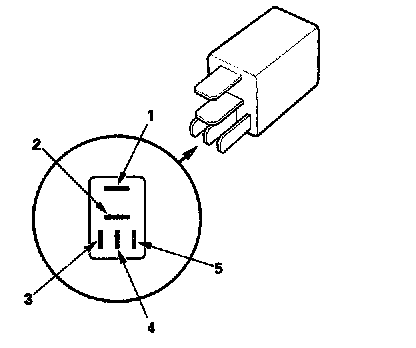

Five-terminal type
Check for continuity between the terminals.
- There should be continuity between the No.1 and No.2 terminals when power and ground are connected to the No.3 and No.5 terminals.
- There should be continuity between the No.1 and No.4 terminals when power is disconnected.
