Manual Transmission/Transaxle: Diagrams

ILLUSTRATED INDEX

Part 1 Of 2:

Part 2 Of 2:

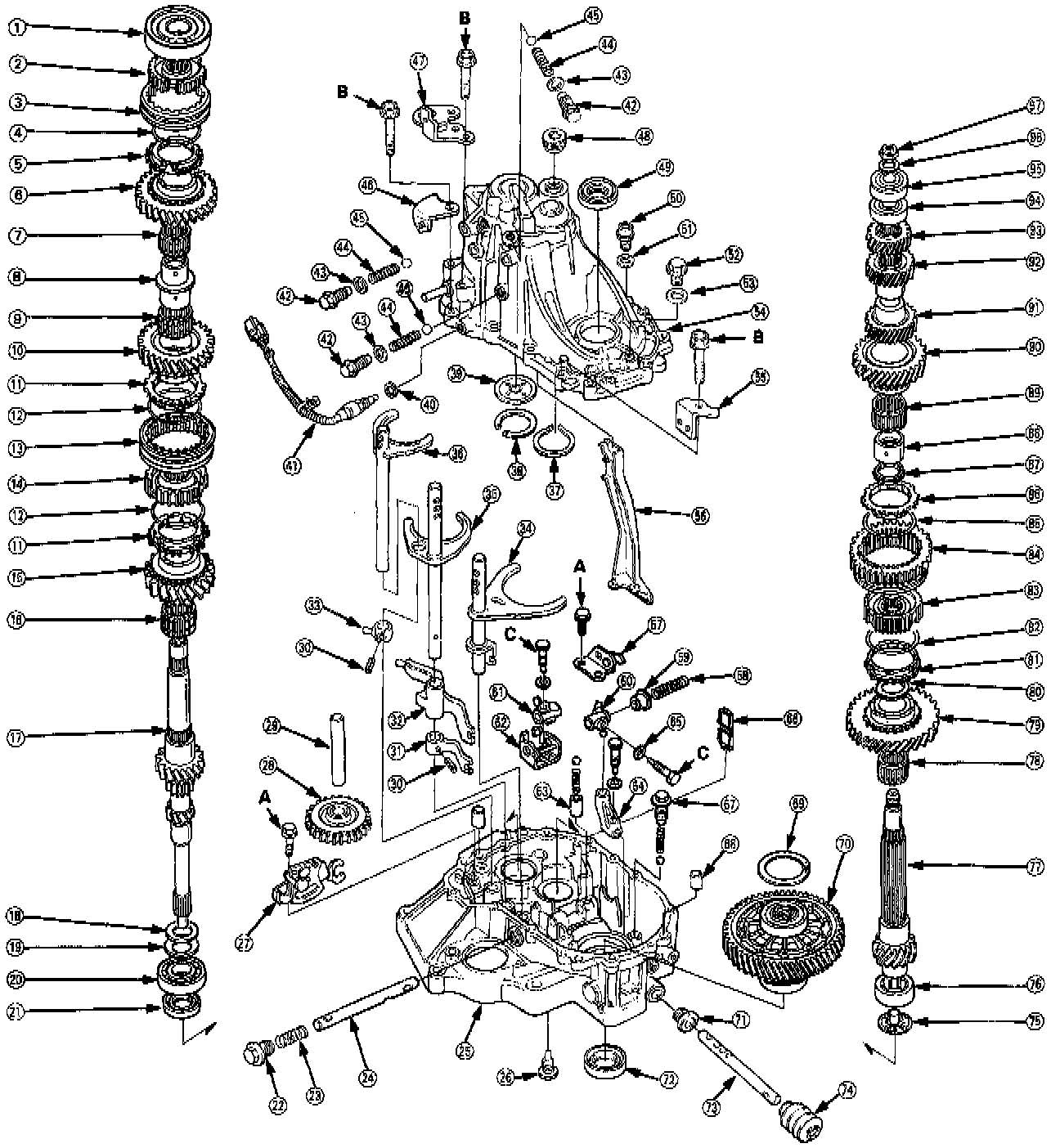

Refer to the drawing for transmission disassembly/reassembly.
Clean all the parts thoroughly in solvent and dry with compressed air.

OIL: Lubricate all the parts with oil before reassembly.

NOTE:
- This transmission uses no gaskets between the major housings; use liquid gasket (P/N 08718-0001 or 08718-0003)
- Always clean the magnet(66) whenever the transmission housing is disassembled.
- Inspect all the bearings for wear and operation.
