Power Trunk / Liftgate Lock Switch: Testing and Inspection
Trunk Lid Latch Switch Test1. Open the trunk lid.

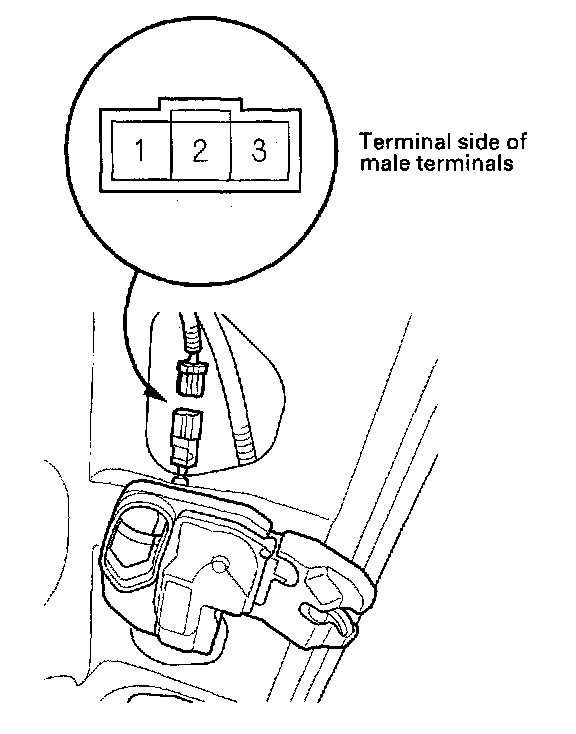

2. Disconnect the 3P connector from the trunk latch.

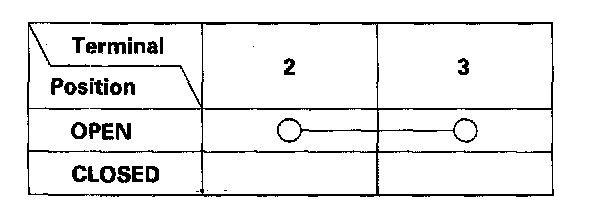

3. Check for continuity between the terminals in each trunk lid position according to the table.
4. If the continuity is not as specified, replace the trunk latch.
