Power Mirror
Power Mirror ReplacementNOTE: To avoid scratching the door, be sure to hold the mirror while removing or installing the nuts.
1. Remove these items:
- Door sash holder
- Plastic cover, as necessary

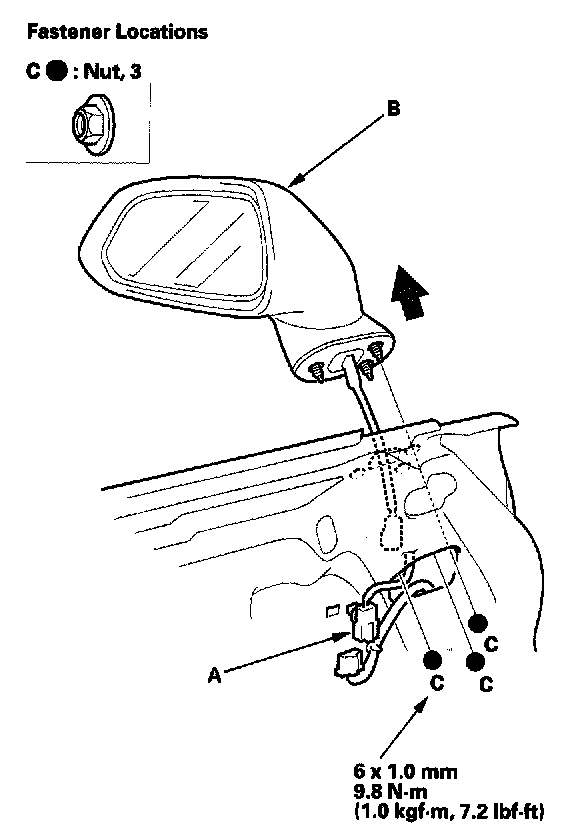

2. Disconnect the connector (A), and detach it from the door.
3. Support the mirror (B) with one hand, remove the nuts (C), then remove the mirror.
4. Install the mirror in the reverse order of removal, and note these items:
- Make sure the connector is plugged in properly.
- Adjust the position of the door sash holder.
- Check for water leaks.
- Test-drive and check for wind noise and rattles.
- When reinstalling the door panel, make sure the plastic cover is installed properly and sealed around its perimeter.
