Convertible Top Motor: Service and Repair

Convertible Top Motor Replacement

NOTE:
- Take care not to scratch the interior parts.
- Put on gloves to protect your hands.

1. Remove these items:
- Roll bar upper trim
- Corner gusset

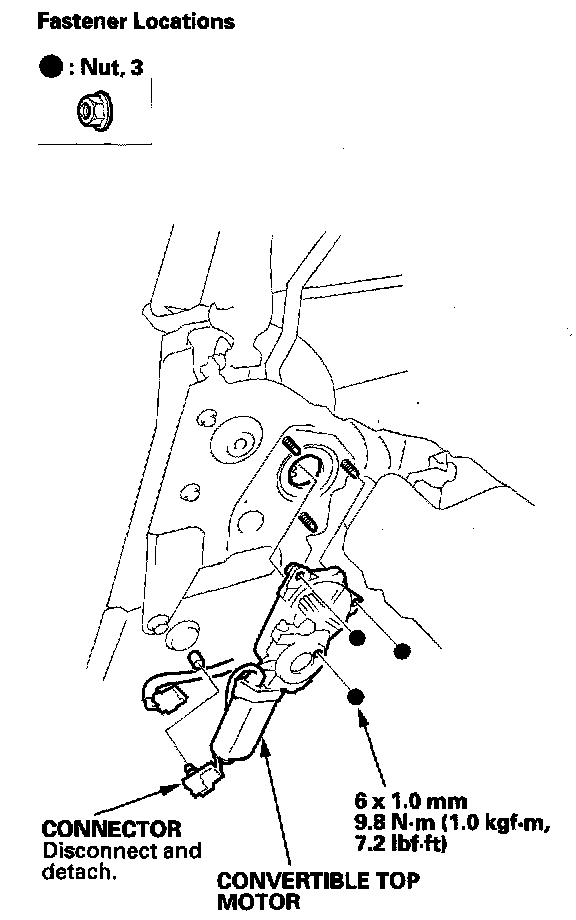

2. Remove the convertible top motor as shown.




3. Install the motor in the reverse order of removal, and note these items:
- Make sure the connector is plugged in properly.
- Apply multipurpose grease to the gear portion.
- Check the motor operation.
