Camshaft Gear Installation

Installation

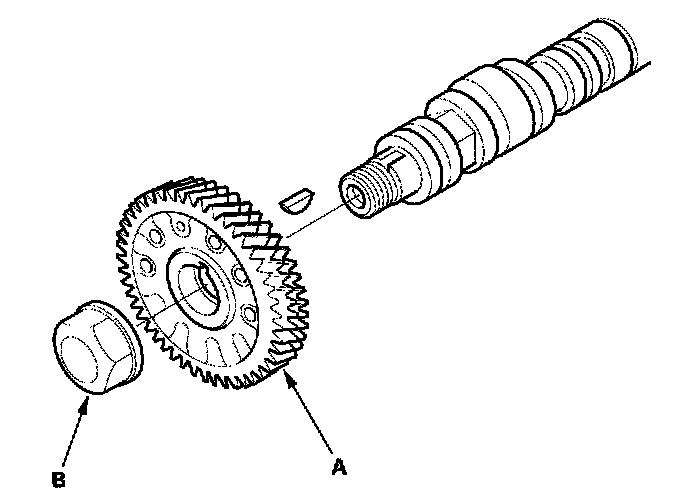

1. Install the camshaft gear (A).
2. Apply engine oil to the threads of the camshaft gear mounting nut (B), then install it.

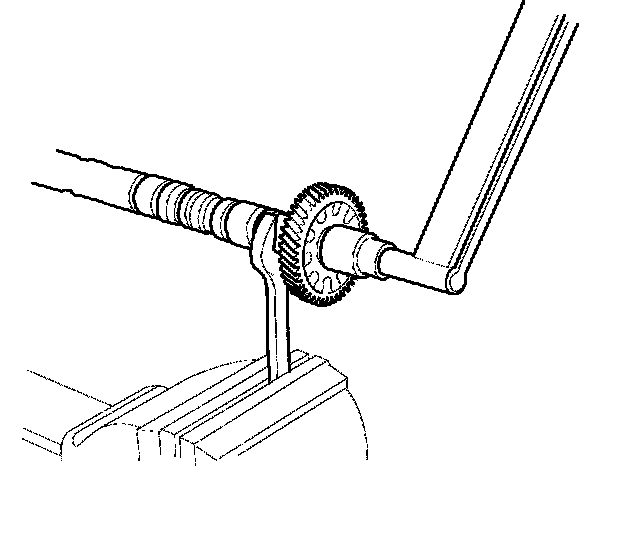

3. Hold the camshaft with an open-end wrench, then tighten the camshaft gear mounting nut.
Specified torque: 118 Nm (12.0 kgm, 86.8 ft. lbs.)
