High Beam Relay: Testing and Inspection

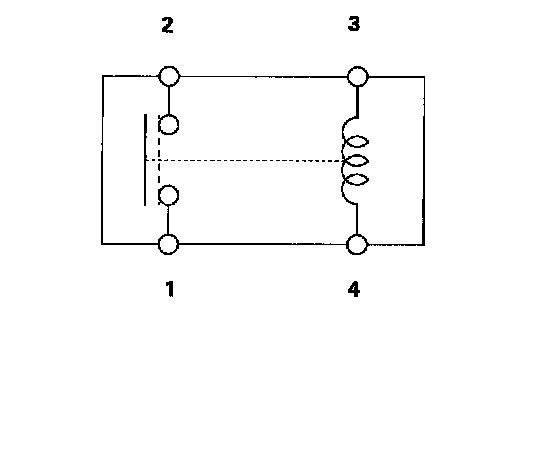

Normally-open type A:

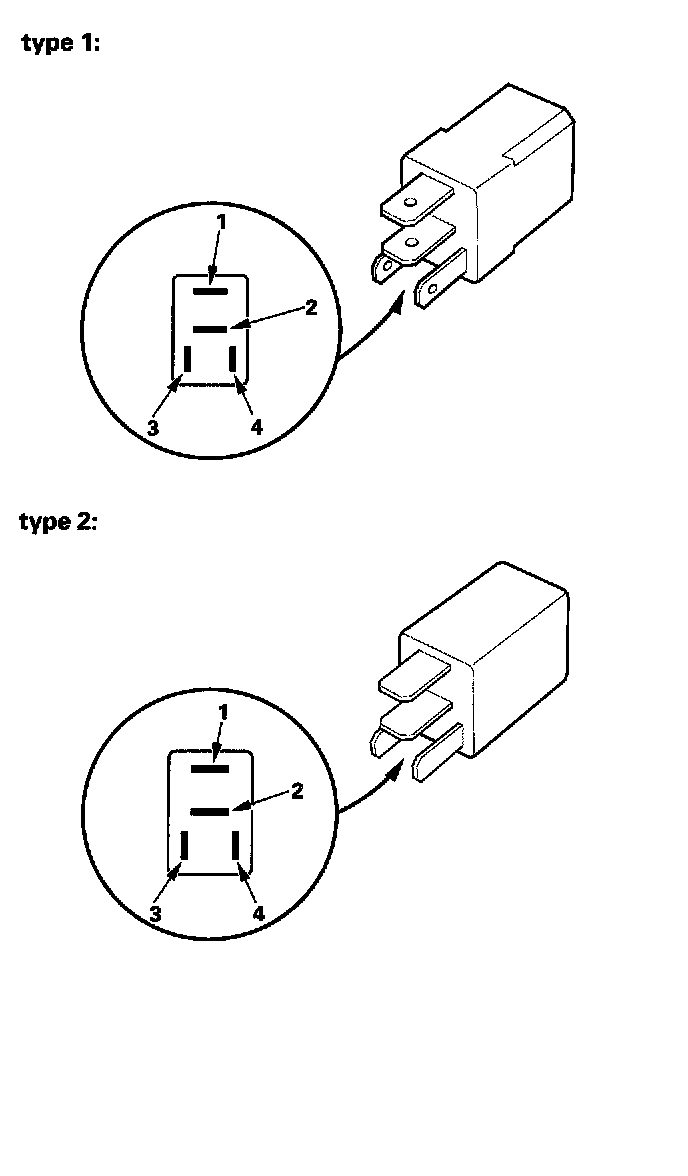

Check for continuity between the terminals.
- There should be continuity between the No.1 and No.2 terminals when power and ground are connected to the No.3 and No.4 terminals.
- There should be no continuity between the No.1 and No.2 terminals when power is disconnected.




High beam cut relay (Canada)
