Camshaft Position Sensor: Service and Repair
CMP (TDC) Sensor Replacement 1.

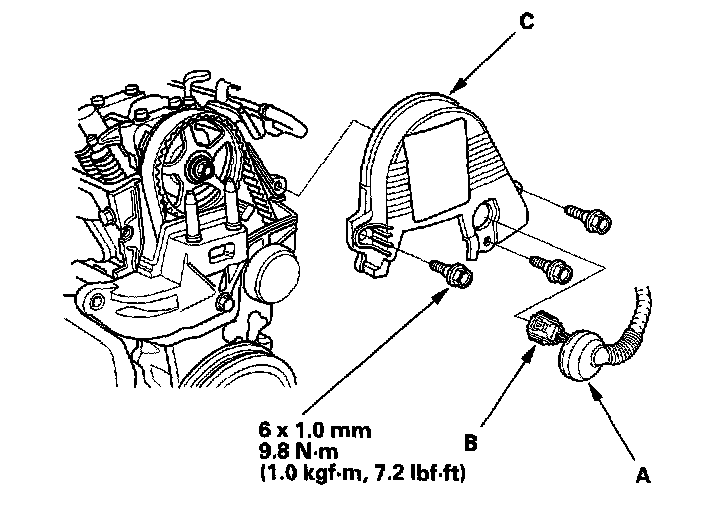

Remove the grommet (A) from the upper cover, and disconnect the camshaft position
(CMP) (top dead center
(TDC)) sensor connector (B).
2.
Remove the upper cover (C).
3.

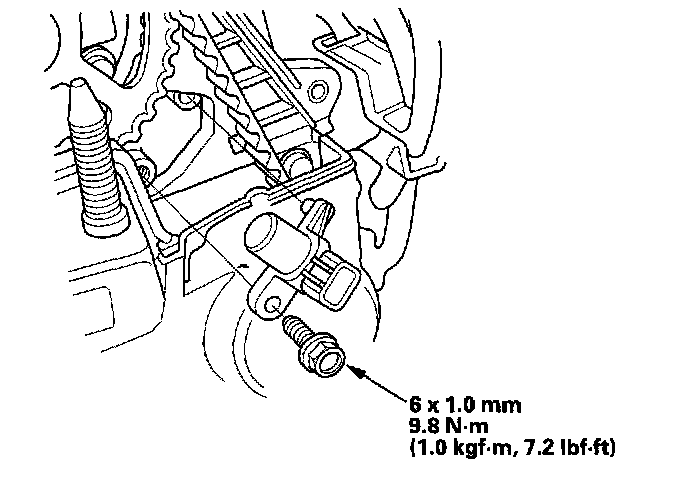

Remove the
CMP (TDC) sensor from the cylinder head.
4.
Install the
CMP (TDC) sensor in reverse order of removal.
