Vehicle Speed Sensor: Testing and Inspection

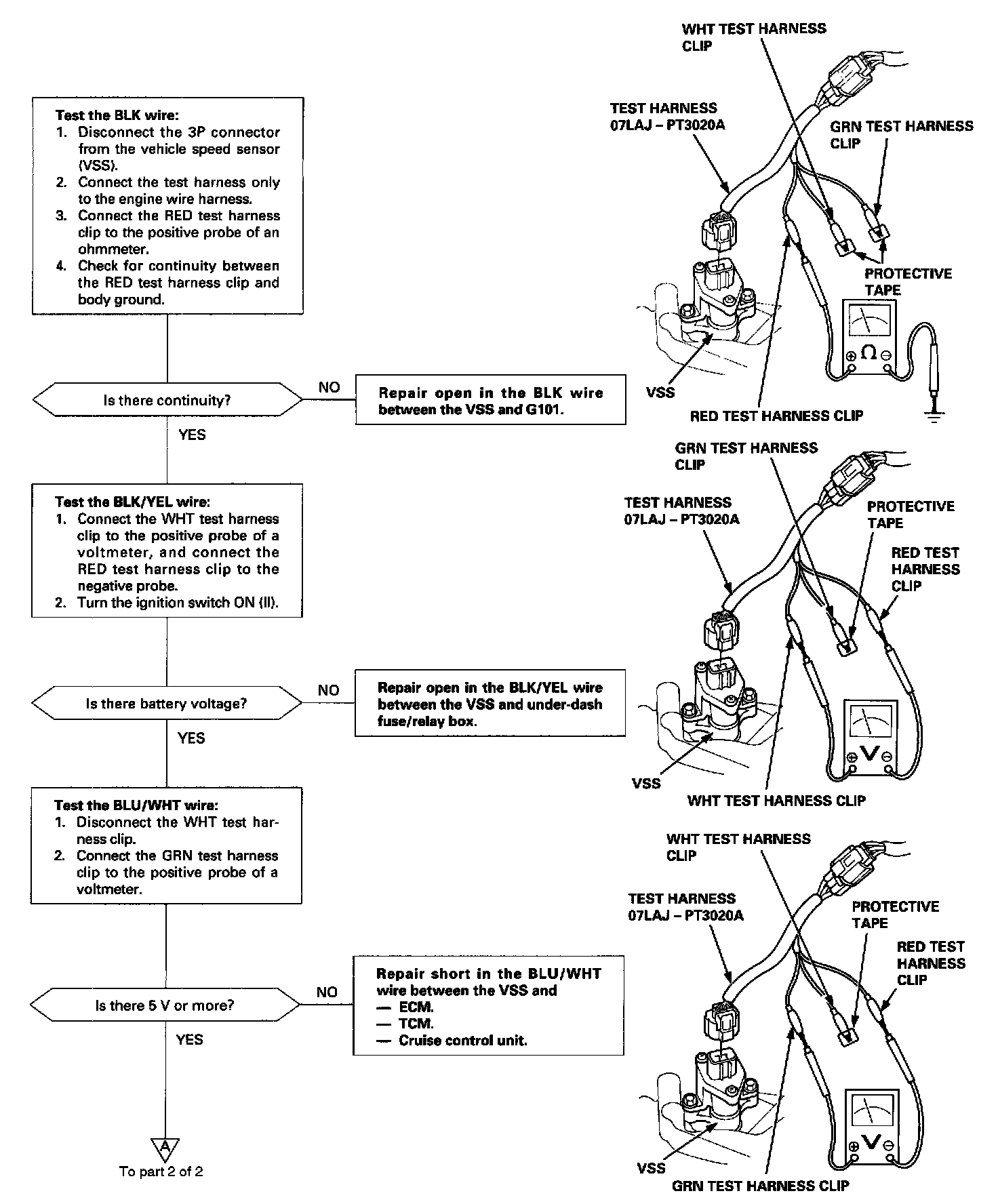

Vehicle Speed Sensor (Part 1 Of 2):

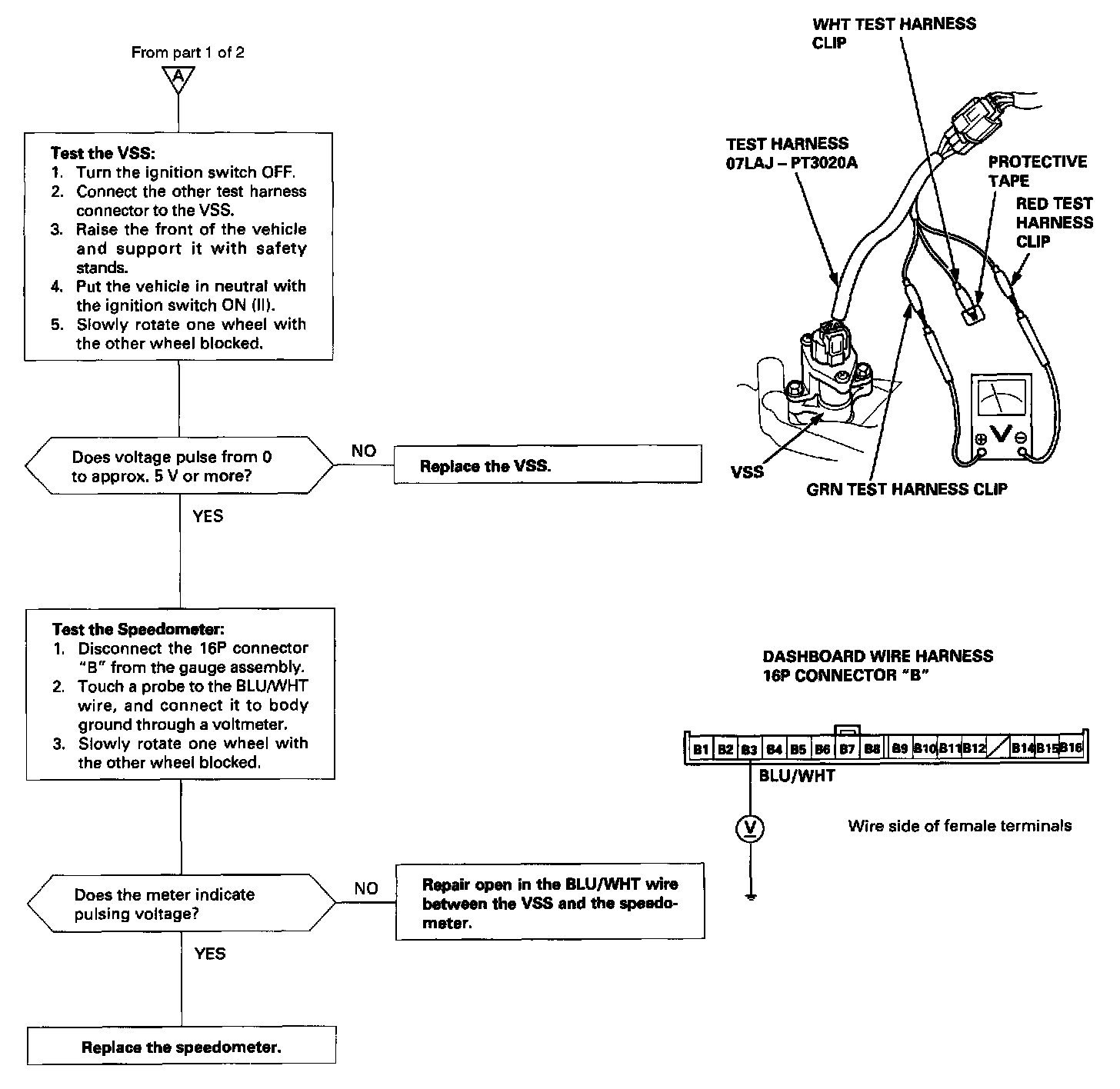

Vehicle Speed Sensor (Part 2 Of 2):
Before testing, inspect the No. 14
(15 A) fuse in the under-dash fuse/relay box.
