Intake Air System

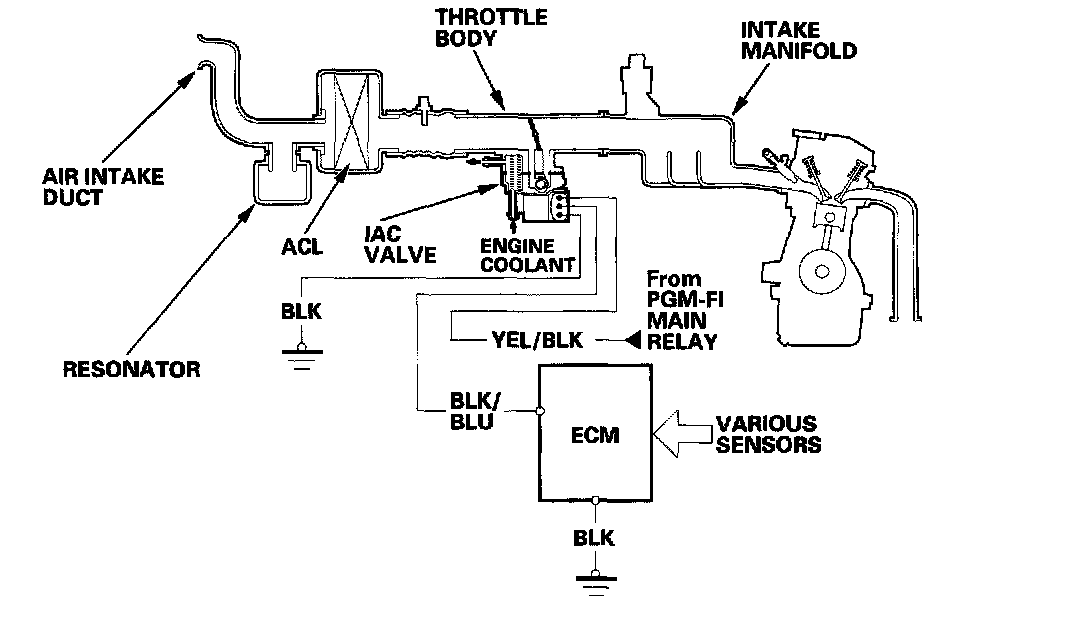

Intake Air SystemThis system supplies air for engine needs. A
resonator in the
intake air duct provides additional silencing as air is drawn into the system.

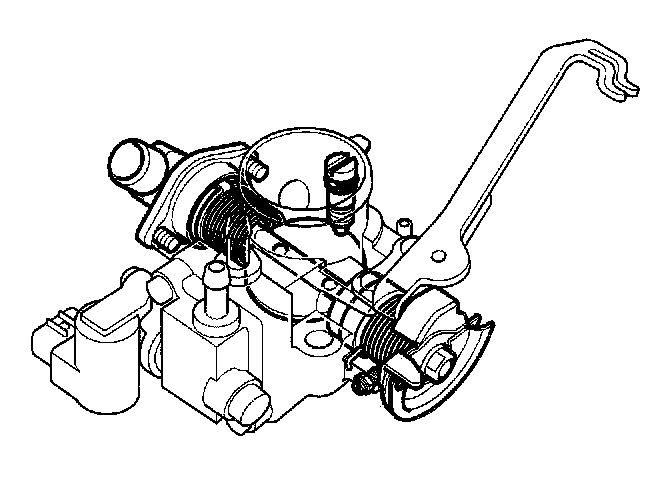

Throttle BodyThe
throttle body is a single-barrel down draft type. The lower portion of the throttle valve is heated by engine coolant from the cylinder head.
